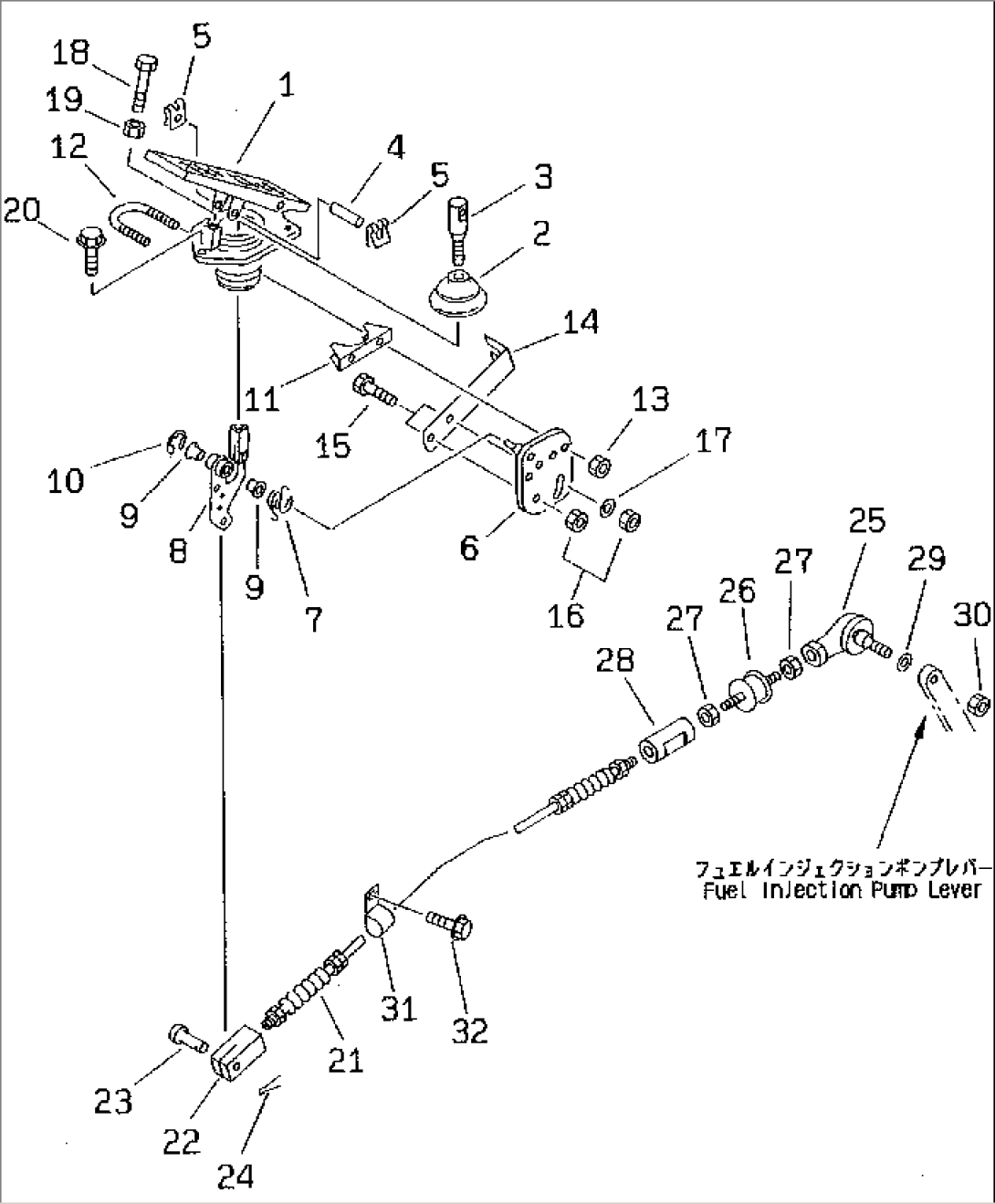

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-43-21110 | PEDAL ASS'Y | 50001- | ||
| 1 | 417-43-11210 | PEDAL | 50001- | |
| 2 | 417-43-11360 | BOOT | 50001- | |
| 3 | 417-43-11310 | ROD | 50001- | |
| 4 | 417-43-11320 | PIN | 50001- | |
| 5 | 417-43-11330 | CLIP | 50001- | |
| 6 | 417-43-11220 | PLATE | 50001- | |
| 7 | 417-43-11240 | SPRING | 50001- | |
| 8 | 417-43-11230 | LEVER | 50001- | |
| 9 | 417-43-11250 | BEARING | 50001- | |
| 10 | 417-43-11260 | CLIP | 50001- | |
| 11 | 417-43-11290 | SUPPORT | 50001- | |
| 12 | 417-43-11270 | U-BOLT | 50001- | |
| 13 | 417-43-11280 | NUT | 50001- | |
| 14 | 417-43-11340 | SUPPORT | 50001- | |
| 15 | 01010-50616 | BOLT | 50001- | |
| 16 | 417-43-11350 | NUT | 50001- | |
| 17 | 01643-30623 | WASHER | 50001- | |
| 18 | 01016-50870 | BOLT | 50001- | |
| 19 | 01580-10806 | NUT | 50001- | |
| 20 | 01435-00620 | BOLT | 50001- | |
| 21 | 418-43-11140 | CABLE | 50001- | |
| 22 | 04210-20624 | YOKE | 50001- | |
| 23 | 04205-10620 | PIN | 50001- | |
| 24 | 04050-11612 | PIN,COTTER | 50001- | |
| 25 | 04256-40615 | JOINT | 50001- | |
| 26 | 424-43-11240 | CUSHION | 50001- | |
| 27 | 01580-10605 | NUT | 50001- | |
| 28 | 421-43-11330 | ROD | 50001- | |
| 29 | 01643-30623 | WASHER | 50001- | |
| 30 | 426-09-11130 | NUT | 50001- | |
| 31 | 08036-01214 | CLIP | 50001- | |
| 32 | 01435-01220 | BOLT | 50001- |
