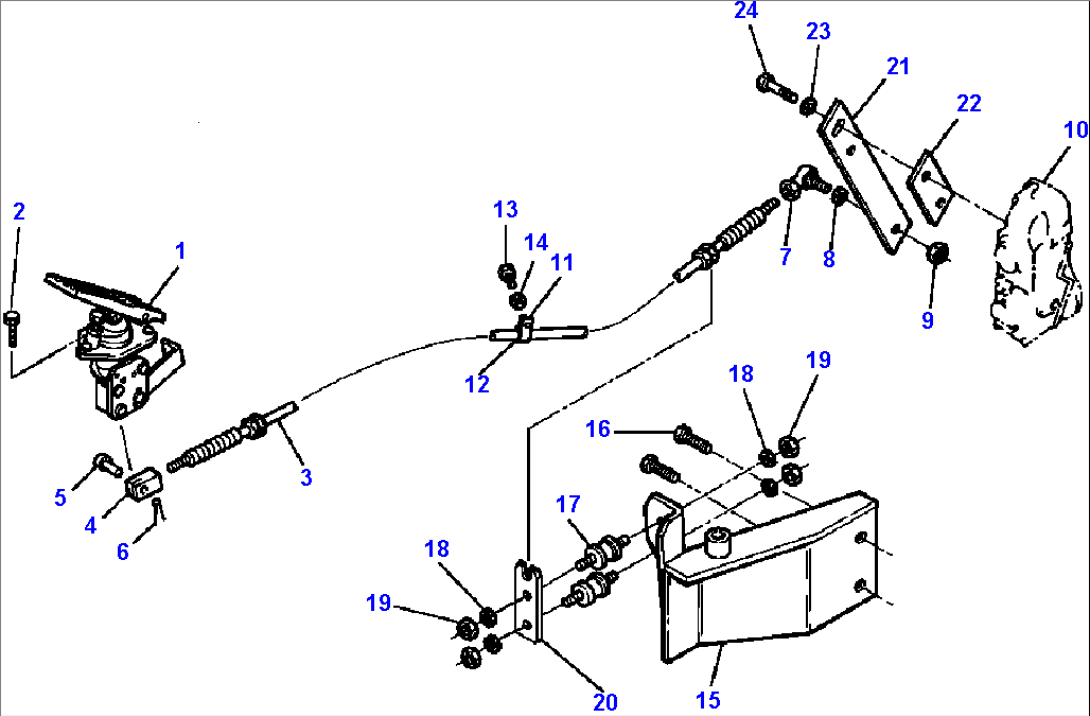

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PEDAL ASSEMBLY, ACCELERATOR (SEE PG 01-016) | |||
| 2 | 01435-00620 | BOLT | ||
| 3 | 421-43-A1110 | CABLE, THROTTLE | ||
| 4 | 04210-20624 | YOKE | ||
| 5 | 04205-10620 | PIN | ||
| 6 | 04050-11612 | PIN, COTTER | ||
| 7 | 424-09-12450 | JOINT | ||
| 8 | 01643-30623 | WASHER | ||
| 9 | 426-09-11130 | NUT | ||
| 10 | PUMP, FUEL INJECTION (SEE PG ) | |||
| 11 | 424-06-12760 | CLIP | ||
| 12 | 423-43-11560 | RUBBER | ||
| 13 | 01010-51016 | BOLT | ||
| 14 | 01643-31032 | WASHER | ||
| 15 | 423-01-A1170 | BRACKET | ||
| 16 | 01435-01020 | BOLT | ||
| 17 | 424-43-11240 | CUSHION | ||
| 18 | 424-43-11250 | WASHER | ||
| 19 | 01580-10605 | NUT | ||
| 20 | 423-43-11551 | PLATE | ||
| 21 | 423-43-A1140 | LEVER | ||
| 22 | 423-43-11540 | PLATE | ||
| 23 | 01643-30623 | WASHER | ||
| 24 | 01010-50620 | BOLT |
