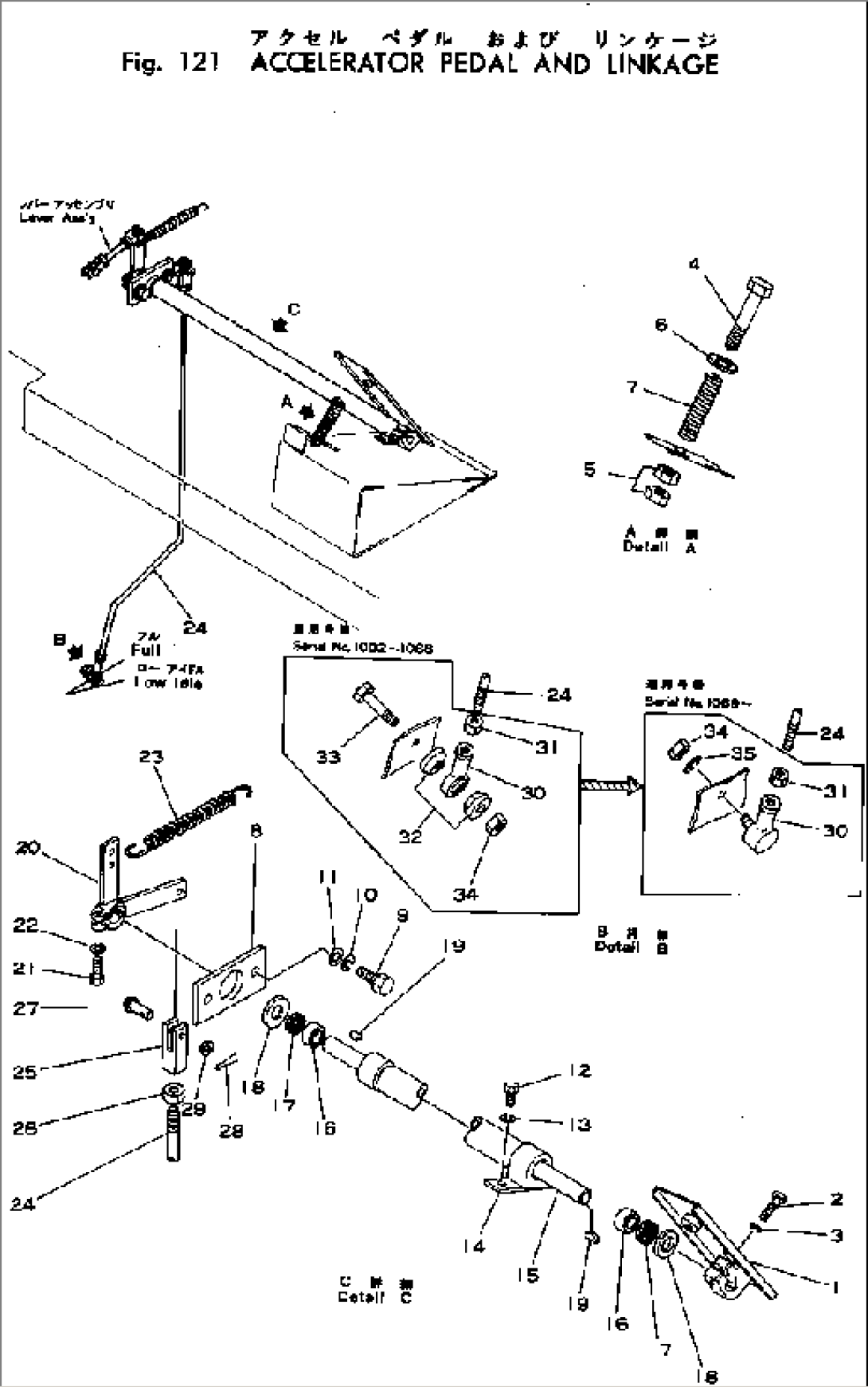

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-43-11111 | PEDAL | 1002- | |
| 2 | 01010-50830 | BOLT | 1002- | |
| 3 | 01602-20825 | WASHER | 1002- | |
| 4 | 01011-51410 | BOLT | 1002- | |
| 5 | 01580-11411 | NUT | 1002- | |
| 6 | 01643-31445 | WASHER | 1002- | |
| 7 | 569-43-11170 | SPRING | 1002- | |
| 8 | 566-43-11190 | PLATE | 1002- | |
| 9 | 01010-51025 | BOLT | 1002- | |
| 10 | 01602-21030 | WASHER | 1002- | |
| 11 | 01643-31032 | WASHER | 1002- | |
| 12 | 01010-51020 | BOLT | 1002- | |
| 13 | 01602-21030 | WASHER | 1002- | |
| 14 | 566-43-11181 | BRACKET | 1002- | |
| 15 | 566-43-11142 | SHAFT | 1002- | |
| 16 | 06120-01816 | BEARING | 1002- | |
| 17 | 06122-01803 | SEAL | 1002- | |
| 18 | 01640-21826 | WASHER | 1002- | |
| 19 | 04010-00519 | KEY | 1002- | |
| 20 | 566-43-11222 | LEVER | 1002- | |
| 21 | 01010-50830 | BOLT | 1002- | |
| 22 | 01602-20825 | WASHER | 1002- | |
| 23 | 566-43-11290 | SPRING | 1002- | |
| 24 | 569-43-11160 | ROD | 1002- | |
| 25 | 04211-20844 | YOKE | 1002- | |
| 26 | 01580-10806 | NUT | 1002- | |
| 27 | 04205-10825 | PIN | 1002- | |
| 28 | 04050-12012 | PIN | 1002- | |
| 29 | 01641-20812 | WASHER | 1002- | |
| 30 | 04256-00816 | JOINT | 1069- | |
| 30 | 04250-50847 | END | 1002-1068 | |
| 31 | 01580-10806 | NUT | 1002- | |
| 32 | 281-43-11190 | SPACER | 1002-1068 | |
| 33 | 01090-50845 | BOLT | 1002-1068 | |
| 34 | 01580-10806 | NUT | 1069- | |
| 34 | 01598-00809 | NUT | 1002-1068 | |
| 35 | 01602-20825 | WASHER | 1069- |
