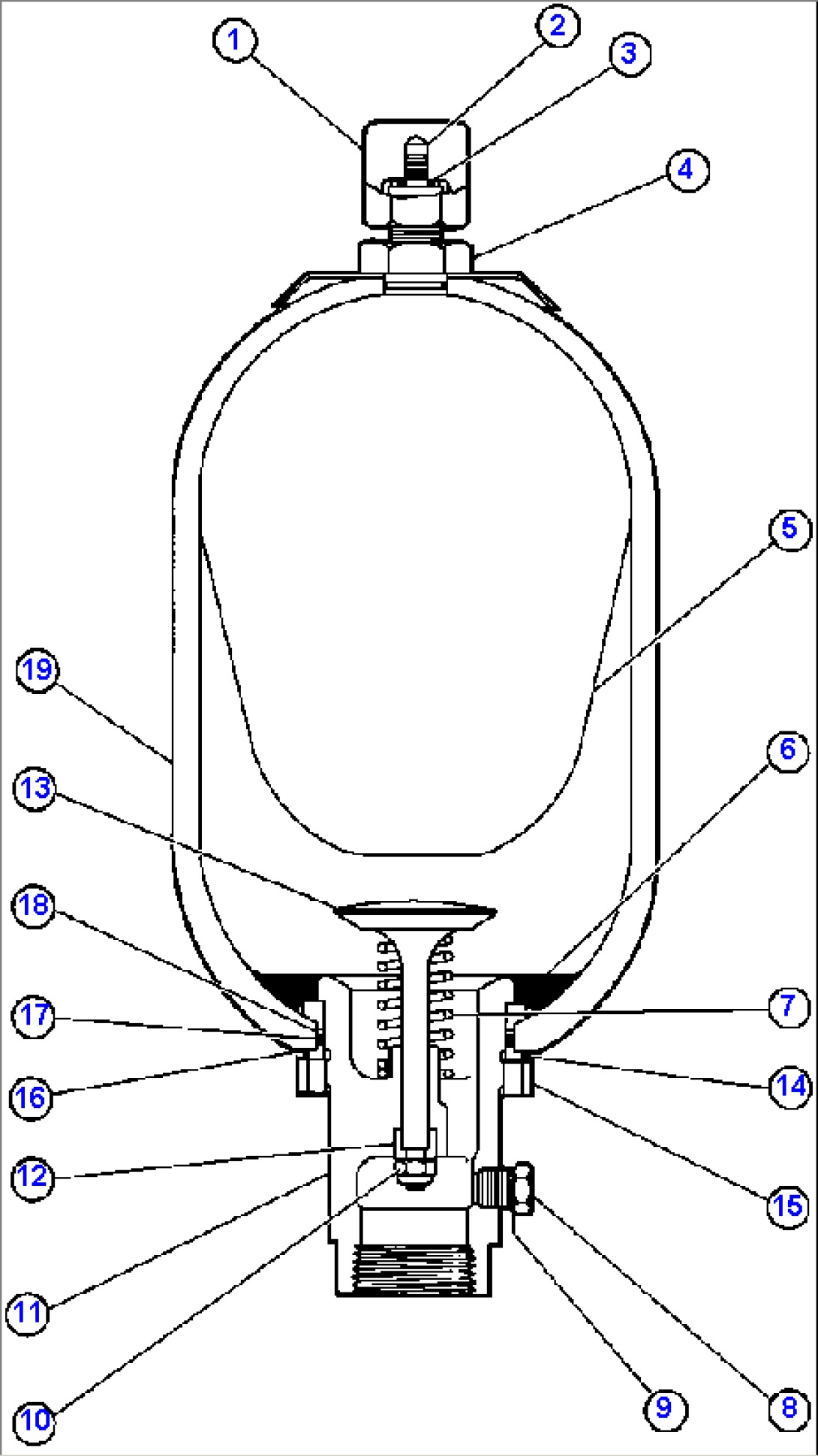

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VS7980 | GUARD, VALVE | ||
| 2 | STEM, VALVE (1) | |||
| 2 | TD7179 | CORE, VALVE | ||
| 3 | VE3880 | DYNASEAL (3) | ||
| 4 | VS7979 | NUT | ||
| 5 | BLADDER & GAS VALVE ASSEMBLY (1)/(3) | |||
| 6 | TV9949 | RING, ANTI-EXTRUSION (2) | ||
| 6 | VE3903 | PLUG & POPPET ASSEMBLY | ||
| 7 | TV9944 | SPRING | ||
| 8 | VE3905 | PLUG, BLEED | ||
| 9 | VE3908 | O-RING | ||
| 10 | TV9948 | NUT, STOP | ||
| 11 | VE3904 | PLUG, MACHINED | ||
| 12 | TV9947 | PISTON | ||
| 13 | TV9943 | POPPET | ||
| 14 | VD4374 | SPACER (2) | ||
| 15 | VD4399 | LOCKNUT (2) | ||
| 16 | VE3907 | RING, BACKUP (2)/(3) | ||
| 17 | VD4373 | O-RING (2)/(3) | ||
| 18 | VE3906 | WASHER (2)/(3) | ||
| 19 | SHELL (1) | |||
| NS|22 | NOTE: (1) NOT SERVICED SEPARATELY. | |||
| NS|23 | (2) INCLUDED IN VE3058 PORT ASSEMBLY. | |||
| NS|24 | VE1715 | (3) INCLUDED IN VE1715 REPAIR KIT. |
