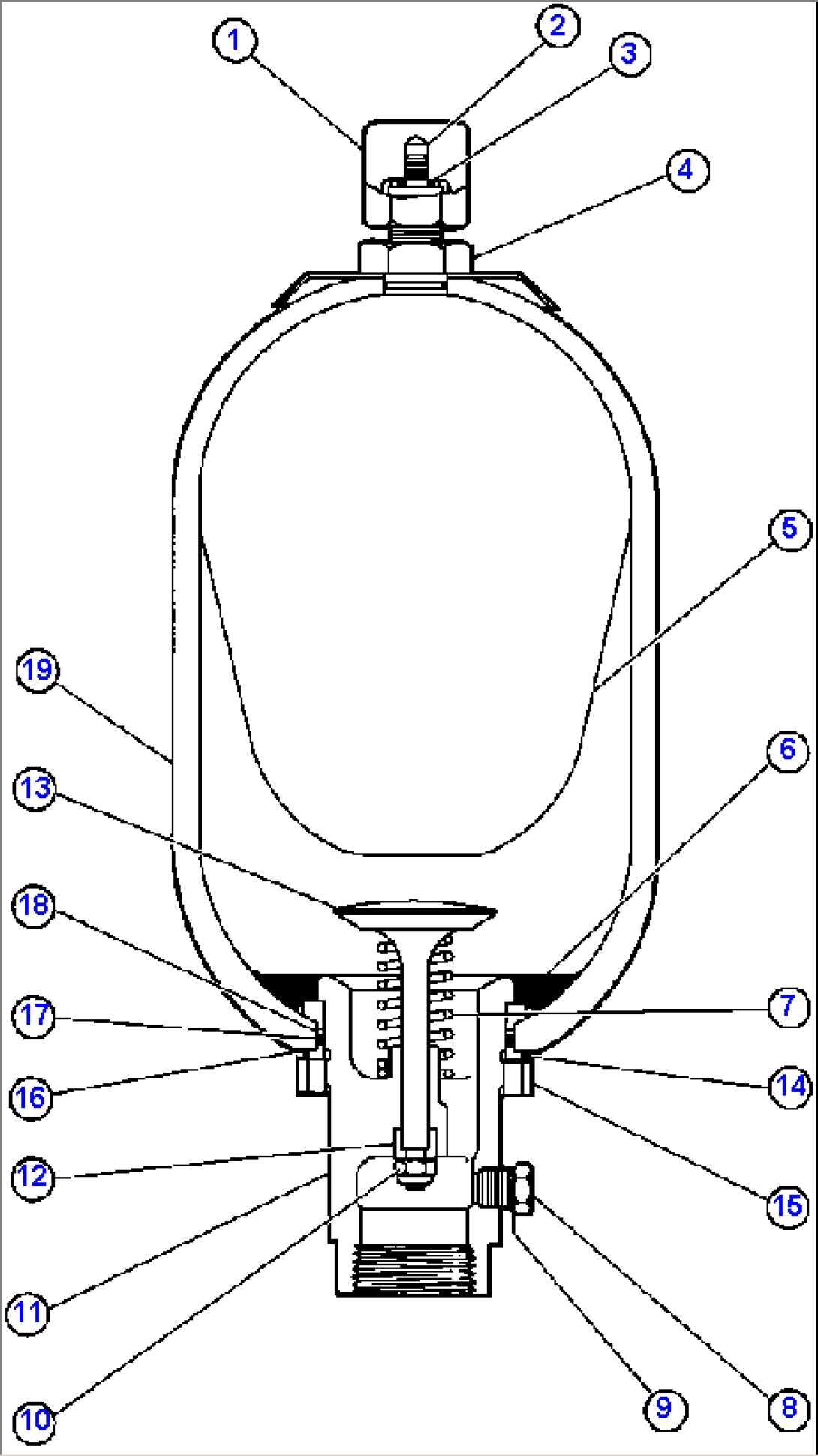

| Item | Part No. | Part Name | Qty | Serial No. |
| 0 | PB7057 | ACCUMULATOR - 1 GALLON (1) | | |
| 0 | PB7058 | ACCUMULATOR - 2.5 GALLON (2) | | |
| 1 | VS7980 | GUARD, VALVE (1)/(2) | | |
| 2 | | STEM, VALVE (7) | | |
| 2 | TD7179 | CORE, VALVE | | |
| 2 | VE3881 | STEM, VALVE (2) | | |
| 3 | VE3880 | DYNASEAL | | |
| 4 | VS7979 | NUT (1)/(2) | | |
| 5 | | BLADDER & GAS VALVE ASSEMBLY (1) | | |
| 5 | | BLADDER & GAS VALVE ASSEMBLY (2) | | |
| 6 | TV9949 | RING, ANTI-EXTRUSION (1)/(5) | | |
| 6 | VE3897 | RING, ANTI-EXTRUSION (2)/(6) | | |
| 6 | VE3903 | PLUG & POPPET ASSEMBLY (1) | | |
| 6 | VE3882 | PLUG & POPPET ASSEMBLY (2) | | |
| 7 | TV9944 | SPRING (1) | | |
| 7 | VE3893 | SPRING (2) | | |
| 8 | VE3905 | PLUG, BLEED (1) | | |
| 8 | VE3896 | PLUG, BLEED (2) | | |
| 9 | VE3908 | O-RING (1) | | |
| 9 | VE3901 | O-RING (2) | | |
| 10 | TV9948 | NUT, STOP (1) | | |
| 10 | VE3895 | NUT, STOP (2) | | |
| 11 | VE3904 | PLUG, MACHINED (1) | | |
| 11 | VE3883 | PLUG, MACHINED (2) | | |
| 12 | TV9947 | PISTON (1) | | |
| 12 | VE3894 | PISTON (2) | | |
| 13 | TV9943 | POPPET (1) | | |
| 13 | VE3892 | POPPET (2) | | |
| 14 | VD4374 | SPACER (5) | | |
| 14 | VS7976 | SPACER (6)/(2) | | |
| 15 | VD4399 | LOCKNUT (5) | | |
| 15 | VS7977 | LOCKNUT (6)/(2) | | |
| 16 | VE3907 | RING, BACKUP (3)/(5) | | |
| 16 | VE3900 | RING, BACKUP (4)/(6)/(2) | | |
| 17 | VD4373 | O-RING (3)/(5) | | |
| 17 | VE3899 | O-RING (4)/(6)/(2) | | |
| 18 | VE3906 | WASHER (3)/(5) | | |
| 18 | VE3898 | WASHER (4)/(6)/(2) | | |
| 19 | | SHELL (7) | | |
| NS|40 | VE1715 | NOTE: (3) INCLUDED IN VE1715 REPAIR KIT. | | |
| NS|41 | VE3059 | (4) INCLUDED IN VE3059 REPAIR KIT. | | |
| NS|42 | | (5) INCLUDED IN VE3058 PORT ASSEMBLY. | | |
| NS|43 | | (6) INCLUDED IN VE3057 PORT ASSEMBLY. | | |
| NS|44 | | (7) NOT SERVICED SEPARATELY. | | |
