| Item | Part No. | Part Name | Qty | Serial No. |

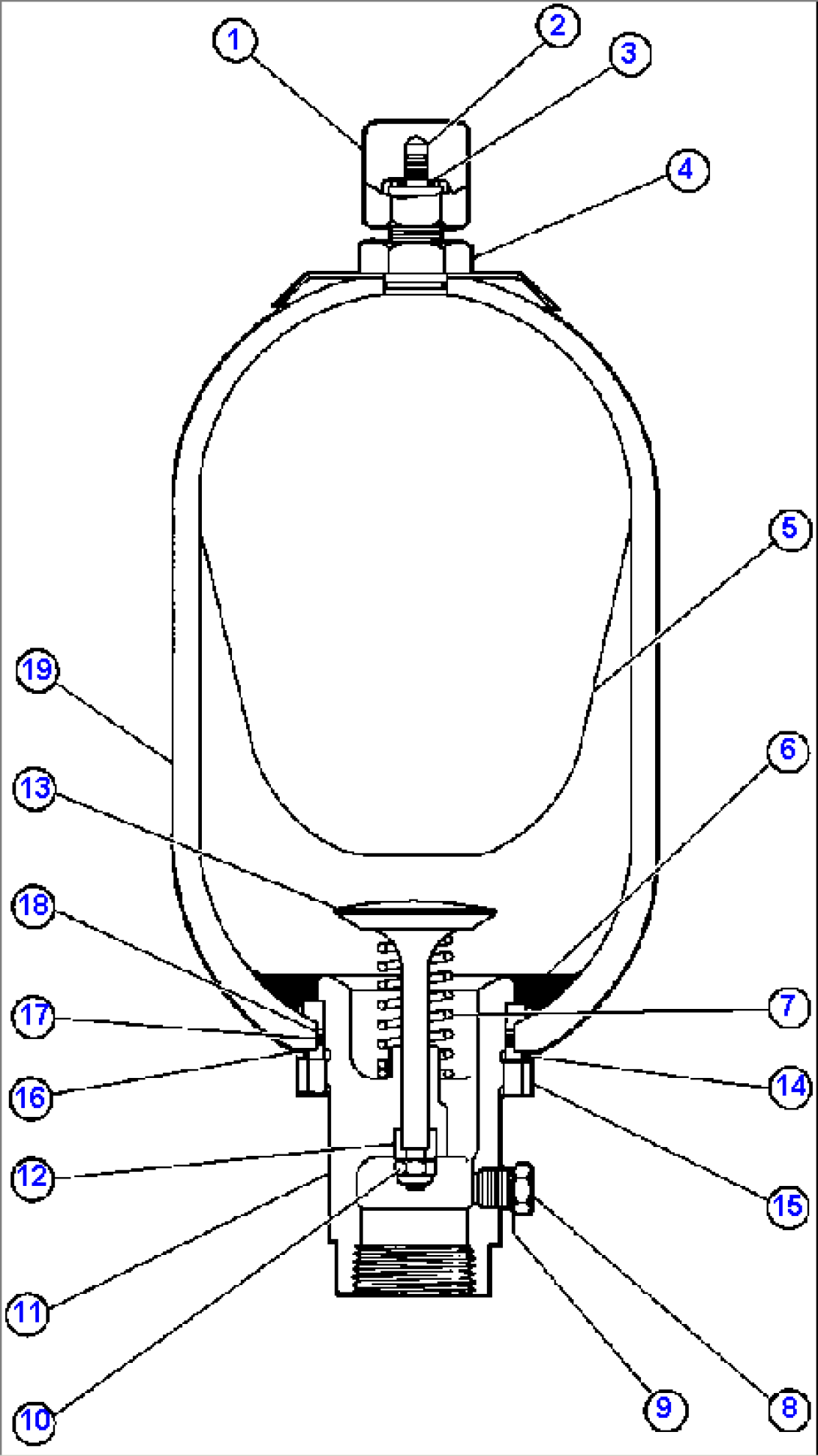

| 0 | PB9275 | ACCUMULATOR - 1 GAL | ||
| 1 | VS7980 | GUARD, VALVE | ||
| 2 | VE8390 | CORE, VALVE (2) | ||
| 3 | VE3880 | DYNASEAL (2) | ||
| 4 | VS7979 | NUT | ||
| 5 | BF1263 | BLADDER ASSEMBLY (2) | ||
| 6 | BF1264 | RING, ANTI-EXTRUSION (1) | ||
| 6 | VE3903 | PLUG & POPPET ASSEMBLY | ||
| 7 | TV9944 | SPRING | ||
| 8 | VE3905 | PLUG, BLEED | ||
| 9 | VE3908 | O-RING | ||
| 10 | TV9948 | NUT, STOP | ||
| 11 | VE3904 | PLUG, MACHINED | ||
| 12 | TV9947 | PISTON | ||
| 13 | TV9943 | POPPET | ||
| 14 | VD4374 | SPACER (1) | ||
| 15 | VD4399 | LOCKNUT (1) | ||
| 16 | VE3907 | RING, BACKUP (1) | ||
| 17 | VE5912 | O-RING (1)/(2) | ||
| 18 | VE3906 | WASHER (1)/(2) | ||
| 19 | VE5909 | SHELL | ||
| NS|22 | NOTE: (1) INCLUDED IN VE3058 PORT ASSEMBLY. | |||
| NS|23 | BF1267 | (2) INCLUDED IN BF1267 REPAIR KIT. |
