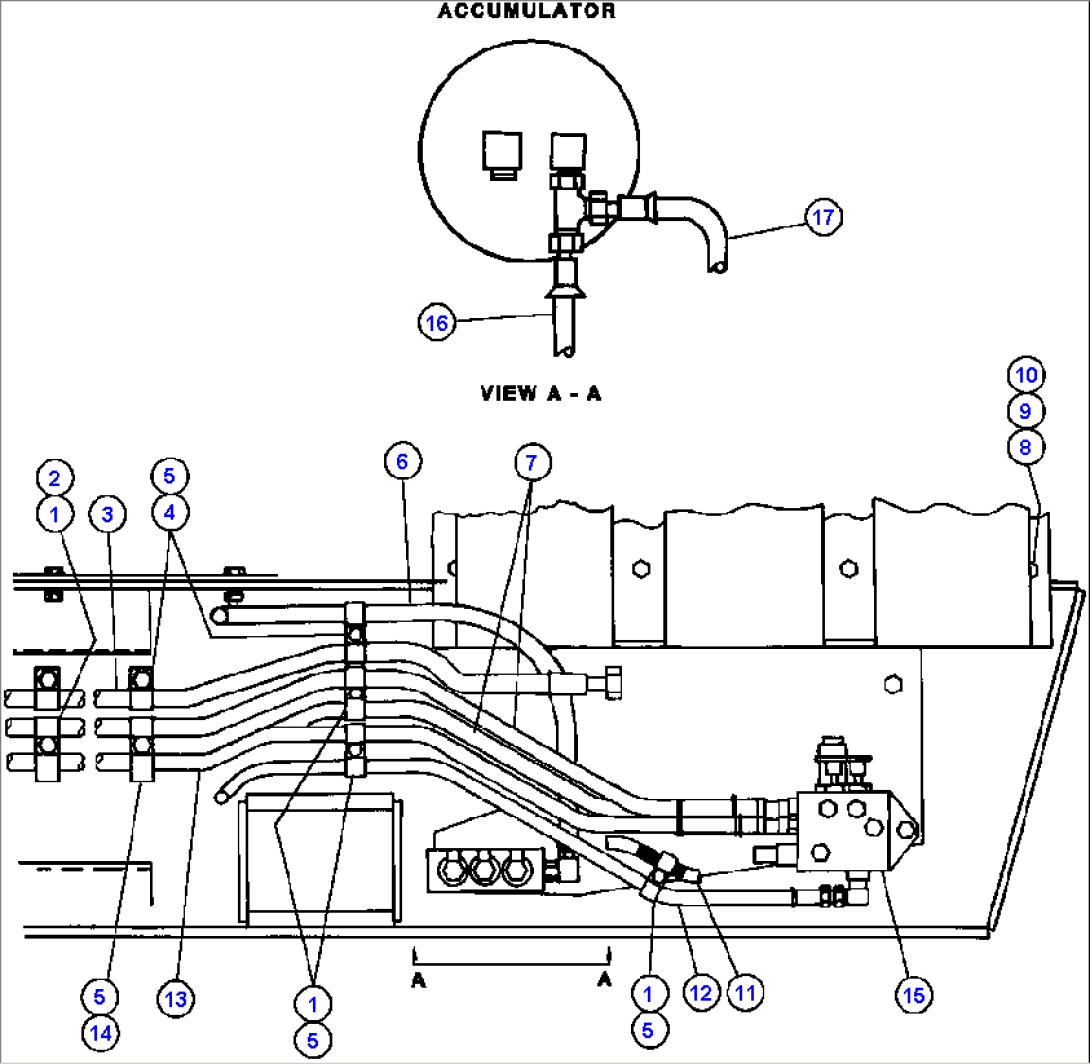

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VN9907 | CLAMP | ||
| 2 | VP6674 | SPACER | ||
| 3 | HA6498 | HOSE | ||
| 4 | TF6925 | CLAMP | ||
| 5 | TG9225 | LOCKNUT - 3/8" - 16NC | ||
| 6 | HA6720 | HOSE | ||
| 7 | HA5824 | HOSE | ||
| 8 | C1629 | CAPSCREW - 5/8" - 11NC X 1 3/4" | ||
| 9 | C1541 | LOCKWASHER - 5/8" | ||
| 10 | C1550 | FLAT WASHER - 5/8" | ||
| 11 | YA1982 | HARNESS, HYD (SEE FIG 15512) | ||
| 12 | HA6729 | HOSE | ||
| 13 | HA6724 | HOSE | ||
| 14 | WA4649 | CLAMP | ||
| 15 | PB7568 | MODULE, LOW PRESSURE DETECTION (SEE INDEX) | ||
| 16 | HA6498 | HOSE | ||
| 17 | HA6822 | HOSE |
