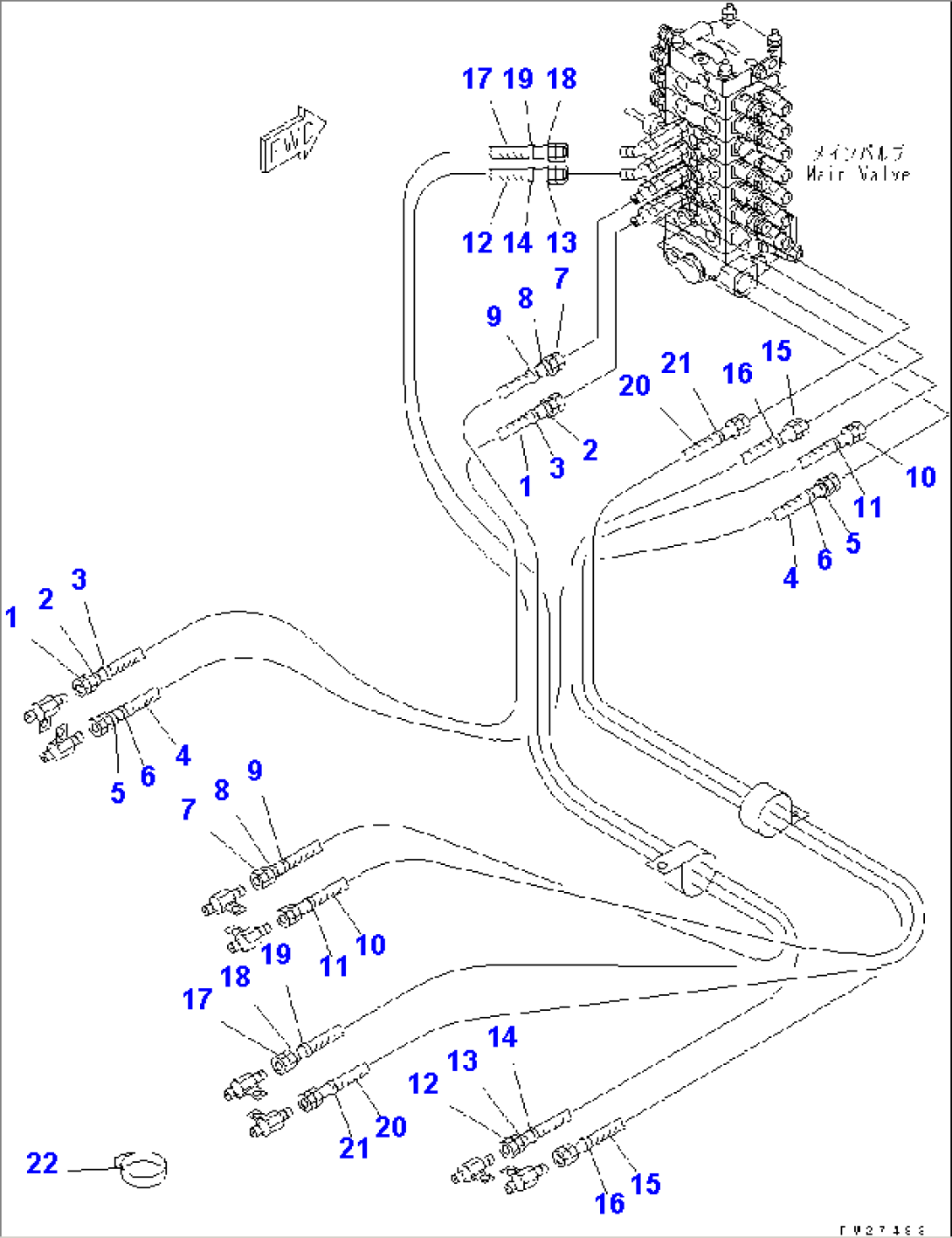

| Item | Part No. | Part Name | Qty | Serial No. |
| 8288-62-1421 | HOSE ASS'Y | 1001- | ||
| 1 | 07123-00406 | HOSE | 1001- | |
| 2 | 20Y-62-22850 | BAND¤ GREEN | 1001- | |
| 3 | 20Y-62-22840 | BAND¤ BLACK | 1001- | |
| 4 | 07123-00407 | HOSE | 1001- | |
| 5 | 20Y-62-22850 | BAND¤ GREEN | 1001- | |
| 6 | 20Y-62-22830 | BAND¤ WHITE | 1001- | |
| 7 | 07123-00412 | HOSE | 1001- | |
| 8 | 20Y-62-22820 | BAND¤ BLUE | 1001- | |
| 9 | 20Y-62-22810 | BAND¤ YELLOW | 1001- | |
| 10 | 07123-00414 | HOSE | 1001- | |
| 11 | 20Y-62-22820 | BAND¤ BLUE | 1001- | |
| 12 | 07123-00414 | HOSE | 1001- | |
| 13 | 20Y-62-22830 | BAND¤ WHITE | 1001- | |
| 14 | 20Y-62-22810 | BAND¤ YELLOW | 1001- | |
| 15 | 07123-00416 | HOSE | 1001- | |
| 16 | 20Y-62-22830 | BAND¤ WHITE | 1001- | |
| 17 | 07123-00414 | HOSE | 1001- | |
| 18 | 20Y-62-22840 | BAND¤ BLACK | 1001- | |
| 19 | 20Y-62-22810 | BAND¤ YELLOW | 1001- | |
| 20 | 07123-00415 | HOSE | 1001- | |
| 21 | 20Y-62-22840 | BAND¤ BLACK | 1001- | |
| 22 | 08034-00834 | BAND,(FOR SHIPPING) | 1001- |
