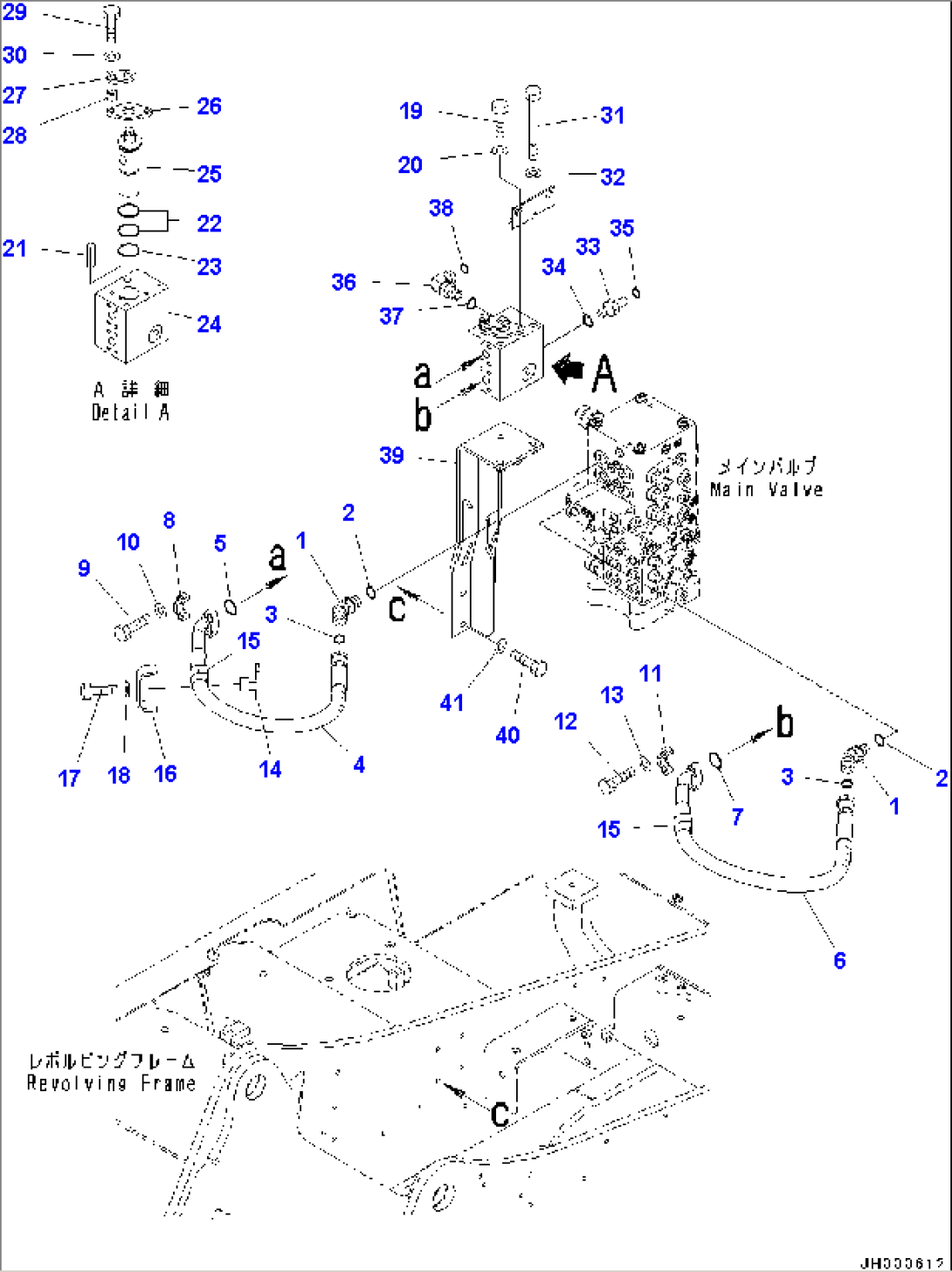

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02783-10628 | Elbow | C30001- | |
| 2 | 07002-12434 | O-ring | C30001- | |
| 3 | 02896-11018 | O-ring | C30001- | |
| 4 | 203-62-12271 | Hose | C30001- | |
| 5 | 07000-13025 | O-ring | C30001- | |
| 6 | 203-62-12181 | Hose | C30001- | |
| 7 | 07000-13025 | O-ring | C30001- | |
| 8 | 07371-30640 | Flange | C30001- | |
| 9 | 07372-21035 | Bolt | C30001- | |
| 10 | 01643-51032 | Washer | C30001- | |
| 11 | 07371-30640 | Flange | C30001- | |
| 12 | 07372-21035 | Bolt | C30001- | |
| 13 | 01643-51032 | Washer | C30001- | |
| 14 | 203-62-65241 | Clamp | C30001- | |
| 15 | 203-62-43410 | Cushion | C30001- | |
| 16 | 203-62-61240 | Plate | C30001- | |
| 17 | 01010-81025 | Bolt | C30001- | |
| 18 | 01643-31032 | Washer | C30001- | |
| 203-62-65102 | Valve Assembly | C30001- | ||
| 19 | 01010-81025 | Bolt | C30001- | |
| 20 | 01643-31032 | Washer | C30001- | |
| 21 | 04025-00412 | Pin, Spring | C30001- | |
| 22 | 07000-13042 | O-ring | C30001- | |
| 23 | 07000-13048 | O-ring | C30001- | |
| 24 | Block | C30001- | ||
| 25 | Rotor | C30001- | ||
| 26 | 20Y-970-3350 | Flange | C30001- | |
| 27 | 203-62-65630 | Plate | C30001- | |
| 28 | 201-03-29160 | Spacer | C30001- | |
| 29 | 01010-81050 | Bolt | C30001- | |
| 30 | 01643-31032 | Washer | C30001- | |
| 31 | 01011-81275 | Bolt | C30001- | |
| 32 | 01643-31232 | Washer | C30001- | |
| 33 | 02781-00628 | Union | C30001- | |
| 34 | 07002-12434 | O-ring | C30001- | |
| 35 | 02896-11018 | O-ring | C30001- | |
| 36 | 02782-10628 | Elbow | C30001- | |
| 37 | 07002-12434 | O-ring | C30001- | |
| 38 | 02896-11018 | O-ring | C30001- | |
| 39 | 203-62-11831 | Bracket | C30001- | |
| 40 | 01010-81230 | Bolt | C30001- | |
| 41 | 01643-31232 | Washer | C30001- |
