| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 426-U70-1110 | WEIGHT,COUNTER | 10001- | |
| 2 | 428-975-1111 | BOLT | 10001- | |
| 3 | 426-09-11510 | WASHER | 10001- | |
| 4 | 01011-62490 | BOLT | 10001- | |
| 5 | 426-46-13121 | PIN | 10001- | |
| 6 | 425-46-13130 | PIN,LINCH | 10001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa700 1 s/n 10001 up
- Frame and guard
- Additional counter weight (for high lift)
Поиск по каталогу

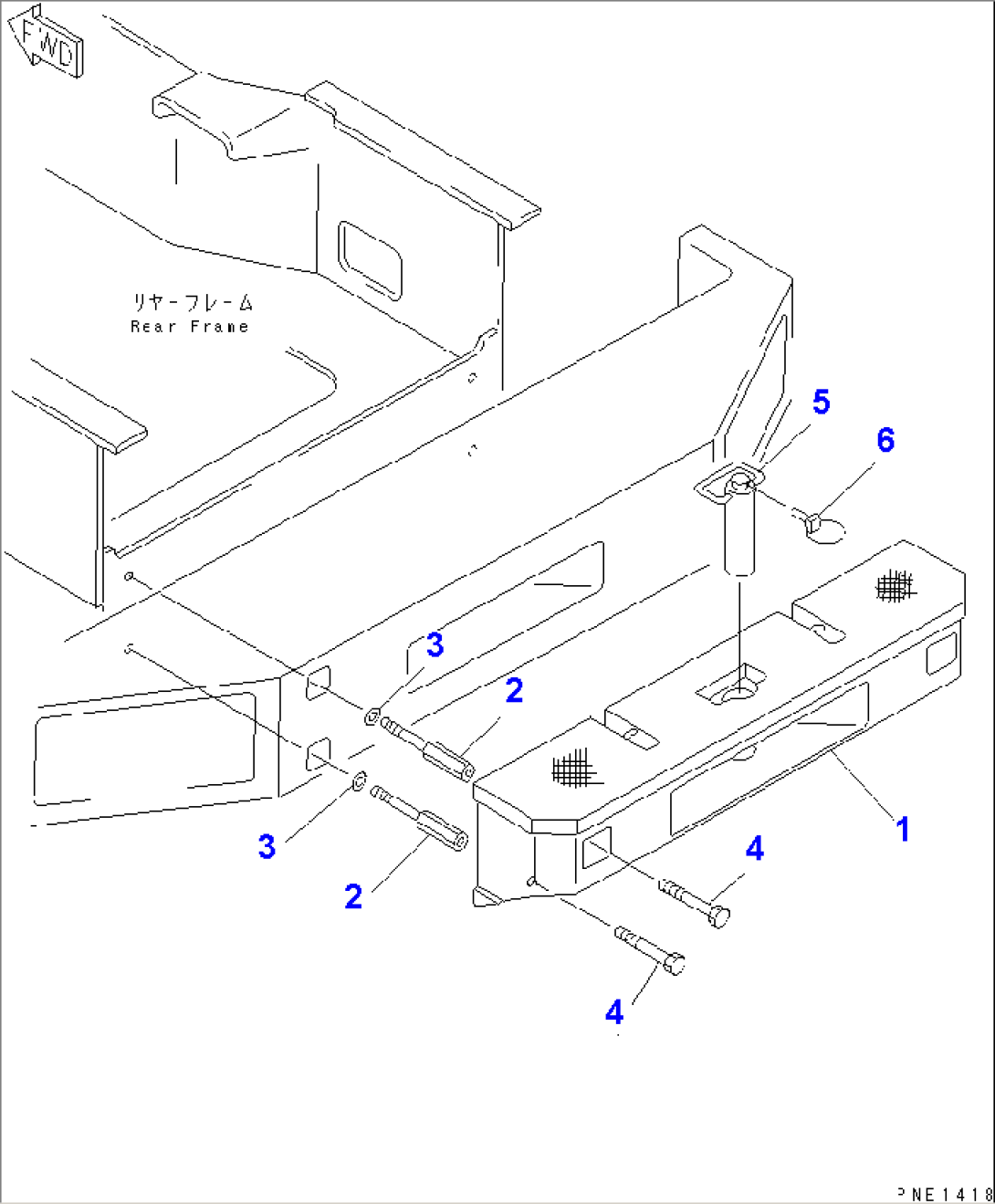

ADDITIONAL COUNTER WEIGHT (FOR HIGH LIFT)
