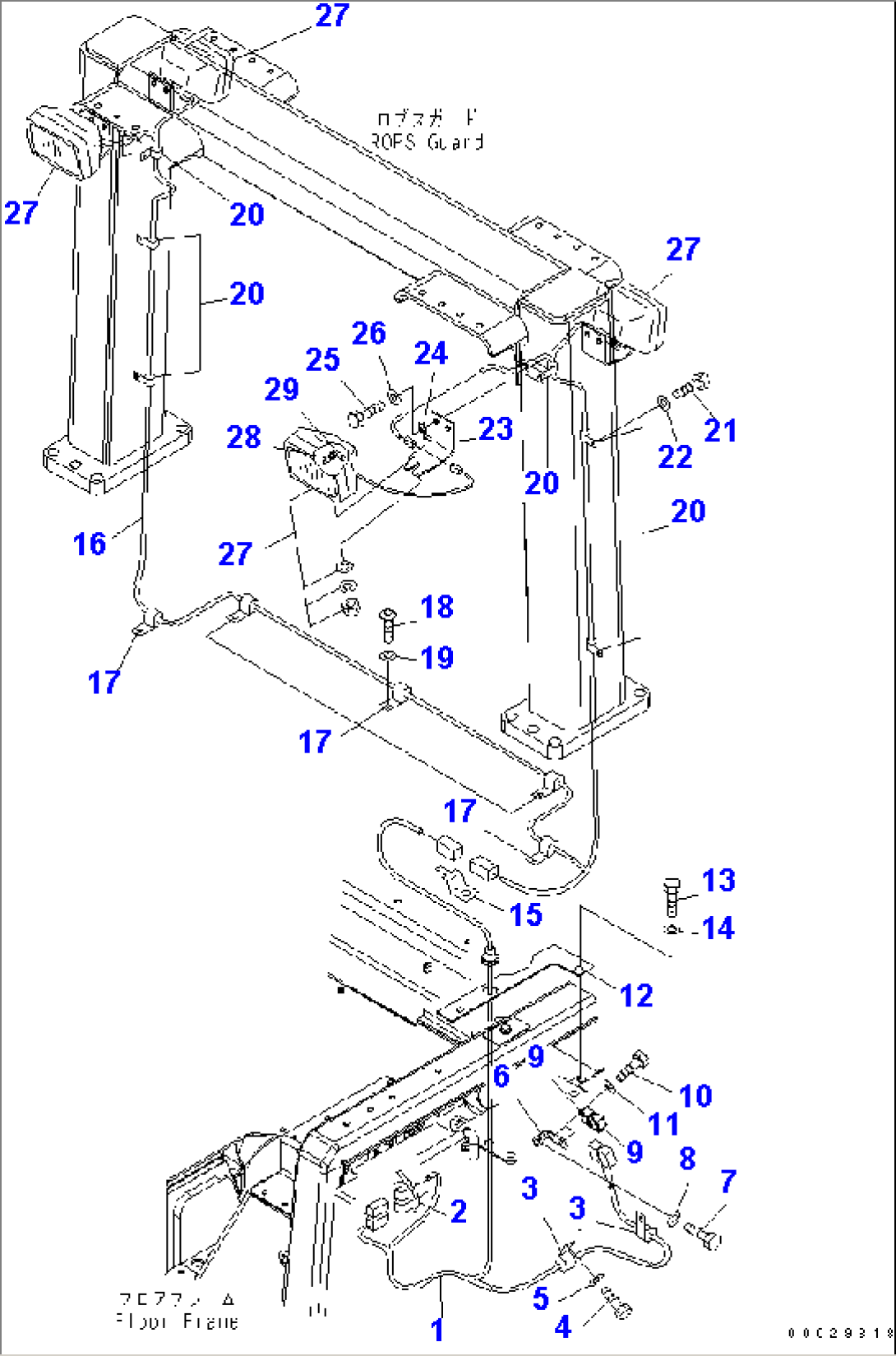

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-06-71671 | WIRING HARNESS | 1201- | |
| 2 | 08034-20414 | BAND | 1201- | |
| 3 | 04434-51410 | CLIP | 1201- | |
| 4 | 01010-81020 | BOLT | 1201- | |
| 5 | 01643-31032 | WASHER | 1201- | |
| 6 | 154-06-71690 | BRACKET | 1201- | |
| 7 | 01010-81020 | BOLT | 1201- | |
| 8 | 01643-31032 | WASHER | 1201- | |
| 9 | 569-06-61960 | RELAY | 1201- | |
| 10 | 01010-80612 | BOLT | 1201- | |
| 11 | 01643-30623 | WASHER | 1201- | |
| 12 | 154-54-74461 | COVER | 1201- | |
| 13 | 01010-81230 | BOLT | 1201- | |
| 14 | 01643-31232 | WASHER | 1201- | |
| 15 | 08193-31012 | CLIP | 1201- | |
| 16 | 154-06-71680 | WIRING HARNESS | 1201- | |
| 17 | 04434-51012 | CLIP | 1201- | |
| 18 | 01245-01230 | SCREW | 1201- | |
| 19 | 01643-71232 | WASHER | 1201- | |
| 20 | 04434-51010 | CLIP | 1201- | |
| 21 | 01010-D1020 | BOLT | 1201- | |
| 22 | 01643-71032 | WASHER | 1201- | |
| 23 | 134-X78-7360 | BRACKET | 1201- | |
| 24 | 08193-21012 | CLIP | 1201- | |
| 25 | 01010-81225 | BOLT | 1201- | |
| 26 | 01643-31232 | WASHER | 1201- | |
| 27 | 17A-06-17931 | LAMP ASS'Y | 11151- | |
| 27 | \0\17A-06-17930 | LAMP ASS'Y | 1201-11150 | |
| 28 | 17A-06-17970 | BULB, 70W | 1201- | |
| 29 | 17A-06-17980 | SLEEVE | 1201- |
