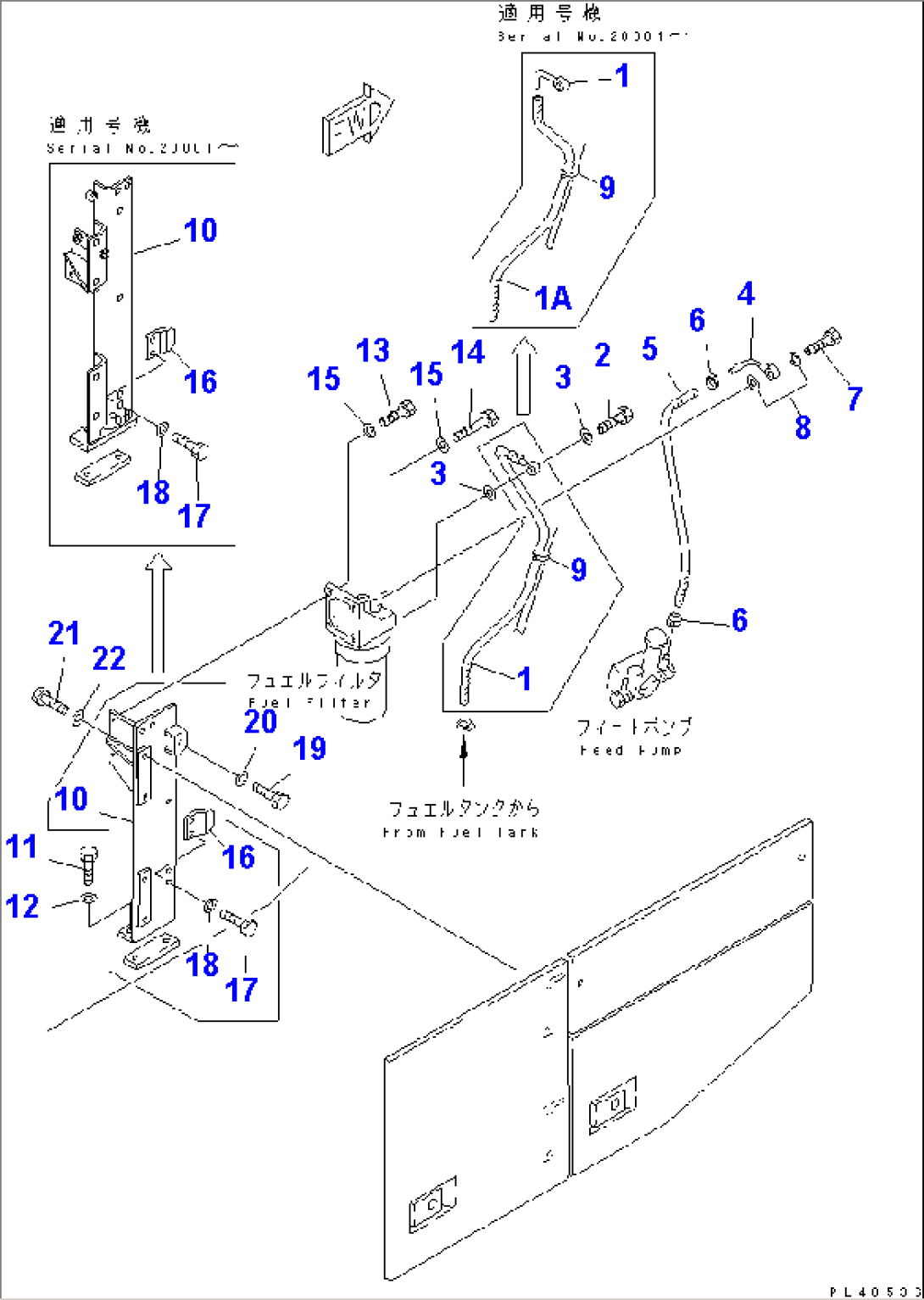

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-Z00-1211 | JOINT | 20001- | |
| 425-Z00-1110 | HOSE | 10001-19999 | ||
| 1A | 07270-41010 | TUBE | 20001- | |
| 2 | 07206-31014 | BOLT,JOINT | 10001- | |
| 3 | 07005-01412 | GASKET | 10001- | |
| 4 | 425-04-14120 | JOINT | 10001- | |
| 5 | 07270-21040 | TUBE | 10001- | |
| 6 | 07281-00197 | CLAMP | 10001- | |
| 7 | 07206-31014 | BOLT,JOINT | 10001- | |
| 8 | 07005-01412 | GASKET | 10001- | |
| 9 | 08034-20519 | BAND | .- | |
| \1\08034-00414 | BAND | 10001-. | ||
| 10 | 425-Z00-1222 | BRACKET | 20001- | |
| 425-54-18211 | BRACKET | 10735-19999 | ||
| \0\425-54-18210 | BRACKET | 10001-10734 | ||
| 11 | 01010-81235 | BOLT | 10001- | |
| 12 | 01643-31232 | WASHER | 10001- | |
| 13 | 01010-81040 | BOLT | 10001- | |
| 14 | 01011-81025 | BOLT | 10001- | |
| 15 | 01643-31032 | WASHER | 10001- | |
| 16 | 425-54-18220 | WASHER | 10001- | |
| 17 | 01010-81230 | BOLT | 10001- | |
| 18 | 01643-31232 | WASHER | 10001- | |
| 19 | 01010-81230 | BOLT | 10001- | |
| 20 | 01643-31232 | WASHER | 10001- | |
| 21 | 01010-81240 | BOLT | 10001- | |
| 22 | 01643-31232 | WASHER | 10001- |
