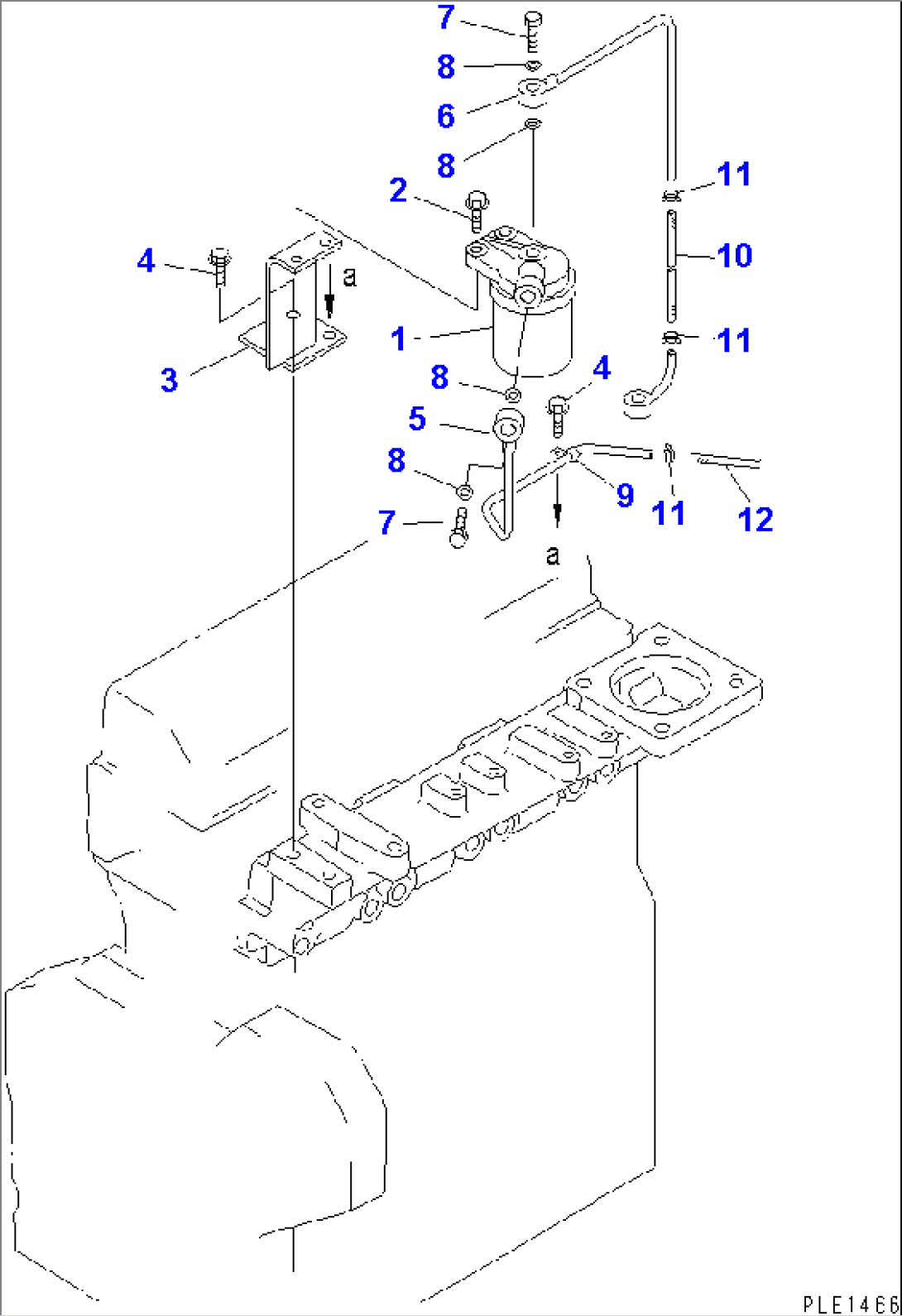

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (600-311-9500) | FILTER ASS'Y,FUEL | 12001- | |
| 2 | 01435-00830 | BOLT | 12001- | |
| 3 | 415-Z00-1141 | BRACKET | 12001- | |
| 4 | 01435-01020 | BOLT | 12001- | |
| 5 | 415-Z00-1150 | TUBE | 12001- | |
| 6 | 415-Z00-1160 | TUBE | 12001- | |
| 7 | 07206-31014 | BOLT | 12001- | |
| 8 | 07005-01412 | SEAL, WASHER | 12001- | |
| 9 | 424-04-11120 | CLIP | 12001- | |
| 10 | 07270-21030 | TUBE | 12001- | |
| 11 | 07285-00130 | CLIP | 12001- | |
| 12 | 07270-41012 | TUBE | 12001- |
