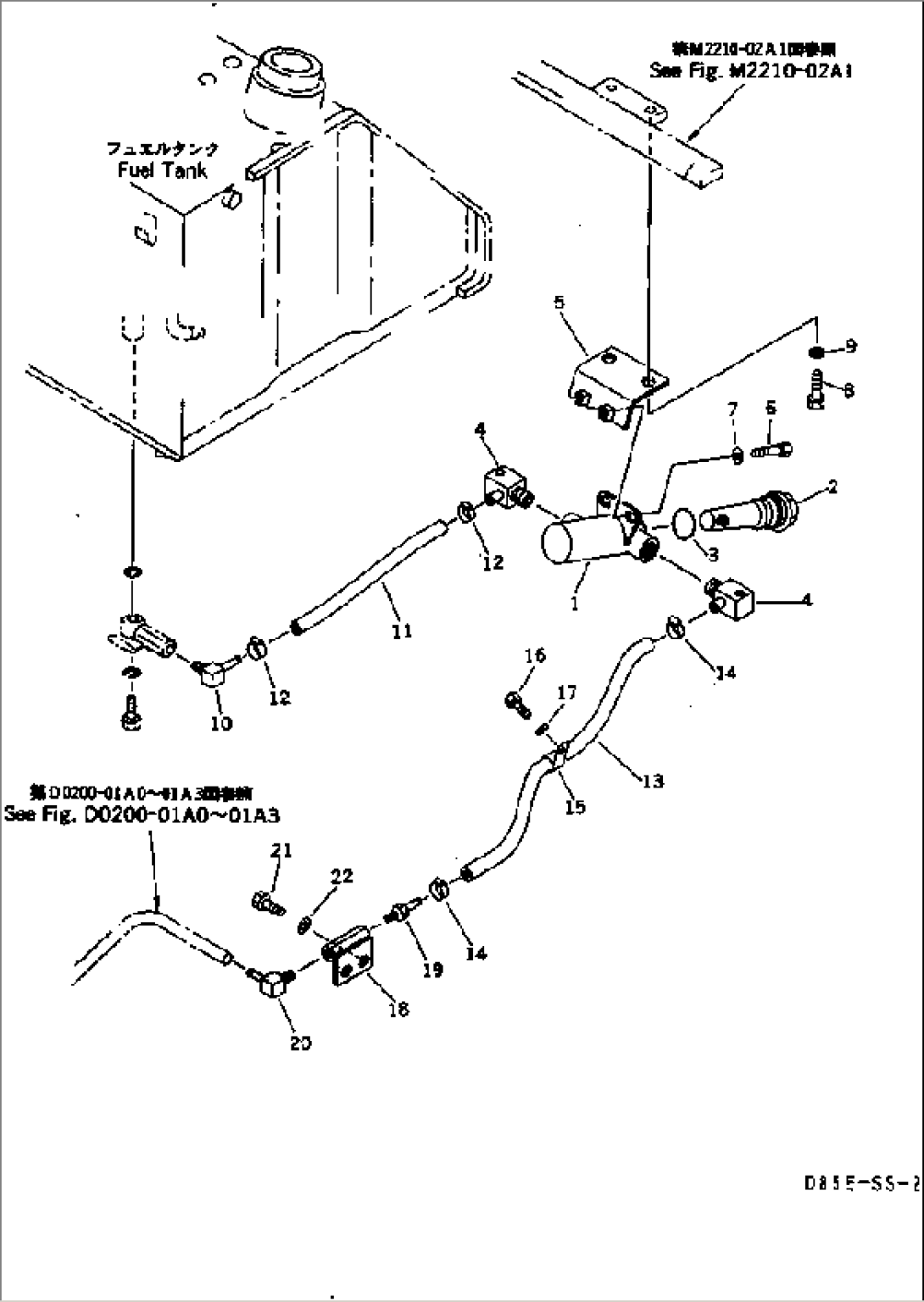

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07058-00001 | CASE | 3034- | |
| 2 | 154-04-12531 | STRAINER | 3034- | |
| 3 | 07002-04234 | O-RING | 3034- | |
| 4 | 195-04-11431 | ELBOW | 3034- | |
| 5 | 155-04-11211 | BRACKET | 3034- | |
| 6 | 01010-80825 | BOLT | 3034- | |
| 7 | 01643-30823 | WASHER | 3034- | |
| 8 | 01010-81225 | BOLT | 3034- | |
| 9 | 01643-31232 | WASHER | 3034- | |
| 10 | 14X-04-11260 | ELBOW | 3034- | |
| 11 | 21F-43-19142 | HOSE | 3034- | |
| 12 | 11Y-09-11140 | CLIP | 3475- | |
| \0\07281-00197 | CLAMP | 3034-3474 | ||
| 13 | 07288-01005 | HOSE | 3034- | |
| 14 | 11Y-09-11140 | CLIP | 3475- | |
| \0\07281-00197 | CLAMP | 3034-3474 | ||
| 15 | 08036-01814 | CLIP | 3034- | |
| 16 | 01010-81016 | BOLT | 3034- | |
| 17 | 01643-31032 | WASHER | 3034- | |
| 18 | 14X-04-11250 | BLOCK | 3034- | |
| 19 | 120-04-41130 | NIPPLE | 3034- | |
| 20 | 14X-04-11260 | ELBOW | 3034- | |
| 21 | 01010-81225 | BOLT | 3034- | |
| 22 | 01643-31232 | WASHER | 3034- |
