| Item | Part No. | Part Name | Qty | Serial No. |

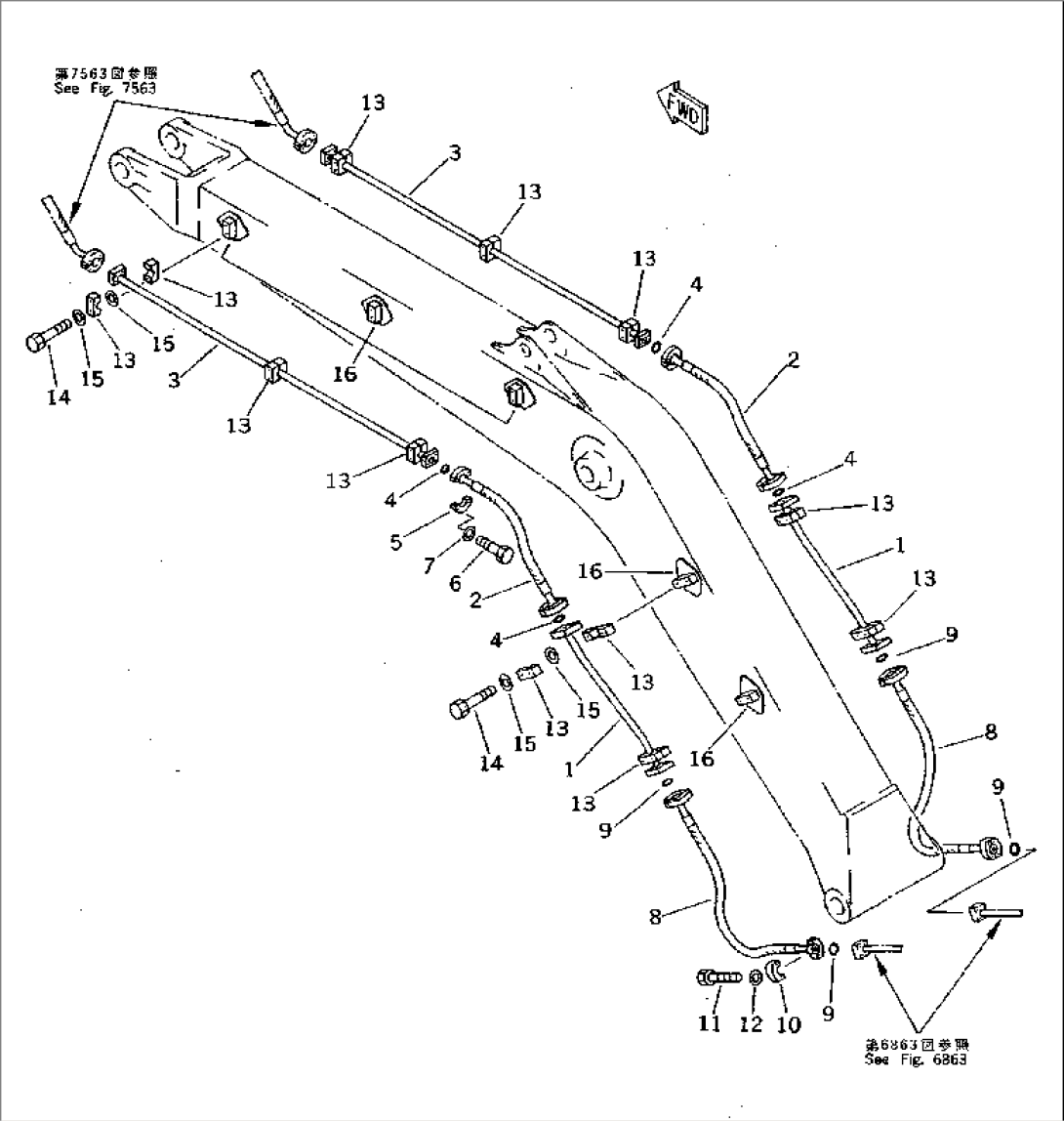

| G-1 | (\8\207-970-X110) | ATT. PIPING KIT | 10001- | |
| ==================== | ||||
| 1 | 207-970-5290 | TUBE | 10001- | |
| 2 | 07099-01215 | HOSE | 10001- | |
| 3 | 207-970-3330 | TUBE | 10001- | |
| 4 | 07000-13038 | O-RING | 10001- | |
| 5 | 07371-51260 | FLANGE | 10001- | |
| 6 | 01010-51245 | BOLT | 10001- | |
| 7 | 01643-31232 | WASHER | 10001- | |
| 8 | 07099-01217 | HOSE | 10001- | |
| 9 | 07000-13038 | O-RING | 10001- | |
| 10 | 07371-51260 | FLANGE | 10001- | |
| 11 | 01010-51245 | BOLT | 10001- | |
| 12 | 01643-31232 | WASHER | 10001- | |
| 13 | 205-970-2232 | CLAMP | 10001- | |
| 14 | 01010-51285 | BOLT | 10001- | |
| 15 | 01643-31232 | WASHER | 10001- | |
| 16 | 207-970-5340 | BRACKET (WELDED) | 10001- | |
| ==================== |
