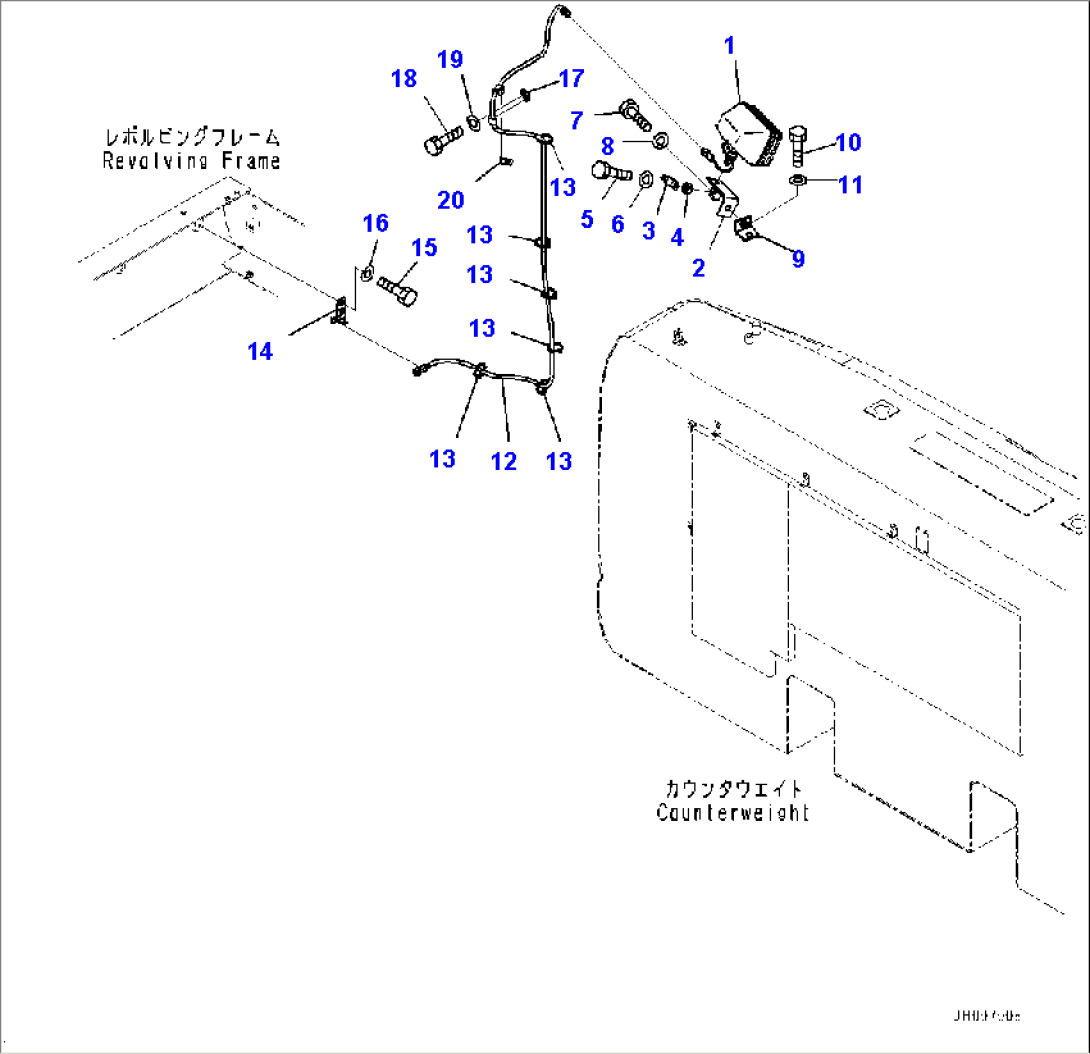

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-06-17931 | Working Lamp Assembly | 450001- | |
| 17A-06-17970 | Bulb, 70watt | 450001- | ||
| 2 | 20Y-06-21551 | Bracket | 450001- | |
| 3 | 08193-20012 | Clip | 450001- | |
| 4 | 203-62-21720 | Spacer | 450001- | |
| 5 | 01010-81240 | Bolt | 450001- | |
| 6 | 01643-31232 | Washer | 450001- | |
| 7 | 01010-81230 | Bolt | 450001- | |
| 8 | 01643-31232 | Washer | 450001- | |
| 9 | 20Y-06-21590 | Bracket | 450001- | |
| 10 | 01010-81225 | Bolt | 450001- | |
| 11 | 01643-31232 | Washer | 450001- | |
| 12 | 2A5-06-15290 | Wiring Harness | 450001- | |
| 13 | 08034-20519 | Band | 450001- | |
| 14 | 2A5-06-12210 | Bracket | 450001- | |
| 15 | 01010-81230 | Bolt | 450001- | |
| 16 | 01643-31232 | Washer | 450001- | |
| 17 | 08057-12012 | Clip | 450001- | |
| 18 | 01010-81220 | Bolt | 450001- | |
| 19 | 01643-31232 | Washer | 450001- | |
| 20 | 08057-02812 | Clip | 450001- |
