| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 205-06-K1223 | WORK LAMP ASS'Y | 32106- | |
| 205-06-K1890 | BULB¤ 70W | 32106- | ||
| 2 | 20Y-06-29780 | PLATE | 32106- | |
| 3 | 20Y-06-29790 | BRACKET | 32106- | |
| 4 | 01010-81225 | BOLT | 32106- | |
| 5 | 01643-31232 | WASHER | 32106- | |
| 6 | 08037-02512 | GROMMET | 32106- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc450 6k ke s/n 32106 up
- Electrical system
- Additional work lamp
Поиск по каталогу

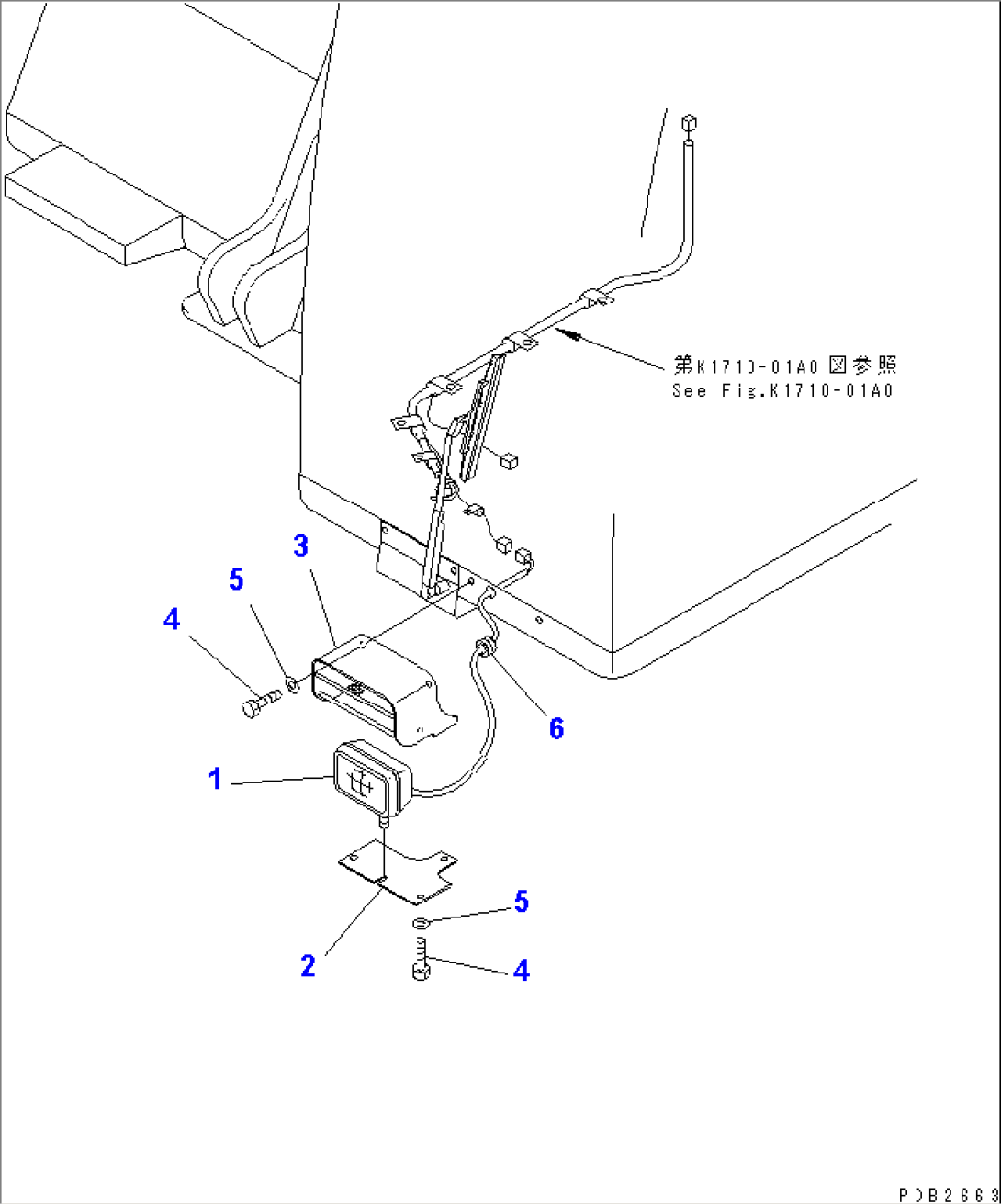

ADDITIONAL WORK LAMP
