| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22B-54-17511 | WORK LAMP ASS'Y | K45001- | |
| 2 | 22B-54-17271 | GROMMET | K45001- | |
| 421-06-23330 | BULB¤ 70W | K45001- | ||
| 3 | 01010-D1050 | BOLT | K45001- | |
| 4 | 01643-71032 | WASHER | K45001- | |
| 5 | 205-970-2410 | PIPE | K45001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc450 7k e0 s/n k45001 up
- Electrical system
- Additional work lamp
Поиск по каталогу

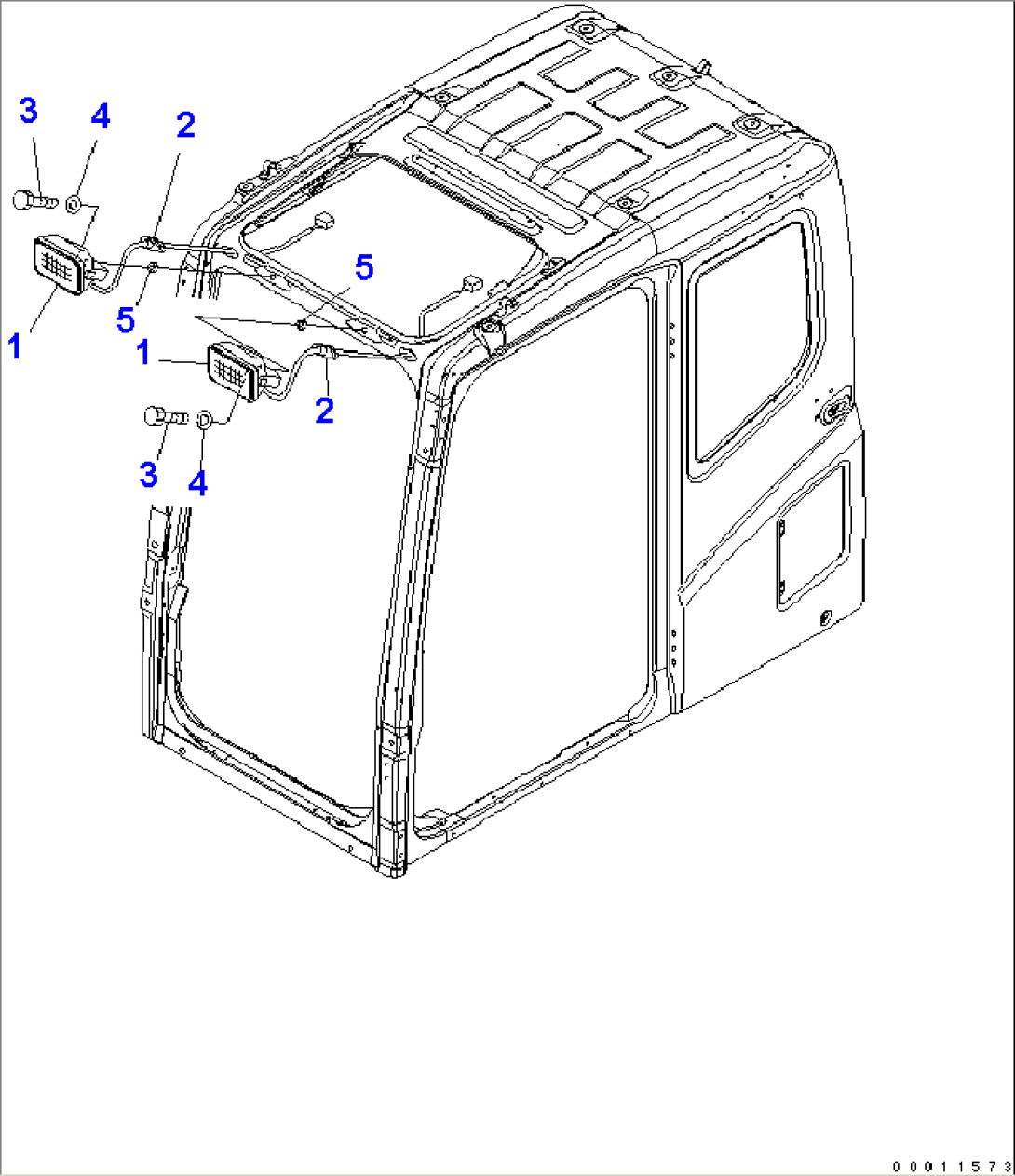

ADDITIONAL WORK LAMP
