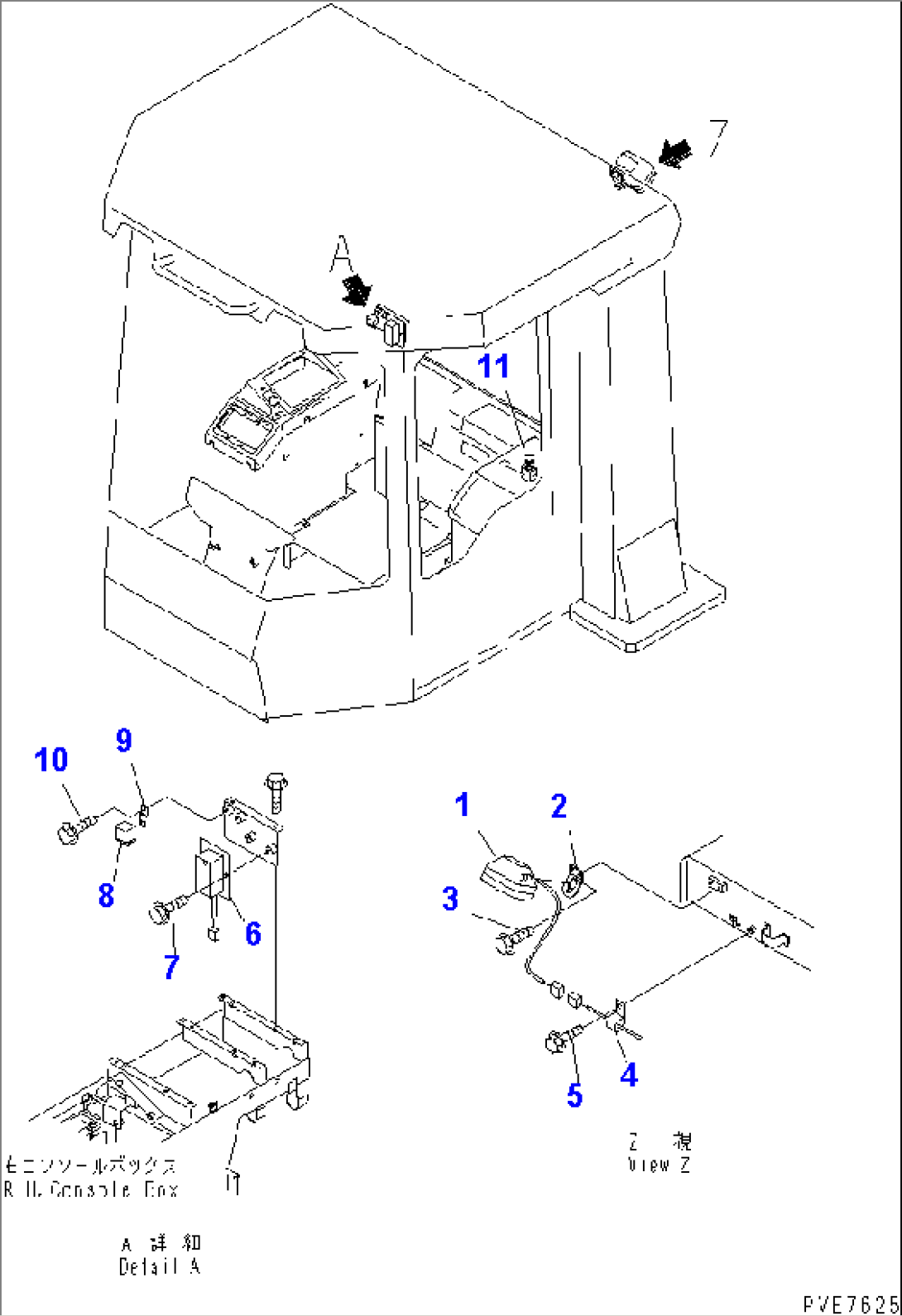

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-23350 | LAMP ASS'Y | 50001- | |
| \6\ | NUT | 50001- | ||
| \6\ | WASHER | 50001- | ||
| 421-06-23320 | LENS | 50001- | ||
| 421-06-23330 | BULB¤ 70W | 50001- | ||
| 2 | 427-06-22320 | PLATE | 50001- | |
| 3 | 01435-01220 | BOLT | 50001- | |
| 4 | 04434-50610 | CLIP | 50001- | |
| 5 | 01435-01016 | BOLT | 50001- | |
| 6 | 209-06-72181 | TIMER | 50001-50024 | |
| 7 | 01435-00608 | BOLT | 50001-50024 | |
| 8 | 569-06-61960 | RELAY,STEP LAMP | 50001-50024 | |
| 9 | 287-06-16420 | BRACKET | 50001-50024 | |
| 10 | 01435-00608 | BOLT | 50001-50024 | |
| 11 | 195-06-41180 | SWITCH,STEP LAMP | 50001-50024 |
