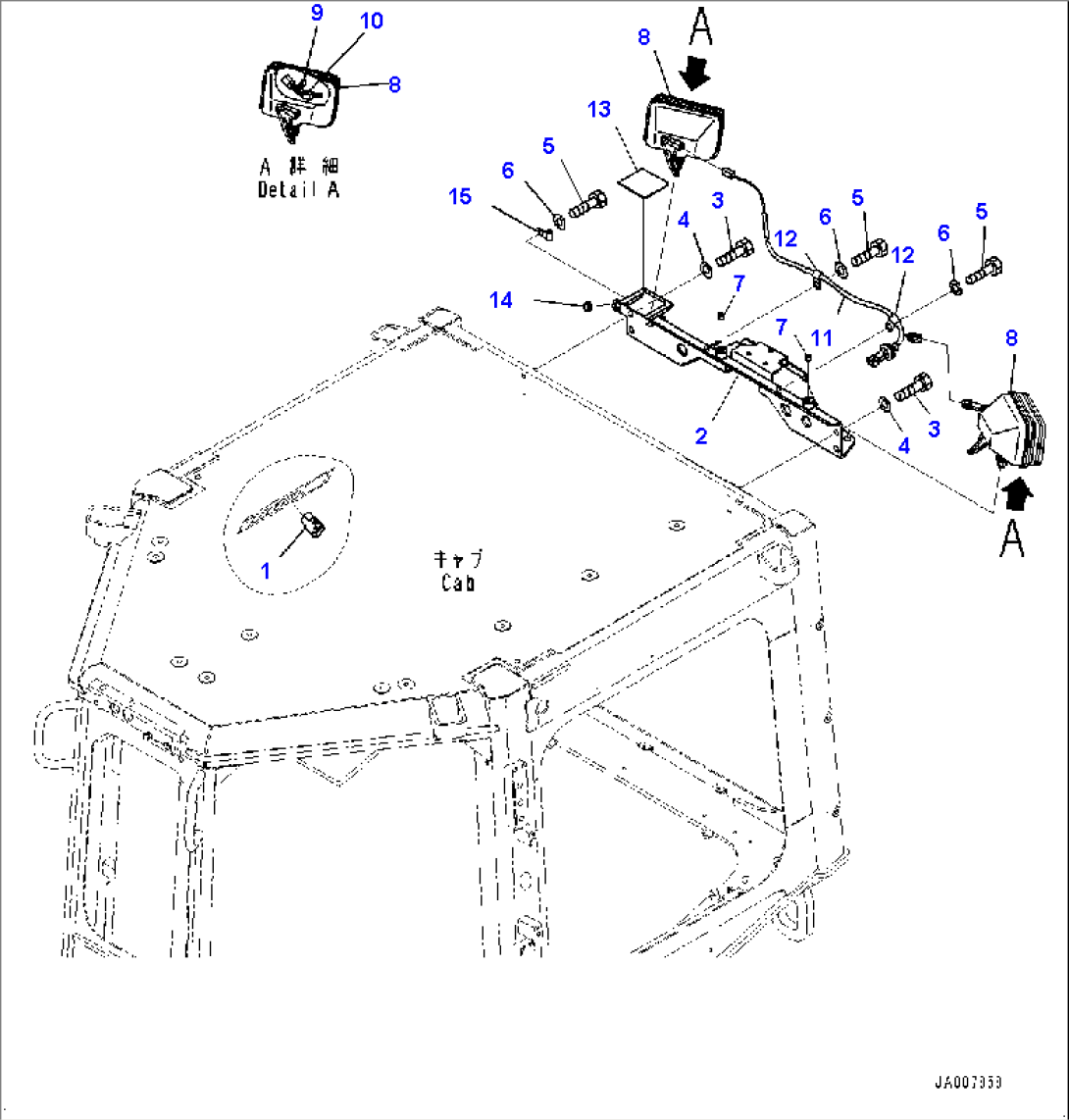

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-06-45360 | Switch, Additional Lamp | 1001- | |
| 2 | 17A-979-5171 | Bracket | 1001- | |
| 3 | 01010-81225 | Bolt | 1001- | |
| 4 | 01643-31232 | Washer | 1001- | |
| 5 | 01010-81225 | Bolt | 1001- | |
| 6 | 01643-31232 | Washer | 1001- | |
| 7 | 01310-21212 | Screw | 1001- | |
| 8 | 17A-06-17931 | Working Lamp Assembly | 1001- | |
| 9 | 17A-06-17970 | Bulb, 70watt | 1001- | |
| 10 | 17A-06-17980 | Sleeve | 1001- | |
| 11 | 17A-06-51262 | Wiring Harness | 1001- | |
| 12 | 04434-51012 | Clip | 1001- | |
| 13 | 17A-06-51950 | Plate | 1004- | |
| 14 | 22T-05-13110 | Grommet | 1004- | |
| 15 | 04434-50812 | Clip | 1004- |
