| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-53-15210 | Working Lamp Assembly | 1118- | |
| 1 | 421-06-23330 | Bulb, 70watt | 1118- | |
| 2 | 01010-D1025 | Bolt | 1118- | |
| 3 | 01643-71032 | Washer | 1118- | |
| 4 | 20Y-53-15150 | Bracket | 1118- | |
| 5 | 01010-D1060 | Bolt | 1118- | |
| 6 | 01643-71032 | Washer | 1118- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc200 8e0 s/n 1118 up (hybrid spec.)
- Electrical system
- Additional working lamp (#1118 )
Поиск по каталогу

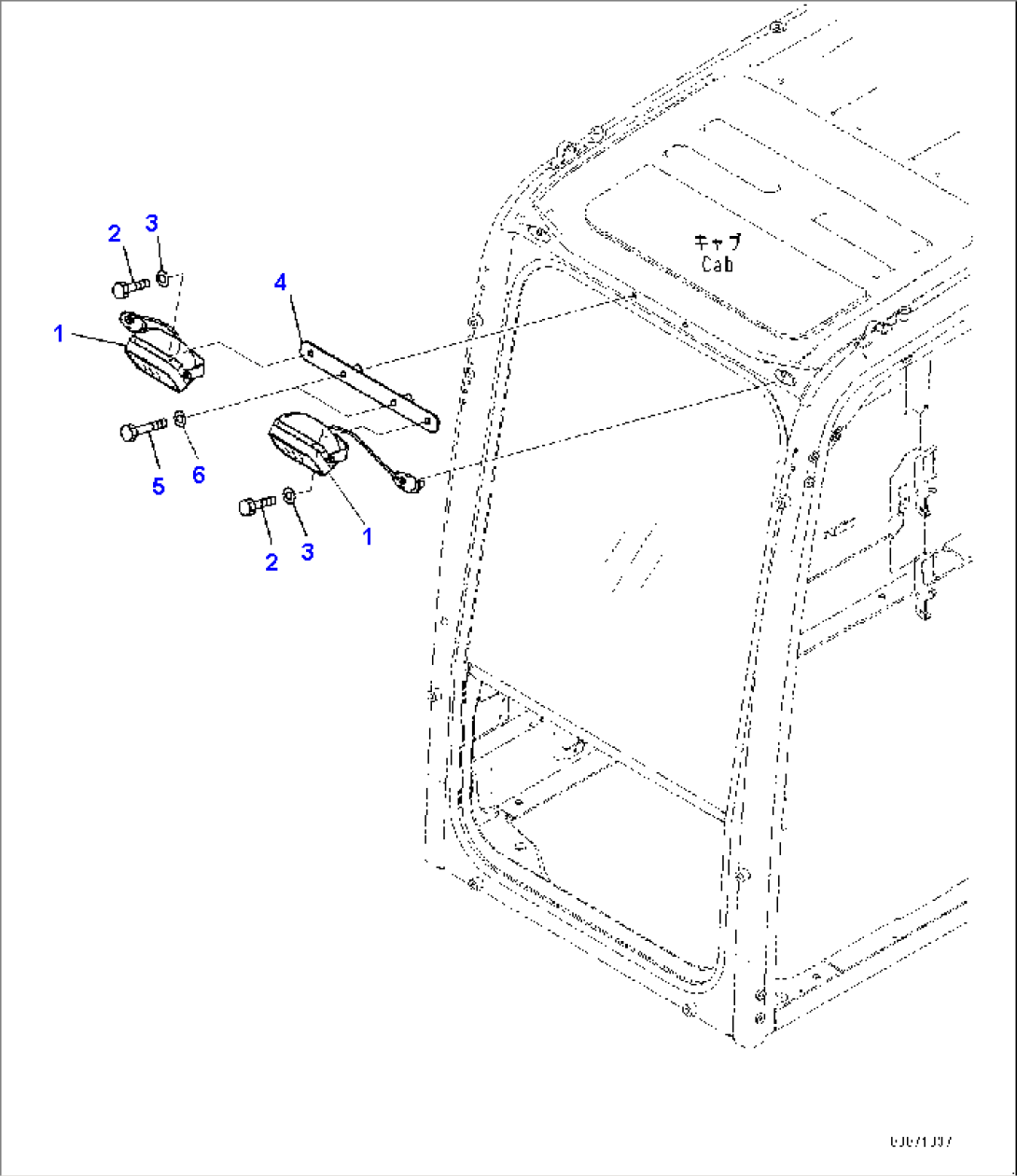

Additional Working Lamp (#1118-)
