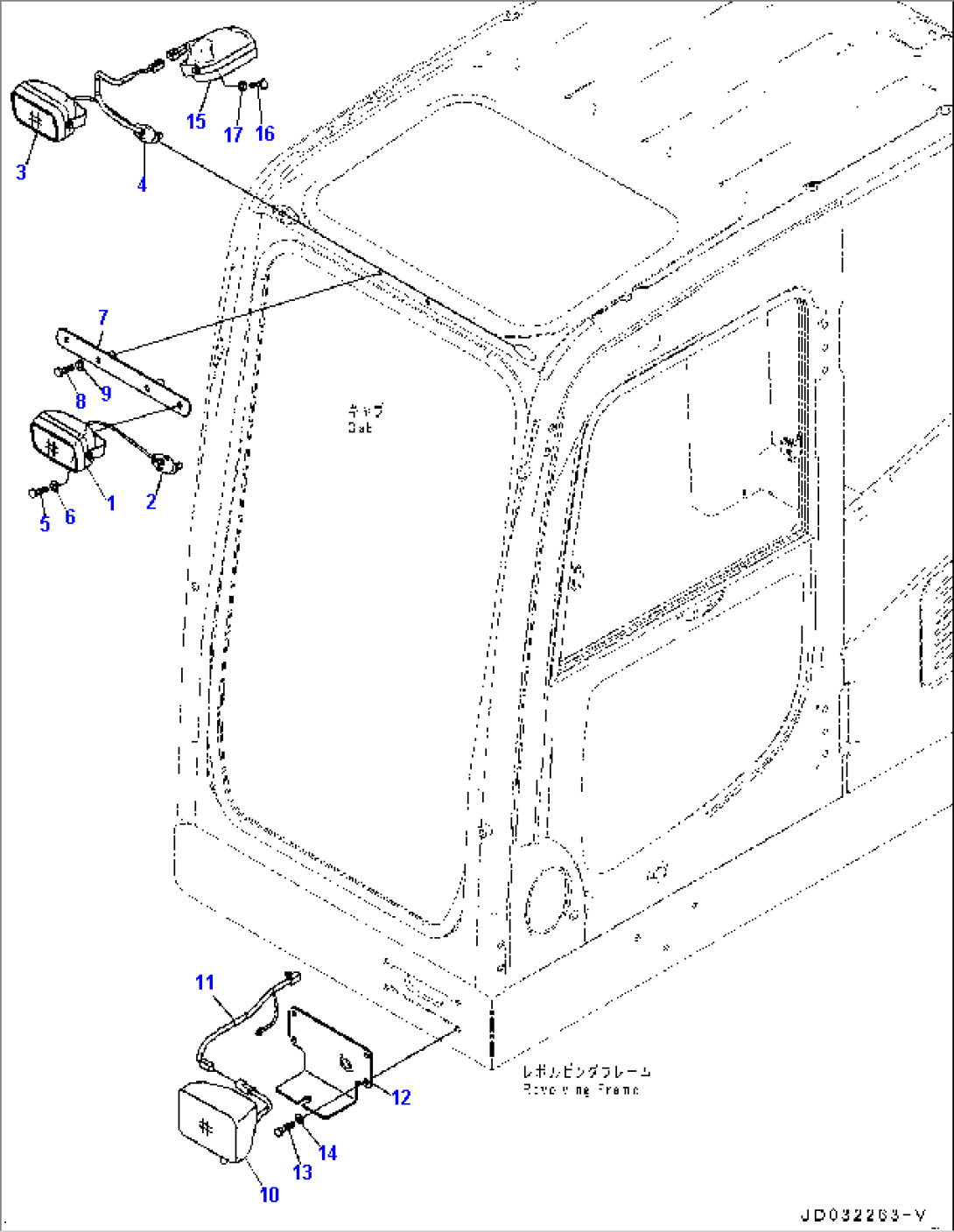

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 209-54-44210 | Lamp | 65001-@ | |
| 2 | 22B-54-17271 | Grommet | 65001-@ | |
| 2 | 421-06-23330 | Bulb, 70watt | 65001-@ | |
| 3 | 209-54-44310 | Lamp | 65001-@ | |
| 4 | 22B-54-17271 | Grommet | 65001-@ | |
| 4 | 421-06-23330 | Bulb, 70watt | 65001-@ | |
| 5 | 01010-D1025 | Bolt | 65001-@ | |
| 6 | 01643-71032 | Washer | 65001-@ | |
| 7 | 20Y-53-15110 | Bracket | 65003-@ | |
| 7 | 20Y-53-15150 | Bracket | 65001-65002 | |
| 8 | 01010-D1060 | Bolt | 65001-@ | |
| 9 | 01643-71032 | Washer | 65001-@ | |
| 10 | 21T-06-32810 | Working Lamp Assembly | 65001-@ | |
| 10 | 421-06-23330 | Bulb, 70watt | 65001-@ | |
| 11 | 21M-06-21160 | Wiring Harness | 65001-@ | |
| 12 | 209-06-41320 | Bracket | 65001-@ | |
| 13 | 01010-81230 | Bolt | 65001-@ | |
| 14 | 01643-31232 | Washer | 65001-@ | |
| 15 | 20Y-06-41940 | Working Lamp Assembly | 65001-@ | |
| 15 | 421-06-23330 | Bulb, 70watt | 65001-@ | |
| 16 | 01010-D1020 | Bolt | 65001-@ | |
| 17 | 01643-71032 | Washer | 65001-@ |
