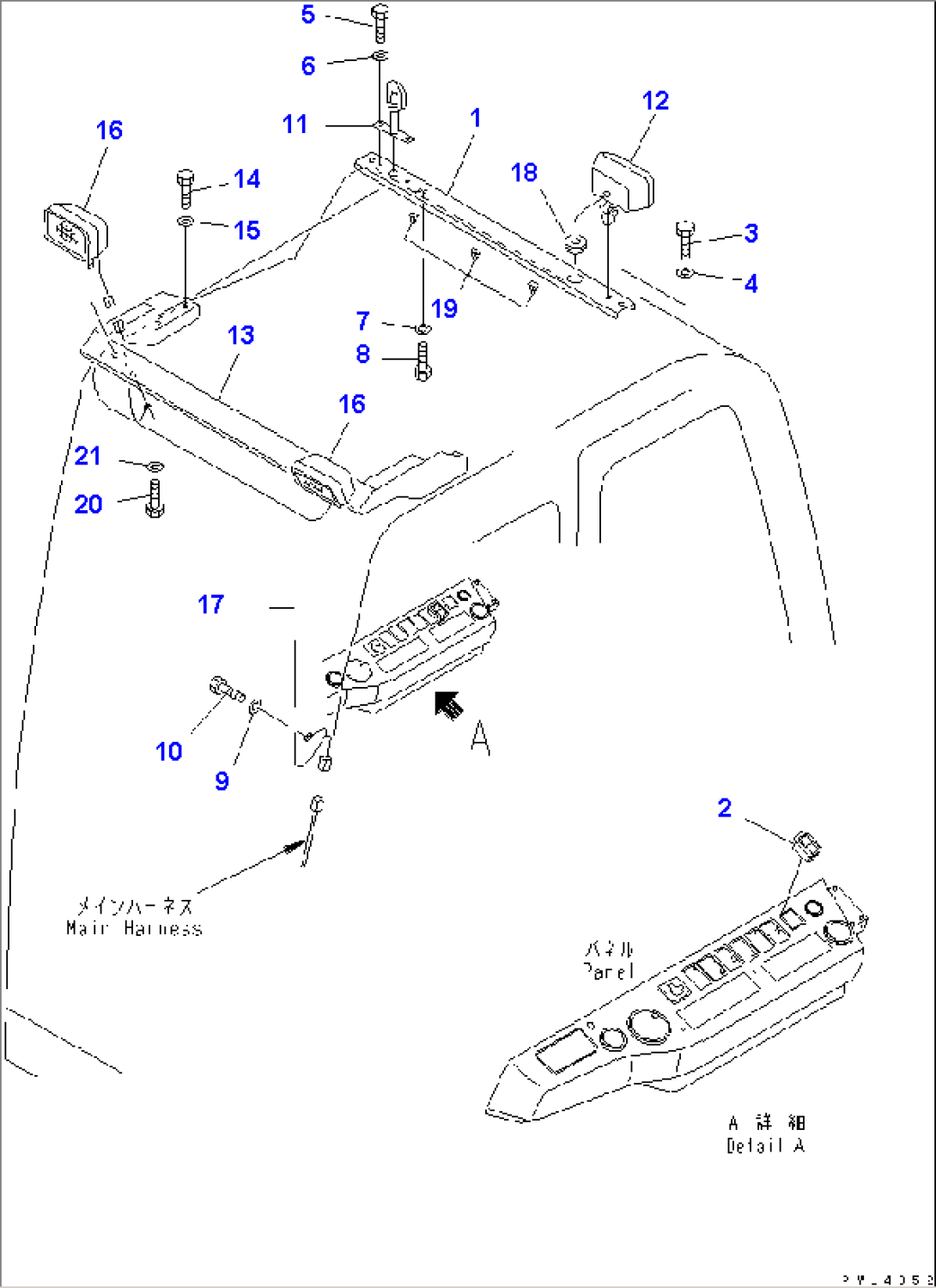

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20E-54-K2281 | BRACKET | K34001- | |
| 2 | 20Y-06-29670 | SWITCH | K34001- | |
| 3 | 01010-81220 | BOLT | K34001- | |
| 4 | 01643-31232 | WASHER | K34001- | |
| 5 | 01010-81020 | BOLT | K34001- | |
| 6 | 01643-31032 | WASHER | K34001- | |
| 7 | 01643-30823 | WASHER | K34001- | |
| 8 | 01010-80816 | BOLT | K34001- | |
| 9 | 01643-30823 | WASHER | K34001- | |
| 10 | 01010-80816 | BOLT | K34001- | |
| 11 | 20E-54-K2271 | BRACKET | K34001- | |
| 12 | 20Y-06-K2680 | WORK LAMP ASSEMBLY,REAR | K34001- | |
| 13 | 20Y-54-K8710 | BRACKET | K34001- | |
| 14 | 01010-80855 | BOLT | K34001- | |
| 15 | 01643-30823 | WASHER | K34001- | |
| 16 | 20Y-06-K2680 | WORK LAMP ASSEMBLY,FRONT | K34001- | |
| 17 | 20Y-54-K8722 | WIRING HARNESS | K34001- | |
| 18 | 08037-02512 | GROMMET | K34001- | |
| 19 | 205-54-K4030 | CLIP | K34001- | |
| 20 | 01010-80816 | BOLT | K34001- | |
| 21 | 01643-30823 | WASHER | K34001- |
