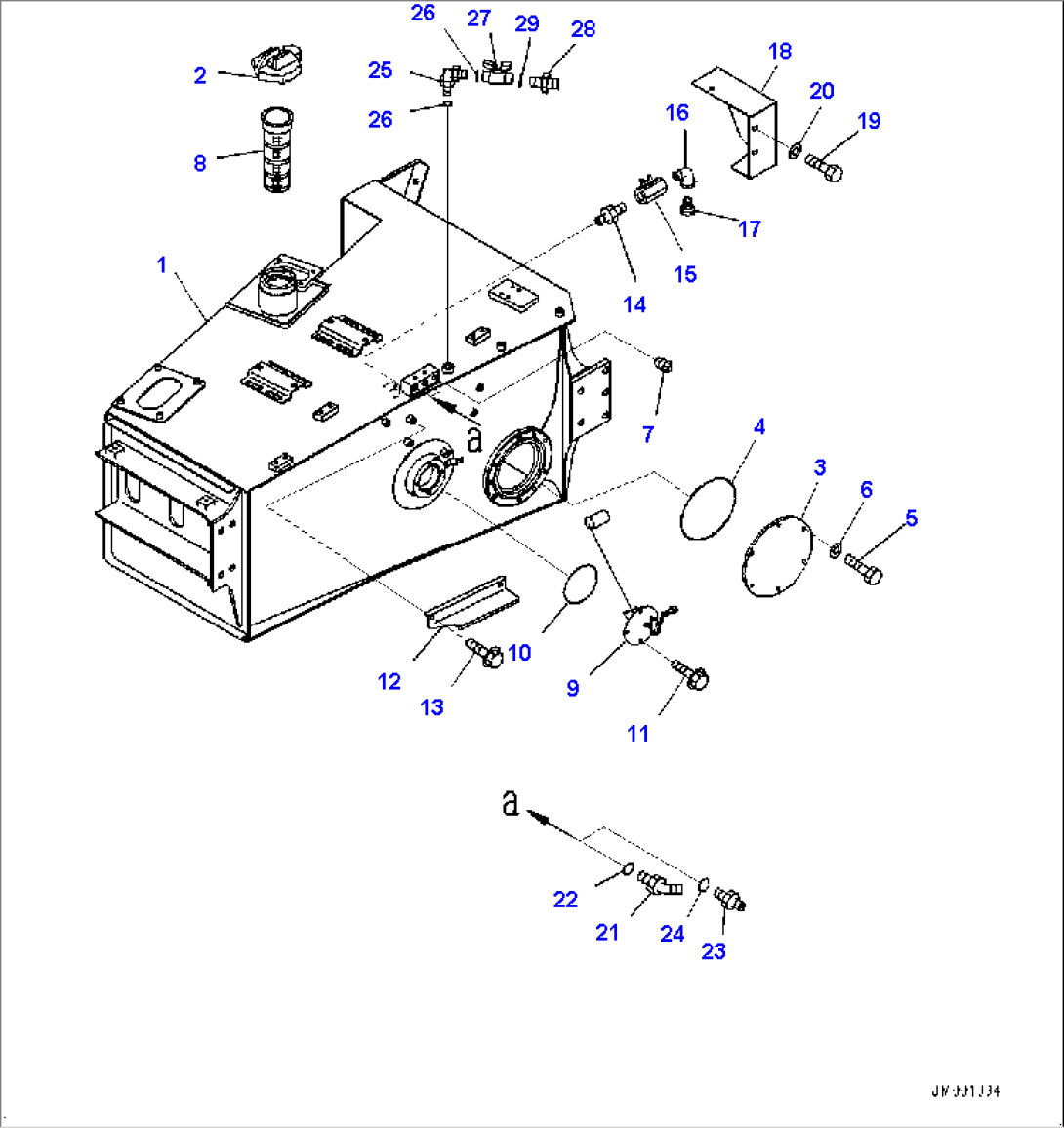

| Item | Part No. | Part Name | Qty | Serial No. |
| 56B-98-21700 | Tank Assembly, Fuel | 2848- | ||
| 1 | 56B-98-21810 | Tank | 2848- | |
| 2 | 19M-04-11220 | Cap | 2848- | |
| 2 | 07050-21202 | Gasket | 2848- | |
| 3 | 428-04-11120 | Plate | 2848- | |
| 4 | 07000-15200 | O-ring | 2848- | |
| 5 | 01010-81025 | Bolt | 2848- | |
| 6 | 01643-31032 | Washer | 2848- | |
| 7 | 07042-20312 | Plug, Taper | 2848- | |
| 8 | 17M-04-41190 | Strainer | 2848- | |
| 9 | 7861-93-4930 | Sensor, Fuel Level | 2848- | |
| 10 | 07000-12085 | O-ring | 2848- | |
| 11 | 01435-01016 | Bolt | 2848- | |
| 12 | 56B-04-11160 | Bracket | 2848- | |
| 13 | 01435-01016 | Bolt | 2848- | |
| 14 | 07325-00200 | Nipple | 2848- | |
| 15 | 363-04-11130 | Valve | 2848- | |
| 16 | 281-43-18250 | Nipple | 2848- | |
| 17 | 56B-04-11190 | Adapter | 2848- | |
| 18 | 56B-04-21620 | Cover | 2848- | |
| 19 | 01010-81020 | Bolt | 2848- | |
| 20 | 01643-31032 | Washer | 2848- | |
| 21 | 21W-62-43390 | Elbow | 2848- | |
| 22 | 07002-11823 | O-ring | 2848- | |
| 23 | 02781-00313 | Union | 2848- | |
| 24 | 07002-11823 | O-ring | 2848- | |
| 25 | 14X-04-21630 | Elbow | 2848- | |
| 26 | 07002-12034 | O-ring | 2848- | |
| 27 | 561-04-82121 | Valve | 2848- | |
| 28 | 02781-00516 | Union | 2848- | |
| 29 | 07002-12034 | O-ring | 2848- |
