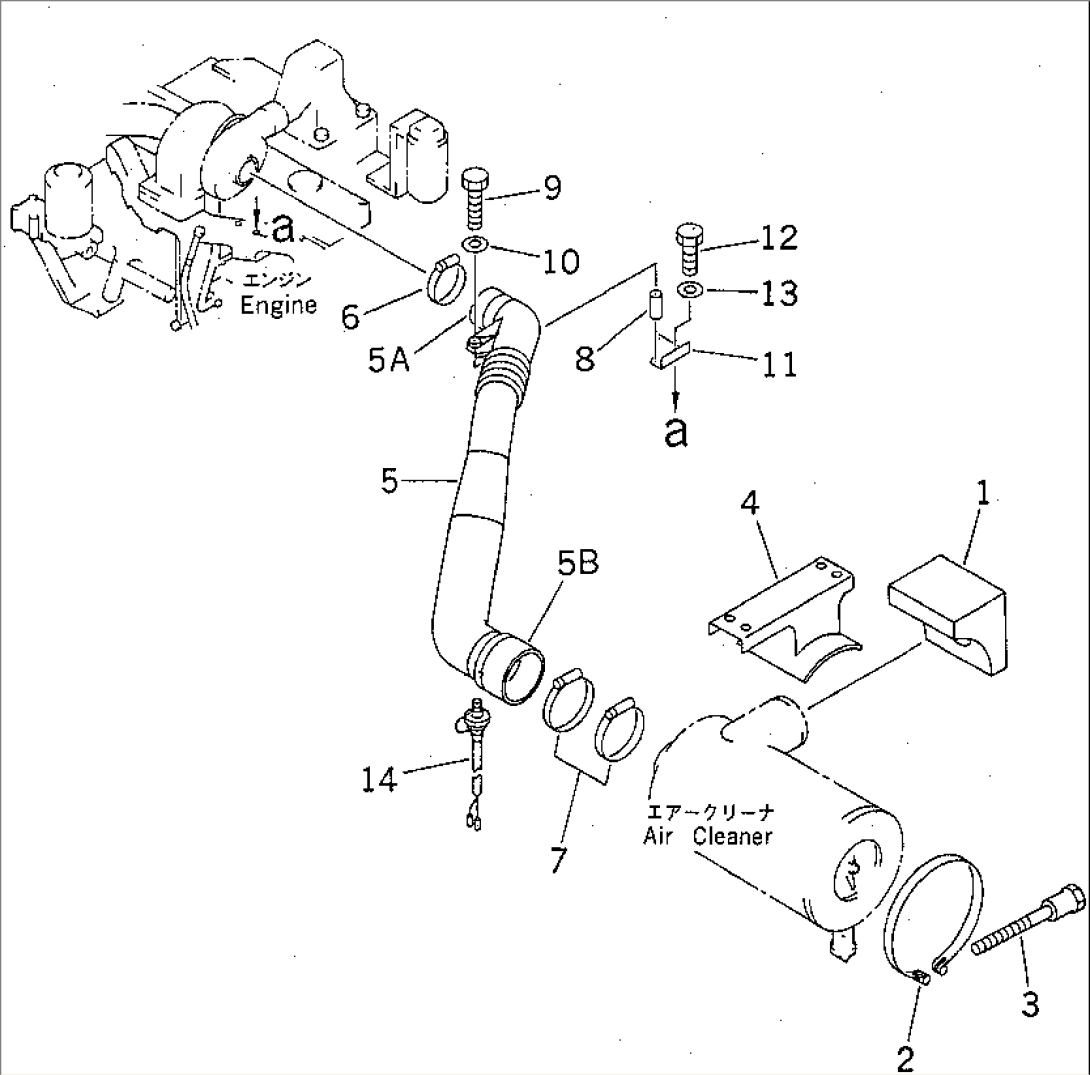

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-54-27551 | SEAL | 1005- | |
| 2 | 6131-11-4520 | BAND ASS'Y | 1005- | |
| 3 | 6643-11-4641 | BOLT | 1005- | |
| 4 | 8233-54-3680 | FRAME | 1005- | |
| 5 | 20Y-01-21212 | AIR DUCT | 1005- | |
| 5A | 20Y-01-21220 | INSULATOR | 1005- | |
| 5B | 6207-11-4981 | INSULATOR | 1005- | |
| 6 | 07289-00070 | CLAMP | 1005- | |
| 7 | 07289-00120 | CLAMP | 1005- | |
| 8 | 6152-51-5520 | SPACER | 1005- | |
| 9 | 01010-50890 | BOLT | 1005- | |
| 10 | 01643-30823 | WASHER | 1005- | |
| 11 | 20Y-01-21232 | BRACKET | 1005- | |
| 12 | 01435-01035 | BOLT | 1005- | |
| 13 | 421-06-12780 | SPACER | 1005- | |
| 14 | 7861-91-1420 | SENSOR | 1005- |
