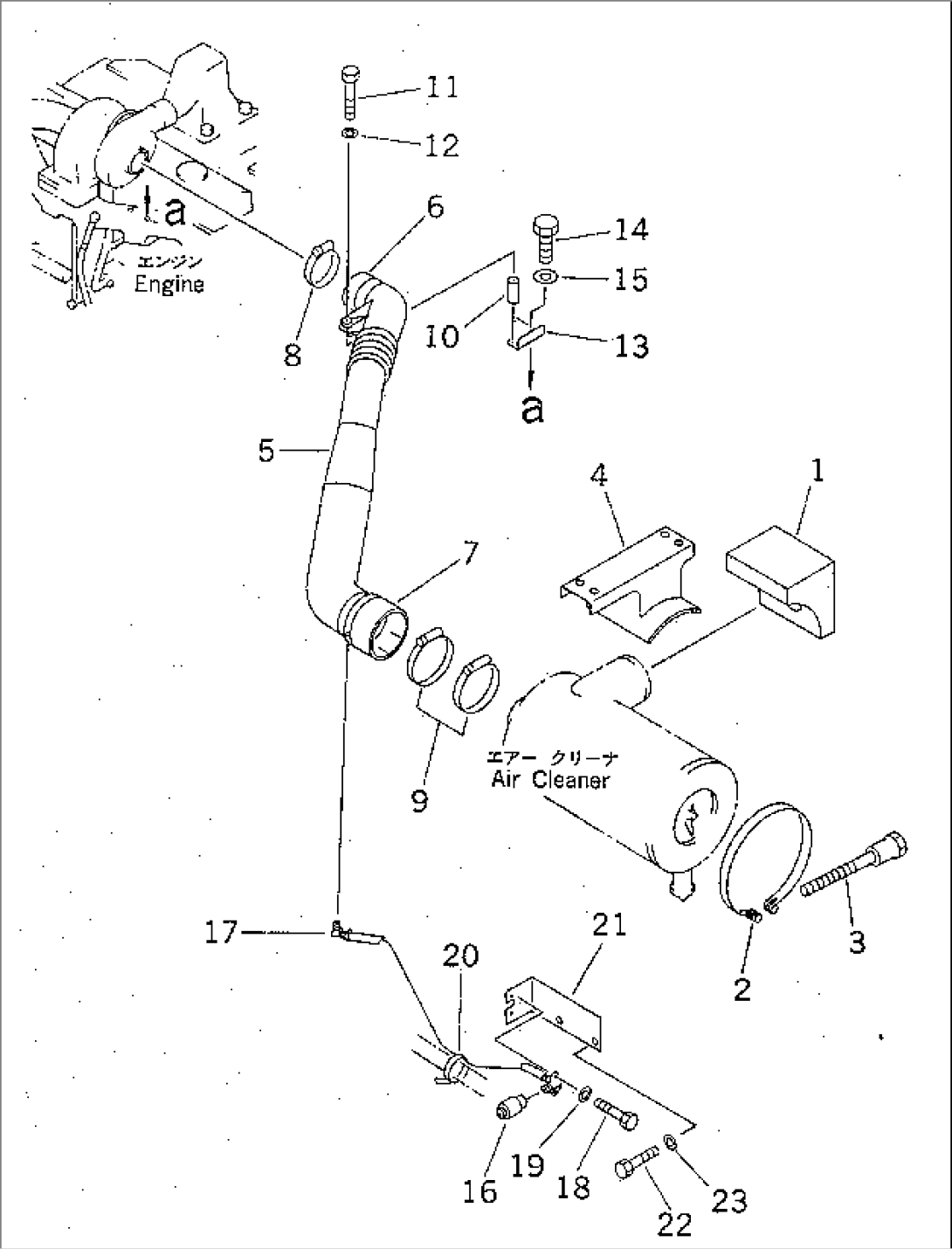

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-54-27551 | SEAL | 83952-@ | |
| 2 | 6131-11-4520 | BAND ASS'Y | 83952-@ | |
| 3 | 6643-11-4641 | BOLT | 83952-@ | |
| 4 | 20Y-54-29194 | FRAME | 83952-@ | |
| 5 | 20Y-01-21212 | AIR DUCT | 83952-@ | |
| 6 | 20Y-01-21220 | INSULATOR | 83952-@ | |
| 7 | 6207-11-4981 | INSULATOR | 83952-@ | |
| 8 | 07289-00070 | CLAMP | 92950-@ | |
| 8 | \1\208-09-11120 | CLAMP | 83952-92949 | |
| 9 | 07289-00120 | CLAMP | 92950-@ | |
| 9 | \1\207-09-11120 | CLAMP | 83952-92949 | |
| 10 | 6152-51-5520 | SPACER | 83952-@ | |
| 11 | 01010-50890 | BOLT | 83952-@ | |
| 12 | 01643-30823 | WASHER | 83952-@ | |
| 13 | 20Y-01-21232 | BRACKET | 83952-@ | |
| 14 | 01435-01035 | BOLT | 83952-@ | |
| 15 | 421-06-12780 | SPACER | 83952-@ | |
| 16 | 08670-12001 | INDICATOR | 83952-@ | |
| 17 | 08671-10080 | HOSE | 84597-@ | |
| 17 | \0\08671-10100 | HOSE | 83952-84596 | |
| 18 | 01010-50616 | BOLT | 83952-@ | |
| 19 | 01602-20619 | WASHER | 83952-@ | |
| 20 | 08034-00823 | BAND | 83952-@ | |
| 21 | 20Y-01-21710 | BRACKET | 83952-94998 | |
| 22 | 01010-51225 | BOLT | 83952-94998 | |
| 23 | 01643-31232 | WASHER | 83952-@ |
