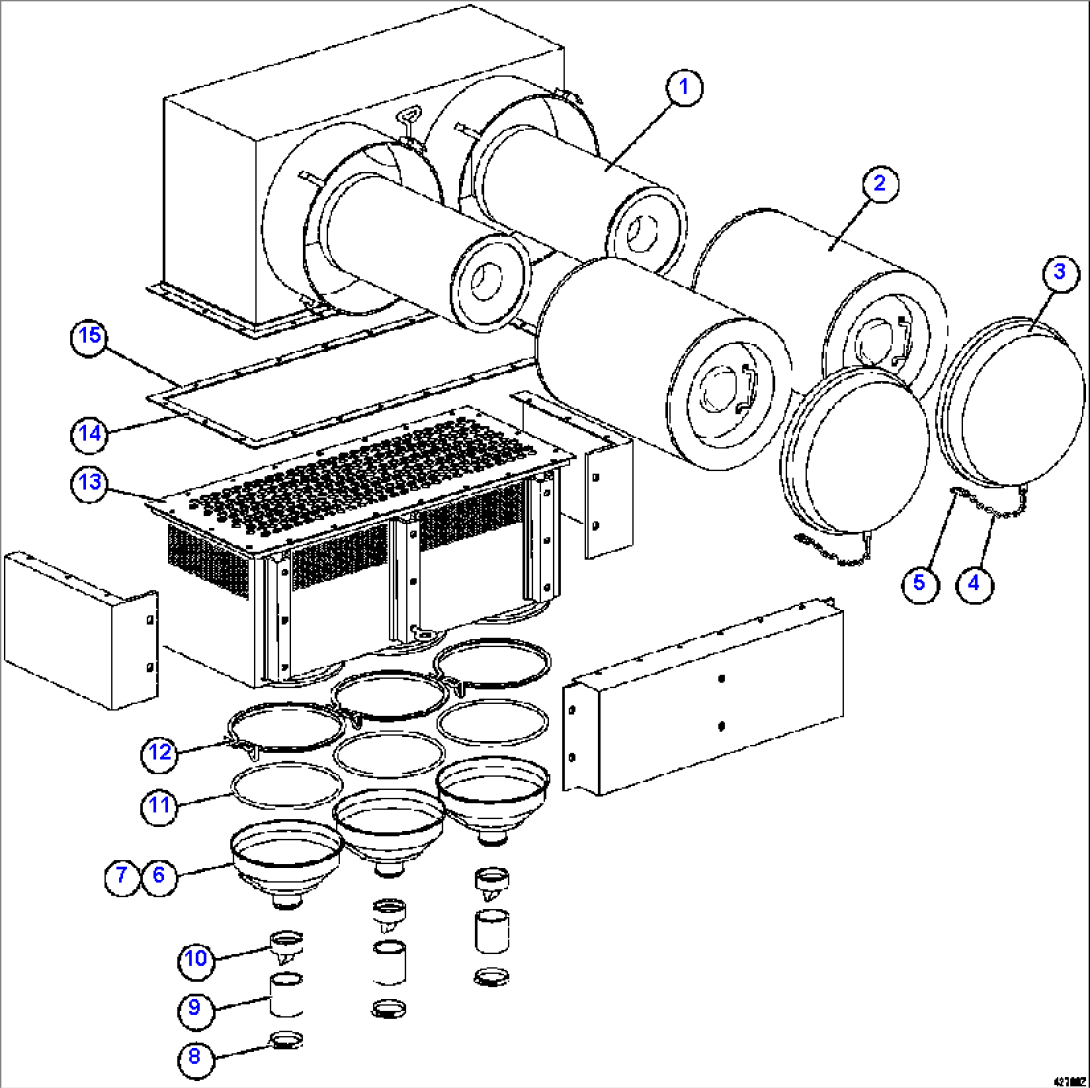

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | XA4291 | FILTER, SAFETY | ||
| 2 | XA4292 | FILTER, PRIMARY | ||
| 3 | XA5011 | COVER | ||
| 4 | XA4293 | CHAIN | ||
| 5 | XA5012 | CONNECTOR, CHAIN | ||
| 6 | XA3928 | CAP ASSEMBLY | ||
| 6 | XA3920 | CUP | ||
| 7 | XA3922 | GASKET | ||
| 8 | CD9709 | CLAMP, WORM DRIVE | ||
| 9 | PB1551 | TUBE | ||
| 10 | VG9486 | VALVE, DUST CUP | ||
| 11 | VS2190 | O-RING | ||
| 12 | VP0359 | CLAMP | ||
| 13 | VJ4028 | BODY | ||
| 14 | VS2194 | GASKET (SHORT STRIPS) | ||
| 15 | VS2193 | GASKET (LONG STRIPS) |
