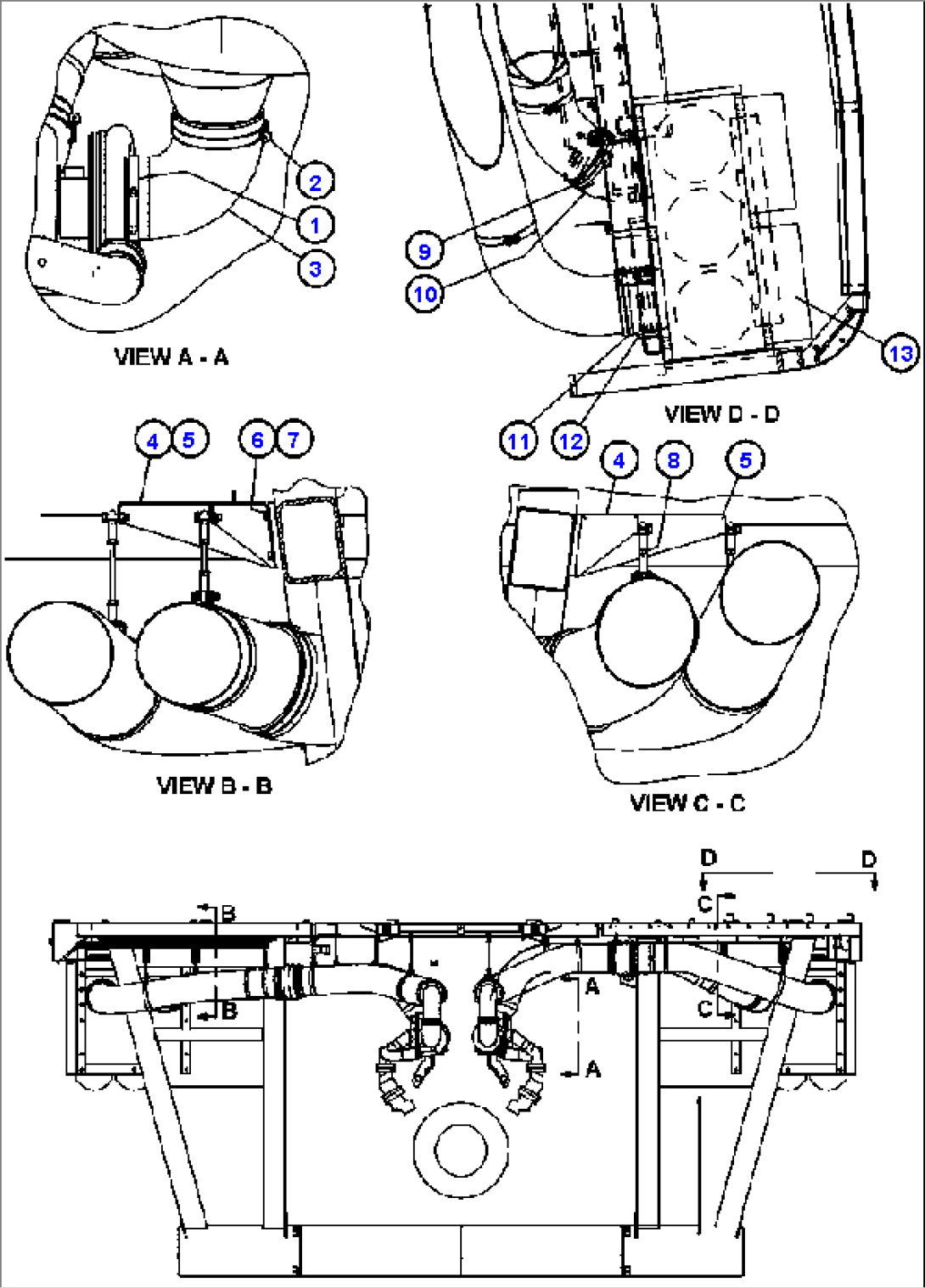

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | WB1169 | CLAMP | ||
| 2 | WB1170 | CLAMP, T-BOLT | ||
| 3 | PC0858 | ELBOW, REDUCING | ||
| 4 | EJ9920 | BRACKET, MOUNTING | ||
| 5 | EJ9919 | BRACKET, MOUNTING | ||
| 6 | MM0004 | CAPSCREW - M12 X 1.75 X 20 | ||
| 7 | MM0714 | FLAT WASHER - M12 | ||
| 8 | EJ9911 | ROD, THREADED | ||
| 9 | WB1179 | CLAMP, T-BOLT | ||
| 10 | TX6040 | ELBOW, RUBBER | ||
| 11 | WB1177 | CLAMP, T-BOLT | ||
| 12 | VW7882 | HOSE | ||
| 13 | PB6850 | AIR CLEANER ASSEMBLY (SEE INDEX) |
