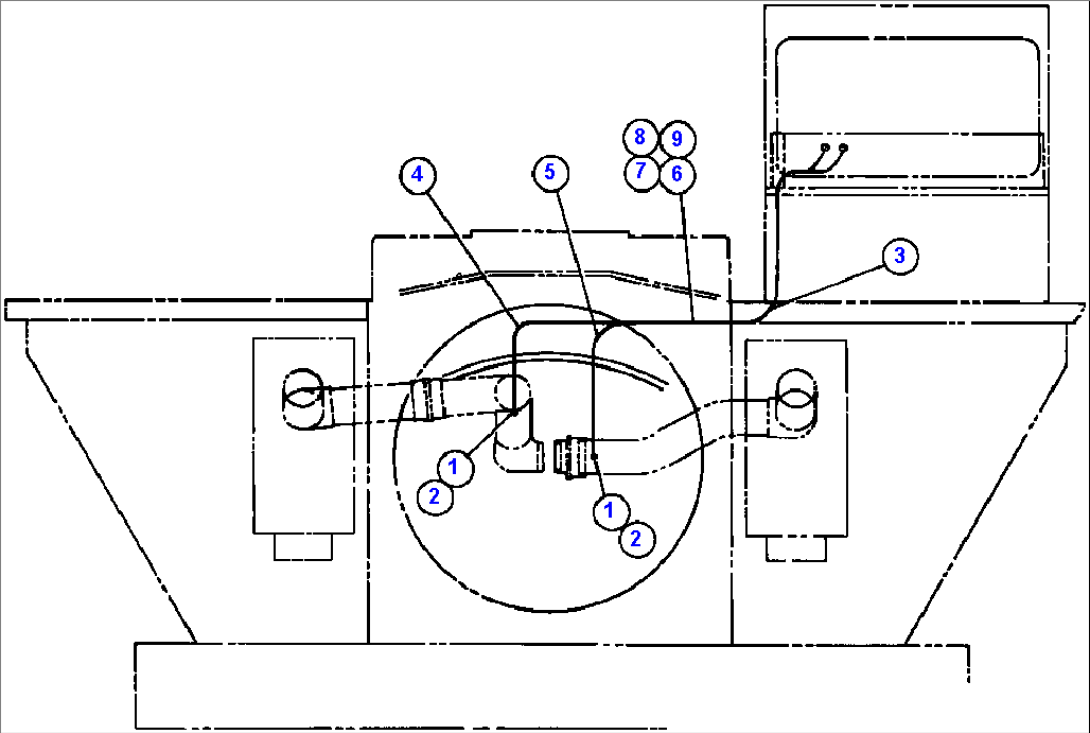

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TA0603 | FITTING, NYLON | ||
| 2 | C1231 | COUPLING, PIPE | ||
| 2 | TD9196 | FITTING, PIPE | ||
| 2 | PB0895 | FITTING, SAFETY | ||
| 3 | TF6380 | GROMMET, RUBBER | ||
| 4 | VA7929 | TUBE, NYLON | ||
| 5 | TK5563 | TUBE, NYLON | ||
| 6 | VY8331 | CLAMP | ||
| 7 | VC2195 | WELD STUD - 3/8" - 16NC X 1" | ||
| 8 | C0312 | LOCKWASHER - 3/8" | ||
| 9 | C1521 | NUT - 3/8" - 16NC |
