| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TH7238 | FILTER, RESTRICTION | ||
| 2 | C1231 | COUPLING, PIPE | ||
| 3 | TA0602 | FITTING, NYLON | ||
| 4 | VA7928 | TUBE, NYLON | ||
| 5 | TF6924 | CLAMP | ||
| 6 | MM0641 | WELD STUD - M8 X 20 | ||
| 7 | MM0460 | FLAT WASHER - M8 | ||
| 8 | MM0177 | NUT - M8 X 1.25 | ||
| 9 | VN9908 | CLAMP |
- Главная
- Каталог запчастей
- Самосвалы
- Afe47 ap 730e s/n a30125 a30126/a30128 a30129 (n.a. palladium)
- Engine group
- Air cleaner svc indicator piping & instl
Поиск по каталогу

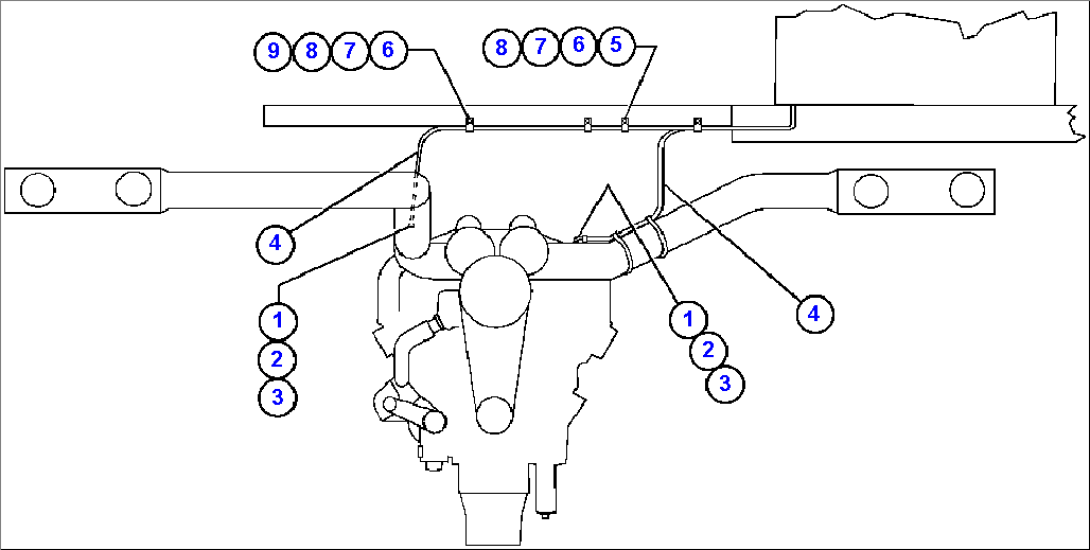

AIR CLEANER SVC INDICATOR PIPING & INSTL
