| Item | Part No. | Part Name | Qty | Serial No. |

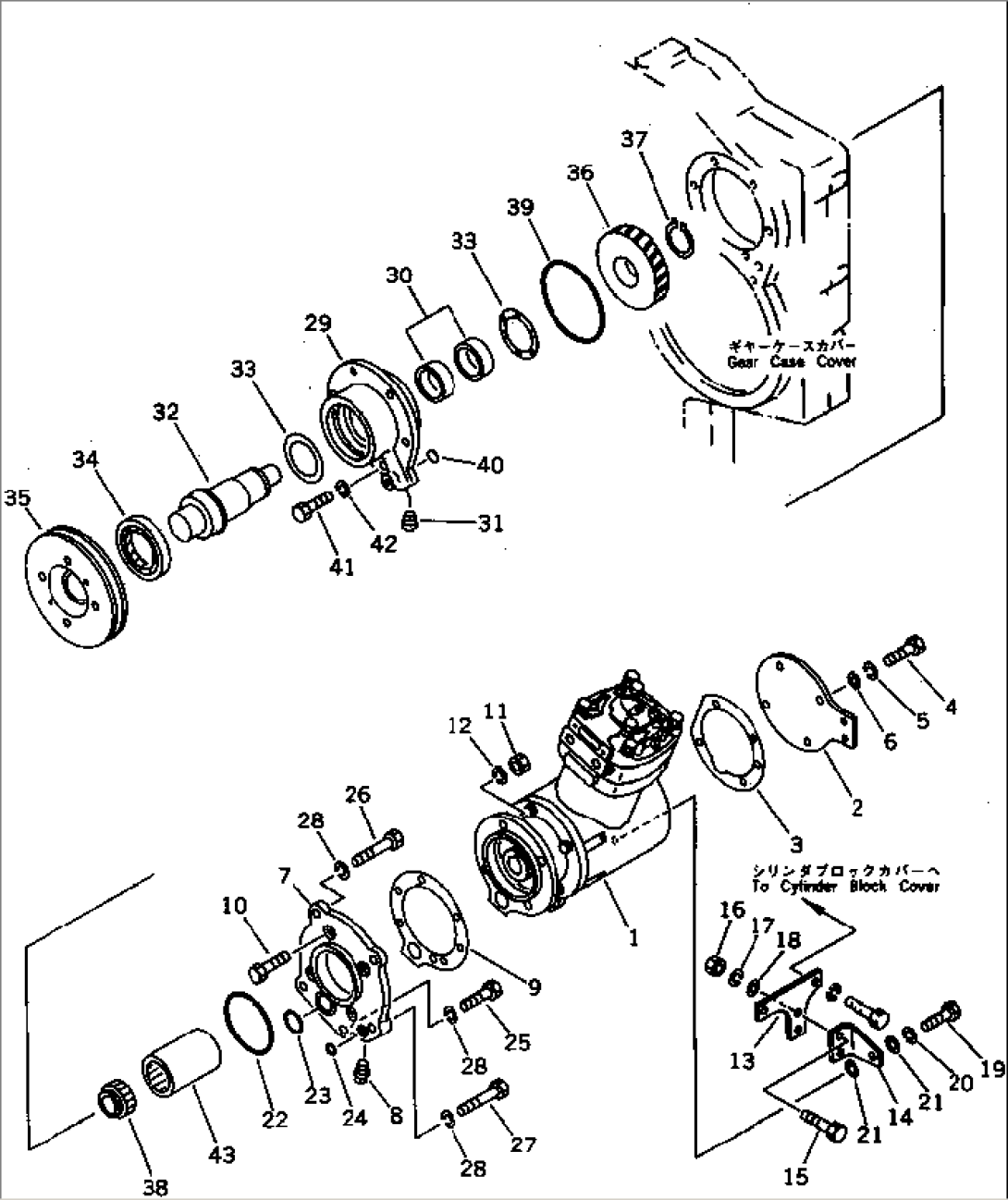

| 1 | (6162-83-6100) | AIR COMPRESSOR ASS'Y,(SEE FIG.0711) | 10277- | |
| 2 | 6162-83-6160 | COVER | 10277- | |
| 3 | 6162-83-6190 | GASKET (K8) | 10277- | |
| 4 | 02010-70725 | BOLT | 10277- | |
| 5 | 01602-01134 | WASHER,SPRING | 10277- | |
| 6 | 01640-21123 | WASHER | 10277- | |
| 7 | 6162-83-6140 | FLANGE | 10277- | |
| 8 | 07042-00108 | PLUG | 10277- | |
| 9 | 6162-83-6360 | GASKET (K8) | 11682- | |
| 9 | 6162-83-6360 | GASKET (K2, K8) | 10277-11681 | |
| 10 | 01010-30840 | BOLT | 10277- | |
| 11 | 01580-00806 | NUT | 10277- | |
| 12 | 01602-00825 | WASHER,SPRING | 10277- | |
| 13 | 6162-83-6150 | PLATE | 10277- | |
| 14 | 6162-83-6130 | BRACKET | 10277- | |
| 15 | 01010-31025 | BOLT | 10277- | |
| 16 | 01580-01008 | NUT | 10277- | |
| 17 | 01602-01030 | WASHER,SPRING | 10277- | |
| 18 | 01641-21016 | WASHER | 10277- | |
| 19 | 02010-70625 | BOLT | 10277- | |
| 20 | 01602-00929 | WASHER,SPRING | 10277- | |
| 21 | 209-62-11810 | SPACER | 10277- | |
| 22 | 07000-02085 | O-RING (K8) | 11682- | |
| 22 | 07000-02085 | O-RING (K2, K8) | 10277-11681 | |
| 23 | 07000-03028 | O-RING (K8) | 11682- | |
| 23 | 07000-03028 | O-RING (K2, K8) | 10277-11681 | |
| 24 | 07000-02015 | O-RING (K8) | 11682- | |
| 24 | 07000-02015 | O-RING (K2, K8) | 10277-11681 | |
| 25 | 01010-31240 | BOLT | 10277- | |
| 26 | 01010-31270 | BOLT | 10277- | |
| 27 | 01010-31280 | BOLT | 10277- | |
| 28 | 01602-01236 | WASHER,SPRING | 10277- | |
| 6162-23-3400 | HOUSING ASS'Y | 10277- | ||
| 29 | \6\ | HOUSING | 10277- | |
| 30 | \6\ | BUSHING | 10277- | |
| 31 | 07043-00108 | PLUG | 10277- | |
| 32 | 6162-23-3421 | SHAFT | 10277- | |
| 33 | 6162-33-6160 | METAL | 10304- | |
| 33 | \0\6684-91-2441 | METAL | 10277-10303 | |
| 34 | 6162-23-3580 | SEAL,OIL (K2) | 11683- | |
| 34 | \1\07012-00060 | SEAL,OIL (K2, K8) | 10277-11682 | |
| 35 | 6162-23-3530 | PULLEY, HARDENING | 10440- | |
| 35 | \0\6162-23-3430 | PULLEY | 10277-10439 | |
| 36 | 6162-23-3441 | GEAR | 10277- | |
| 37 | 04064-04218 | RING,SNAP | 10277- | |
| 38 | 6162-83-2380 | COUPLING,HALF | 10446- | |
| 38 | \0\6710-71-2381 | COUPLING,HALF | 10277-10445 | |
| 39 | 07000-02110 | O-RING (K2) | 12000- | |
| 39 | 07000-02110 | O-RING (K2, K8) | 11683-11999 | |
| 39 | 07000-02110 | O-RING (K8) | 11682-11682 | |
| 39 | 07000-02110 | O-RING (K2, K8) | 10277-11681 | |
| 40 | 07000-01009 | O-RING (K2) | 12000- | |
| 40 | 07000-01009 | O-RING (K2, K8) | 11683-11999 | |
| 40 | 07000-01009 | O-RING (K8) | 10277-11682 | |
| 41 | 01010-30825 | BOLT | 10277- | |
| 42 | 01602-00825 | WASHER,SPRING | 10277- | |
| 43 | 6162-83-7710 | COUPLING,DRIVE | 10446- | |
| 43 | \0\6710-71-7710 | COUPLING,DRIVE | 10277-10445 |
