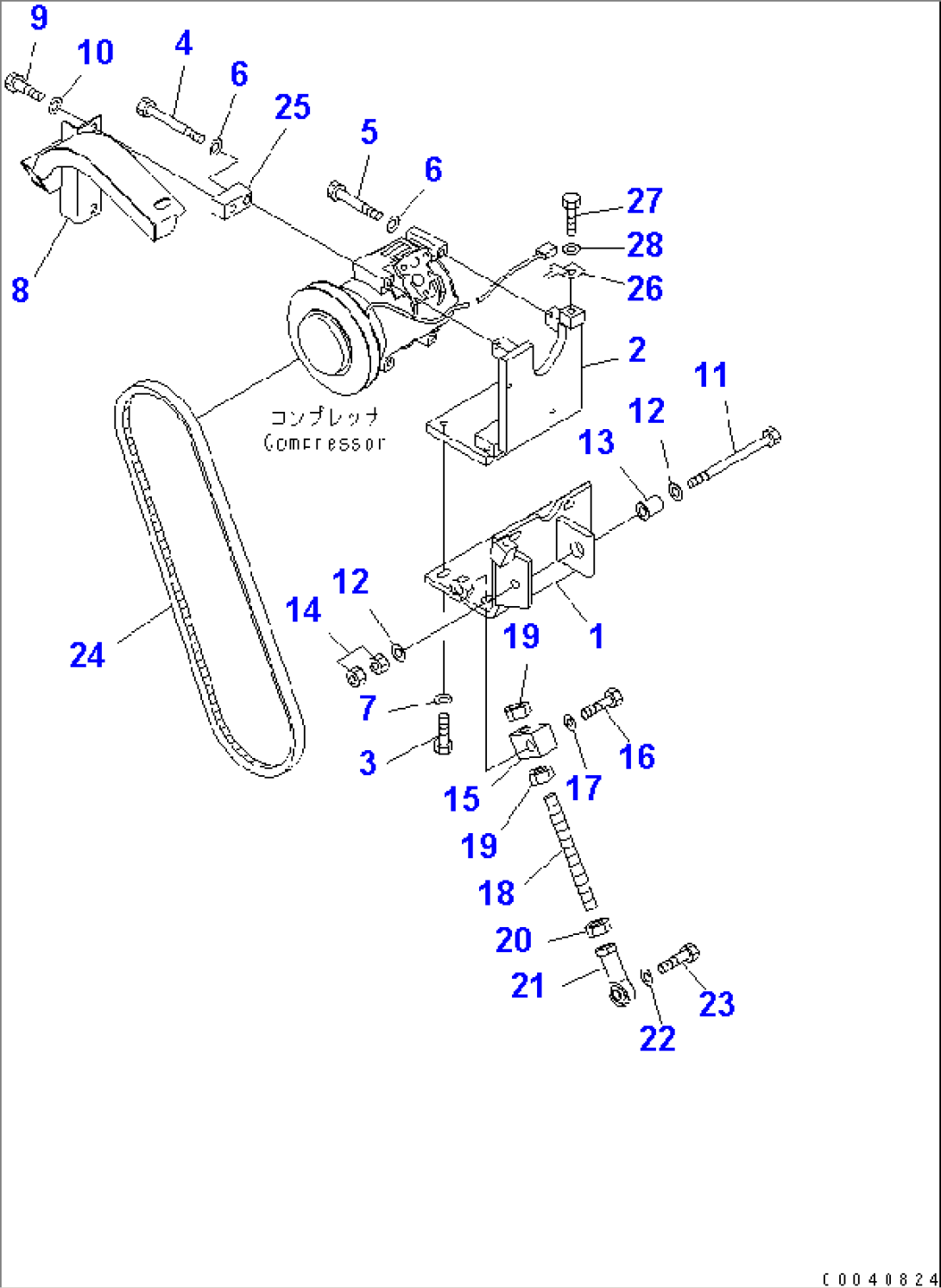

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 198-911-7380 | BRACKET | 30001- | |
| 2 | 198-911-7631 | BRACKET | 30001- | |
| 3 | 01010-80820 | BOLT | 30001- | |
| 4 | 10E-60-25120 | BOLT | 30001- | |
| 5 | 01010-80875 | BOLT | 30001- | |
| 6 | 154-61-16570 | WASHER | 30001- | |
| 7 | 01643-30823 | WASHER | 30001- | |
| 8 | 198-911-6250 | COVER | 30001- | |
| 9 | 01010-81025 | BOLT | 30001- | |
| 10 | 01643-31032 | WASHER | 30001- | |
| 11 | 01011-81265 | BOLT | 30001- | |
| 12 | 01643-31232 | WASHER | 30001- | |
| 13 | 6215-81-6150 | PIN | 30001- | |
| 14 | 01580-11210 | NUT | 30001- | |
| 15 | 198-911-8130 | PLATE | 30001- | |
| 16 | 01010-81660 | BOLT | 30001- | |
| 17 | 01643-31645 | WASHER | 30001- | |
| 18 | 198-911-8140 | ROD | 30001- | |
| 19 | 01580-11613 | NUT | 30001- | |
| 20 | 01582-11613 | NUT | 30001- | |
| 21 | 04250-81683 | END | 30001- | |
| 22 | 01643-31645 | WASHER | 30001- | |
| 23 | 427-T46-1330 | BOLT | 30001- | |
| 24 | 04120-21750 | V-BELT | 30001- | |
| 25 | 198-911-7640 | SEAT | 30001- | |
| 26 | 08193-20010 | CLIP | 30001- | |
| 27 | 01010-81020 | BOLT | 30001- | |
| 28 | 01643-31032 | WASHER | 30001- |
