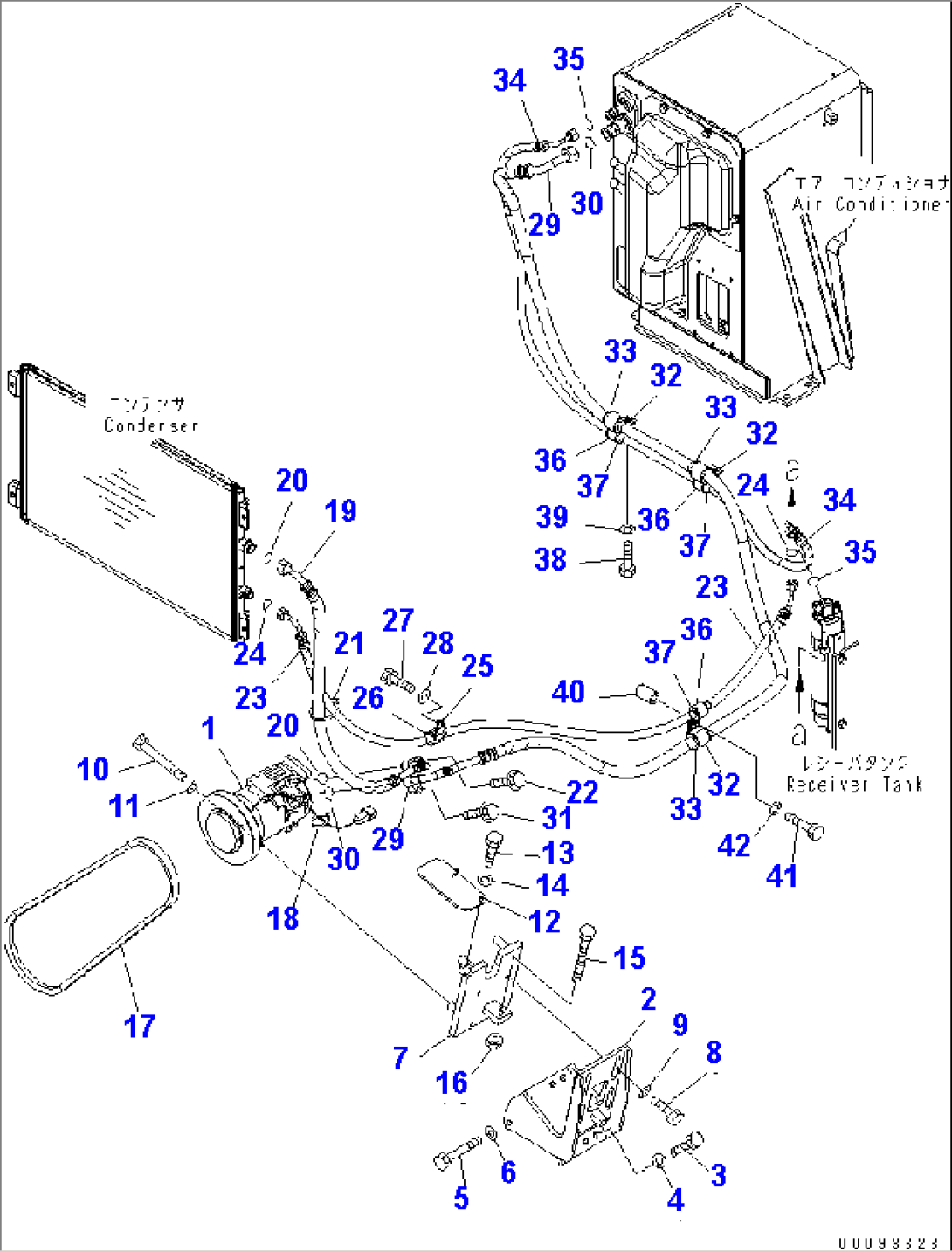

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-911-7842 | COMPRESSOR ASS'Y | 10483- | |
| 1 | 154-911-7841 | COMPRESSOR ASS'Y | 10370-10482 | |
| 1 | 154-911-7840 | COMPRESSOR ASS'Y,ASSY | 10001-10369 | |
| 2 | 154-Z11-7112 | BRACKET | 10308- | |
| 2 | 154-Z11-7111 | BRACKET | 10001-10307 | |
| 3 | 01010-81030 | BOLT | 10001- | |
| 4 | 01643-31032 | WASHER | 10001- | |
| 5 | 01010-81085 | BOLT | 10001- | |
| 6 | 01643-31032 | WASHER | 10001- | |
| 7 | 154-Z11-7122 | BRACKET | 10308- | |
| 7 | 154-Z11-7121 | BRACKET | 10001-10307 | |
| 8 | 01010-81030 | BOLT | 10001- | |
| 9 | 01643-31032 | WASHER | 10001- | |
| 10 | 01010-80875 | BOLT | 10001- | |
| 11 | 01643-30823 | WASHER | 10001- | |
| 12 | 154-Z11-7140 | COVER | 10001- | |
| 13 | 01010-80816 | BOLT | 10001- | |
| 14 | 01643-30823 | WASHER | 10001- | |
| 15 | 130-Z79-1740 | BOLT | 10001- | |
| 16 | 01580-11008 | NUT | 10001- | |
| 17 | 04120-21756 | V-BELT | 10001- | |
| 18 | 08034-00519 | BAND | 10001- | |
| 19 | 154-911-7420 | HOSE | 10001- | |
| 20 | 20Y-979-3140 | O-RING | 10001- | |
| 21 | 08034-20519 | BAND | 10001- | |
| 22 | 01435-00630 | BOLT | 10001- | |
| 23 | 154-911-7431 | HOSE | 10001- | |
| 24 | 20Y-979-3150 | O-RING | 10001- | |
| 25 | 04434-52112 | CLIP | 10001- | |
| 26 | 07095-20314 | CUSHION | 10001- | |
| 27 | 01010-81230 | BOLT | 10001- | |
| 28 | 01643-31232 | WASHER | 10001- | |
| 29 | 154-911-7441 | HOSE | 10001- | |
| 30 | 20Y-979-3130 | O-RING | 10001- | |
| 31 | 01435-00630 | BOLT | 10001- | |
| 32 | 04434-52712 | CLIP | 10001- | |
| 33 | 07095-20420 | CUSHION | 10001- | |
| 34 | 154-911-7411 | HOSE | 10001- | |
| 35 | 20Y-979-3150 | O-RING | 10001- | |
| 36 | 04434-52112 | CLIP | 10001- | |
| 37 | 07095-20314 | CUSHION | 10001- | |
| 38 | 01010-81230 | BOLT | 10001- | |
| 39 | 01643-31232 | WASHER | 10001- | |
| 40 | 581-60-17860 | SPACER | 10001- | |
| 41 | 01011-81210 | BOLT | 10001- | |
| 42 | 01643-31232 | WASHER | 10001- |
