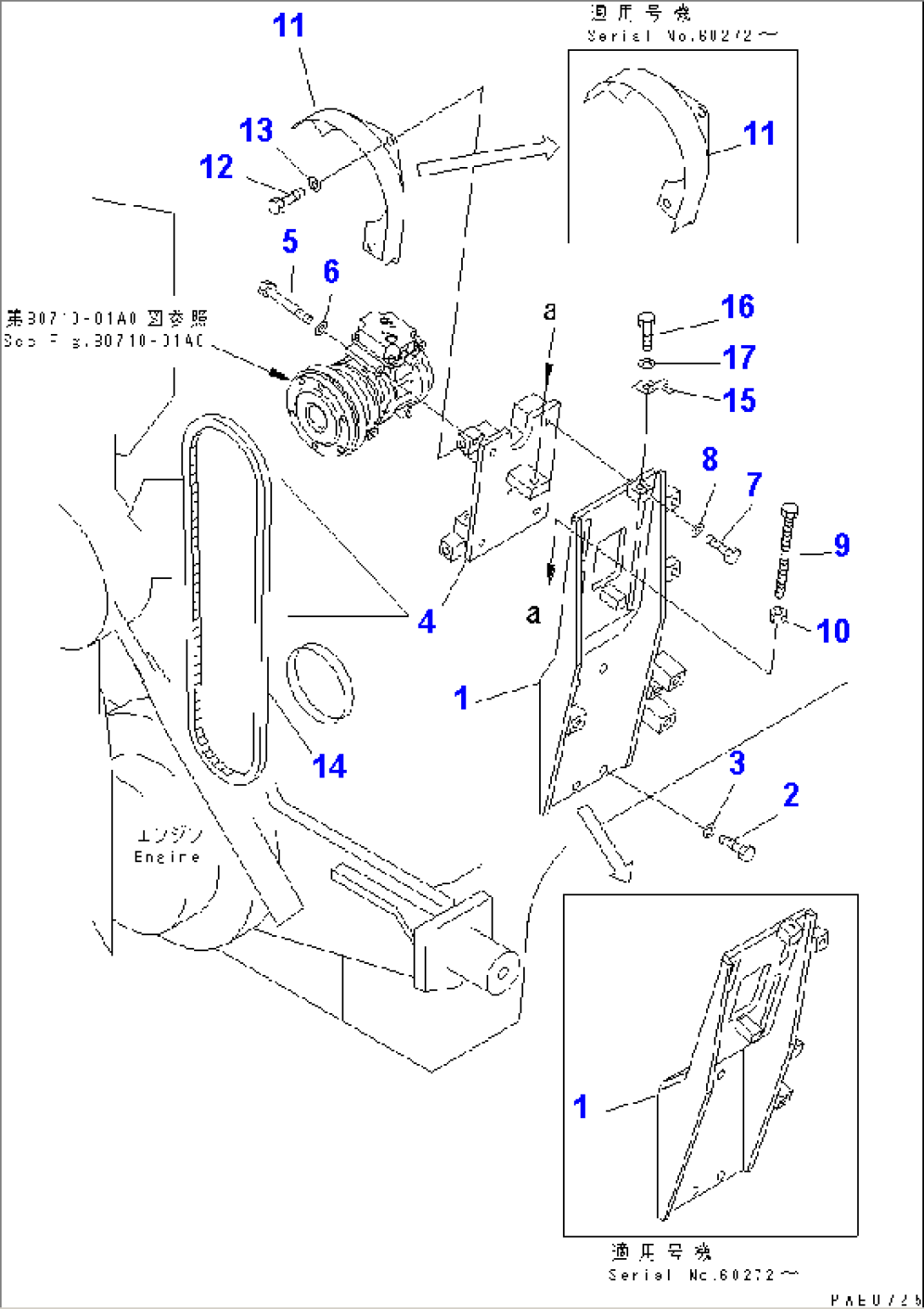

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-911-1412 | BRACKET | 60272- | |
| 1 | \0\17A-911-1411 | BRACKET | 60001-60271 | |
| 2 | 01010-81030 | BOLT | 60001- | |
| 3 | 01643-31032 | WASHER | 60001- | |
| 4 | 17A-911-1421 | BRACKET | 60001- | |
| 5 | 01010-80885 | BOLT | 60001- | |
| 6 | 01643-30823 | WASHER | 60001- | |
| 7 | 01010-81025 | BOLT | 60001- | |
| 8 | 203-54-56970 | WASHER | 60001- | |
| 9 | 130-Z79-1740 | BOLT | 60001- | |
| 10 | 01580-11008 | NUT | 60001- | |
| 11 | 17A-911-1432 | COVER | 60272- | |
| 11 | \0\17A-911-1431 | COVER | 60001-60271 | |
| 12 | 01010-81020 | BOLT | 60001- | |
| 13 | 01643-31032 | WASHER | 60001- | |
| 14 | 04120-21735 | V-BELT | 60001- | |
| 15 | 08053-01510 | CLIP | 60001- | |
| 16 | 01010-81020 | BOLT | 60001- | |
| 17 | 01643-31032 | WASHER | 60001- |
