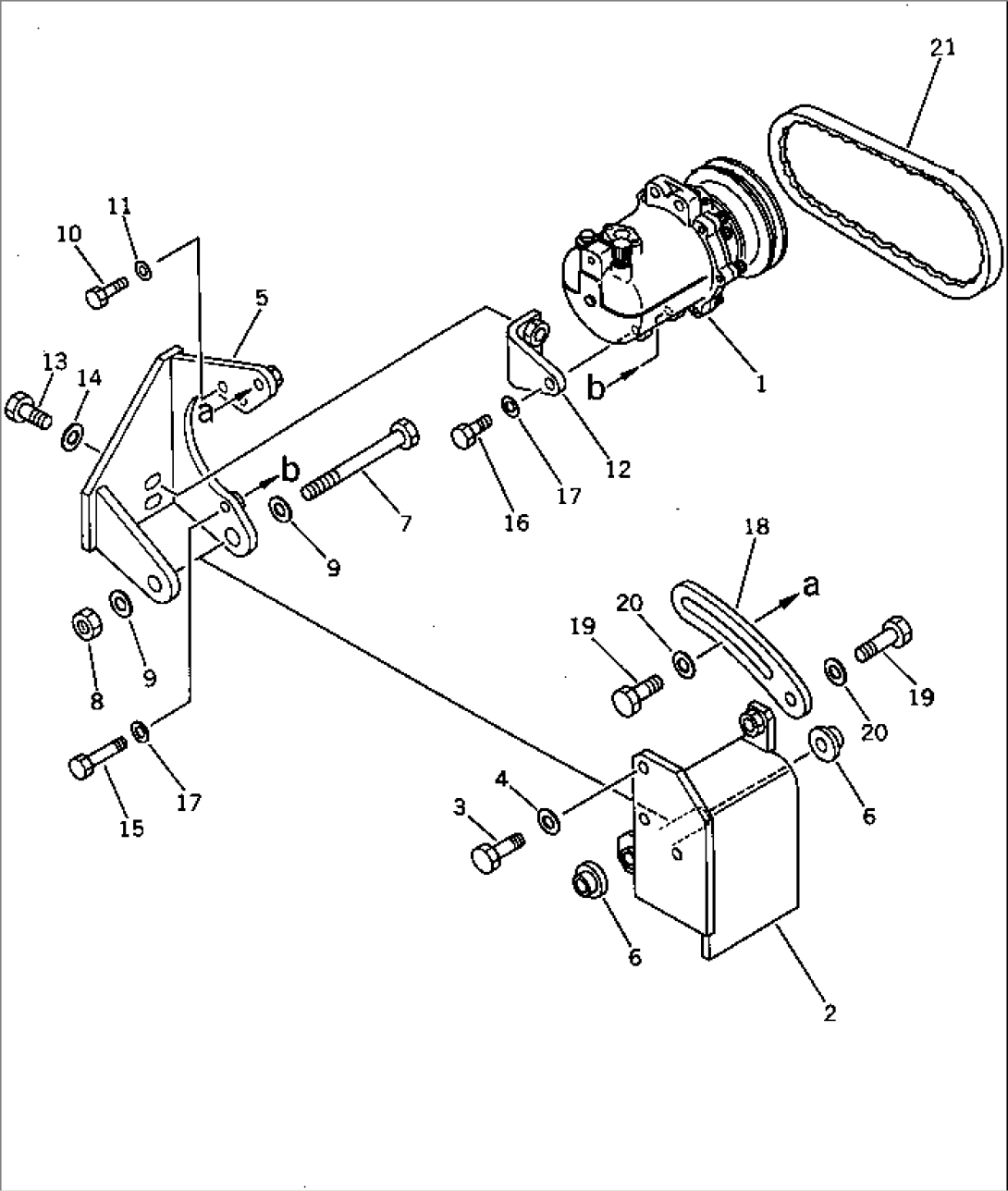

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (421-07-11712) | COMPRESSOR ASS'Y | 10001-@ | |
| 2 | 424-07-11210 | BRACKET | 10001-19999 | |
| 3 | 01010-51235 | BOLT | 10001-@ | |
| 4 | 01643-31232 | WASHER | 10001-@ | |
| 5 | 424-07-11220 | BRACKET | 10001-19999 | |
| 6 | 419-07-11760 | COLLAR | 10001-19999 | |
| 7 | 01011-51245 | BOLT | 10001-19999 | |
| 8 | 01580-11210 | NUT | 10001-19999 | |
| 9 | 01643-31232 | WASHER | 10001-19999 | |
| 10 | 01010-51030 | BOLT | 10001-19999 | |
| 11 | 01643-31032 | WASHER | 10001-19999 | |
| 12 | 424-07-11230 | BRACKET | 10001-19999 | |
| 13 | 01010-51030 | BOLT | 10001-19999 | |
| 14 | 01643-31032 | WASHER | 10001-19999 | |
| 15 | 01010-51050 | BOLT | 10001-19999 | |
| 16 | 01010-51025 | BOLT | 10001-19999 | |
| 17 | 01643-31032 | WASHER | 10001-19999 | |
| 18 | 424-07-11240 | PLATE,ADJUST | 10001-19999 | |
| 19 | 01010-51235 | BOLT | 10001-19999 | |
| 20 | 01643-31232 | WASHER | 10001-19999 | |
| 21 | 04120-21744 | V-BELT | 10001-@ |
