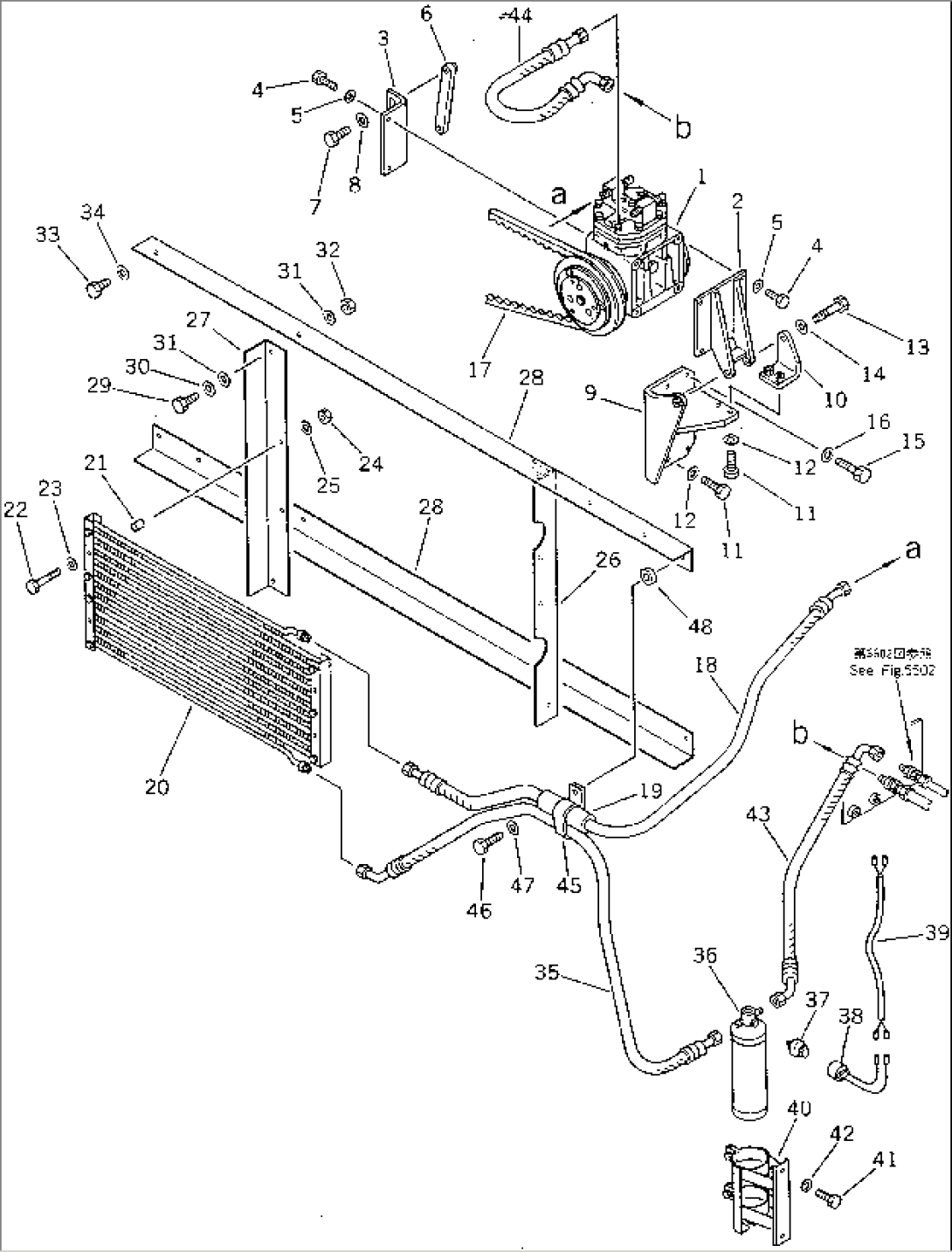

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (566-07-41311) | COMPRESSOR ASS'Y | 2131- | |
| 1 | \0\566-07-41310 | COMPRESSOR ASS'Y | 2001-2130 | |
| 1 | 581-07-14700 | CLUTCH,MAGNETIC | 2131- | |
| 1 | \0\205-978-6520 | CLUTCH,MAGNETIC | 2001-2130 | |
| 2 | 566-07-81121 | BRACKET | 2001- | |
| 3 | 566-07-81140 | BRACKET | 2001- | |
| 4 | 01010-50820 | BOLT | 2001- | |
| 5 | 01643-30823 | WASHER | 2001- | |
| 6 | 425-963-1290 | PLATE | 2001- | |
| 7 | 01010-51025 | BOLT | 2001- | |
| 8 | 01643-31032 | WASHER | 2001- | |
| 9 | 566-07-81111 | BRACKET | 2001- | |
| 10 | 566-07-81150 | BRACKET | 2001- | |
| 11 | 01010-51030 | BOLT | 2001- | |
| 12 | 01643-31032 | WASHER | 2001- | |
| 13 | 01090-51090 | BOLT | 2001- | |
| 14 | 01643-31032 | WASHER | 2001- | |
| 15 | 01010-51040 | BOLT | 2001- | |
| 16 | 01643-31032 | WASHER | 2001- | |
| 17 | 04120-21730 | V-BELT | 2001- | |
| 18 | 566-07-41340 | HOSE | 2001- | |
| 19 | 566-07-11830 | INSULATOR | 2001- | |
| 20 | 565-95-21120 | CONDENSER ASS'Y | 2001- | |
| 21 | 566-07-11520 | BUSHING | 2001- | |
| 22 | 01010-50655 | BOLT | 2001- | |
| 23 | 01642-20608 | WASHER | 2001- | |
| 24 | 01580-10605 | NUT | 2001- | |
| 25 | 01643-30623 | WASHER | 2001- | |
| 26 | 566-07-41460 | ANGLE | 2001- | |
| 27 | 566-07-11140 | ANGLE | 2001- | |
| 28 | 566-07-11150 | ANGLE | 2001- | |
| 29 | 01010-51020 | BOLT | 2001- | |
| 30 | 01643-31032 | WASHER | 2001- | |
| 31 | 01642-11016 | WASHER | 2001- | |
| 32 | 01580-11008 | NUT | 2001- | |
| 33 | 01010-51020 | BOLT | 2001- | |
| 34 | 01643-31032 | WASHER | 2001- | |
| 35 | 569-07-41350 | HOSE | 2001- | |
| 36 | 581-07-14810 | DRYER ASS'Y | 2060- | |
| 36 | \0\566-07-11240 | RECEIVER | 2001-2059 | |
| 37 | 581-07-14820 | SWITCH,PRESSURE | 2001- | |
| 38 | 581-07-14830 | COVER ASS'Y | 2001- | |
| 39 | 569-07-33180 | WIRE ASS'Y | 2001- | |
| 40 | 566-07-11530 | BRACKET | 2001- | |
| 41 | 01010-50616 | BOLT | 2001- | |
| 42 | 01643-30623 | WASHER | 2001- | |
| 43 | 566-07-41361 | HOSE | 2001- | |
| 44 | 566-07-41331 | HOSE | 2001- | |
| 45 | 566-07-11780 | CLIP | 2001- | |
| 46 | 01010-51035 | BOLT | 2601- | |
| 46 | 01010-51020 | BOLT | 2001-2600 | |
| 47 | 01643-31032 | WASHER | 2001- | |
| 48 | 560-43-15220 | WASHER | 2601- |
