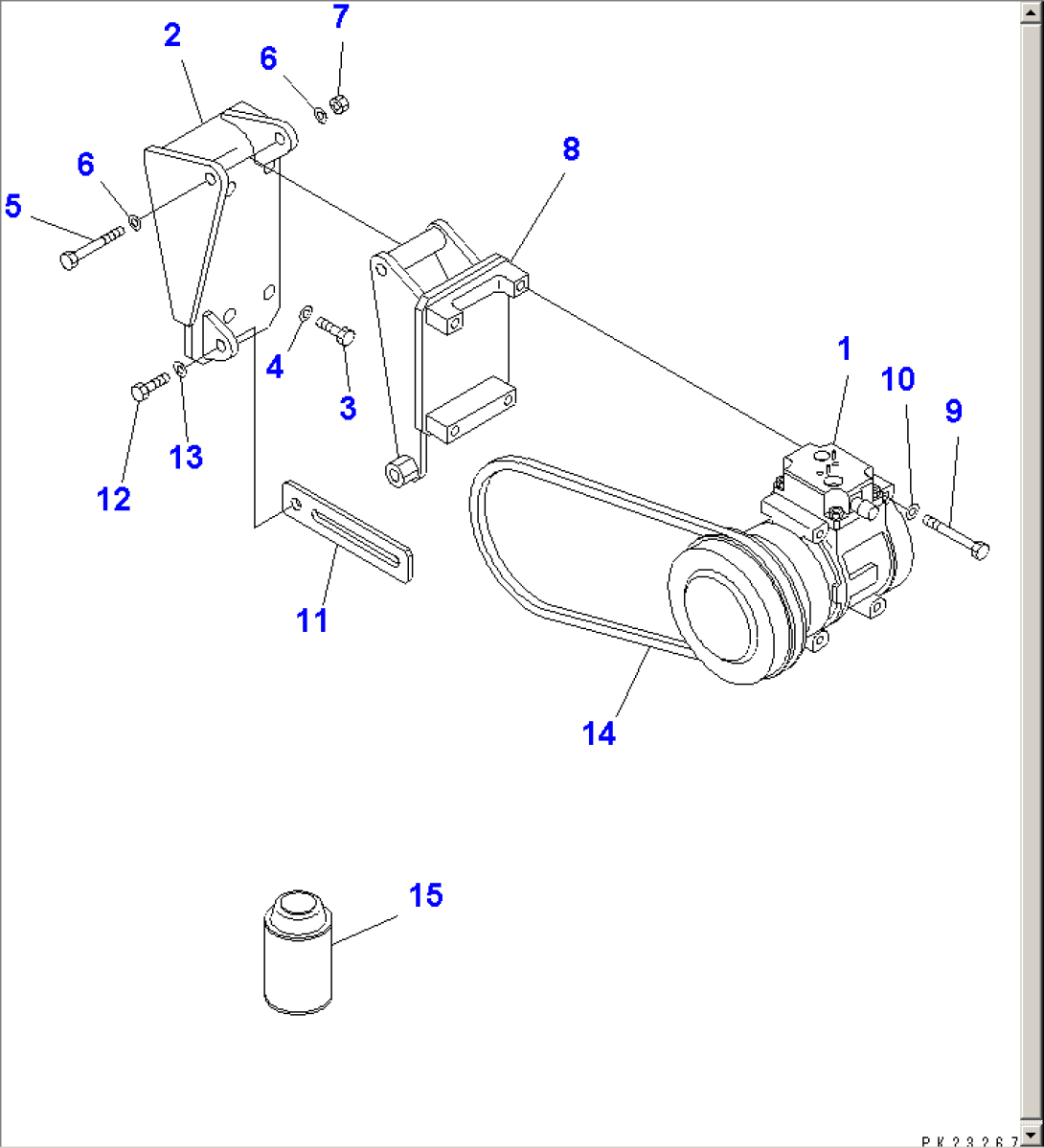

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-07-21180 | COMPRESSOR ASS'Y | 4626- | |
| 2 | 569-07-63211 | BRACKET | 4192- | |
| 3 | 01010-51025 | BOLT | 4001- | |
| 4 | 01643-31032 | WASHER | 4001- | |
| 5 | 01011-81225 | BOLT | 4192- | |
| 6 | 01643-31232 | WASHER | 4001- | |
| 7 | 01580-11210 | NUT | 4192- | |
| 8 | 569-07-63221 | BRACKET | 4192- | |
| 9 | 01010-50885 | BOLT | 4192- | |
| 10 | 01643-30823 | WASHER | 4001- | |
| 11 | 569-07-63260 | BRACKET | 4192- | |
| 12 | 01010-51030 | BOLT | 4192- | |
| 13 | 01643-31032 | WASHER | 4192- | |
| 14 | 04120-21742 | V-BELT | 4192- | |
| 15 | 20Y-979-3310 | DRUM | 4192- |
