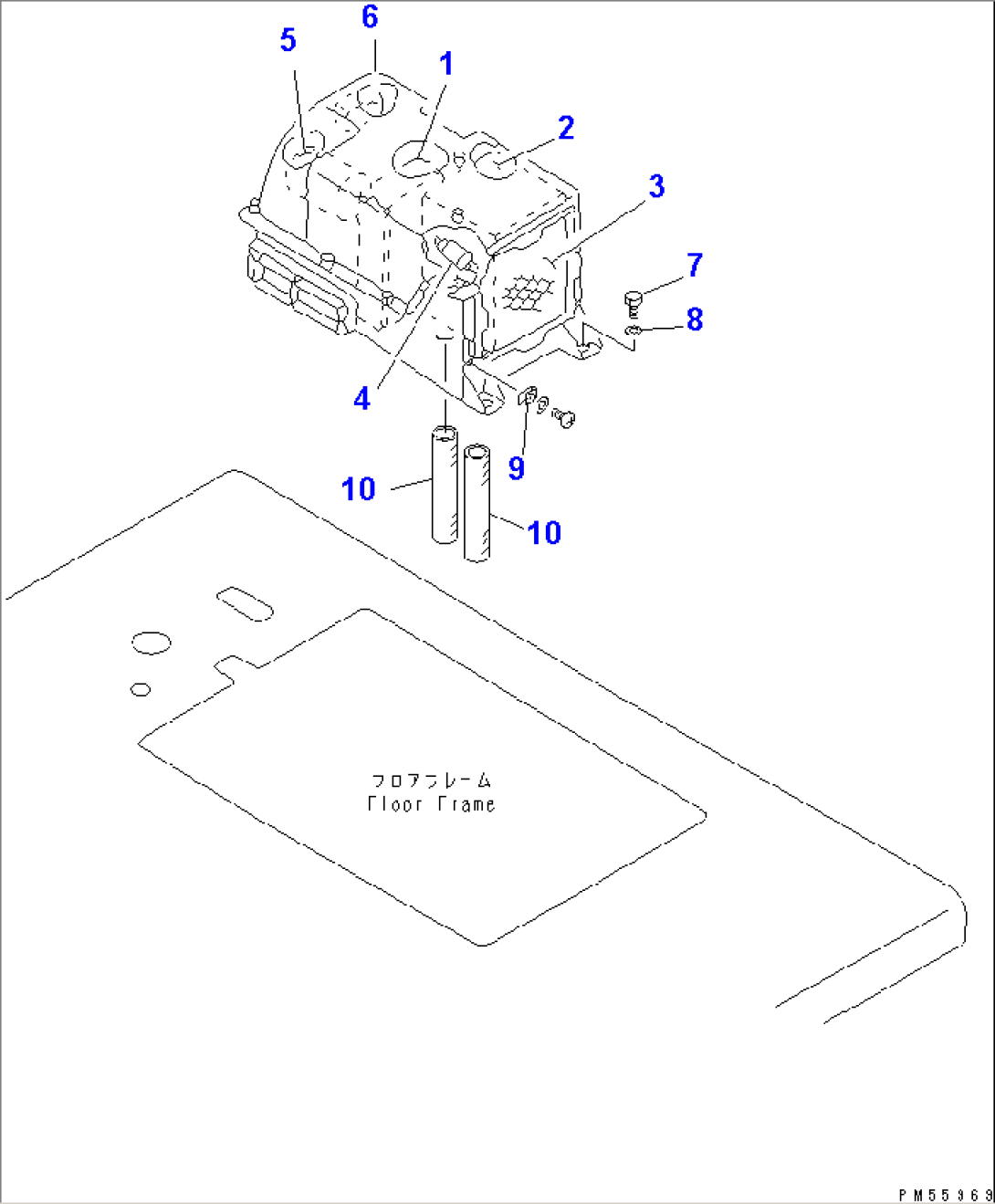

| Item | Part No. | Part Name | Qty | Serial No. |
| 232-809-7511 | COOLING UNIT ASS'Y | 2001-3321 | ||
| 1 | 232-809-7340 | UNIT SUB ASS'Y | 2001-3321 | |
| 2 | 232-809-7350 | EVAPORATOR SUB A. | 2001-3321 | |
| 3 | 232-809-7360 | FILTER,AIR | 2001-3321 | |
| 4 | 232-809-7370 | THERMOSTAT | 2001-3321 | |
| 5 | 232-809-7381 | MOTOR ASS'Y | 2001-3321 | |
| ND1162210520 | FAN,(NOT SHOWN) | 2001-3321 | ||
| 6 | 232-809-7391 | RESISTOR,BLOWER | 2001-3321 | |
| 7 | 01010-51020 | BOLT | 2001-3321 | |
| 8 | 01643-31032 | WASHER | 2001-3321 | |
| 9 | 23B-809-2140 | CLAMP | 2001-3321 | |
| 10 | 07260-21414 | HOSE | 2001-3321 |
