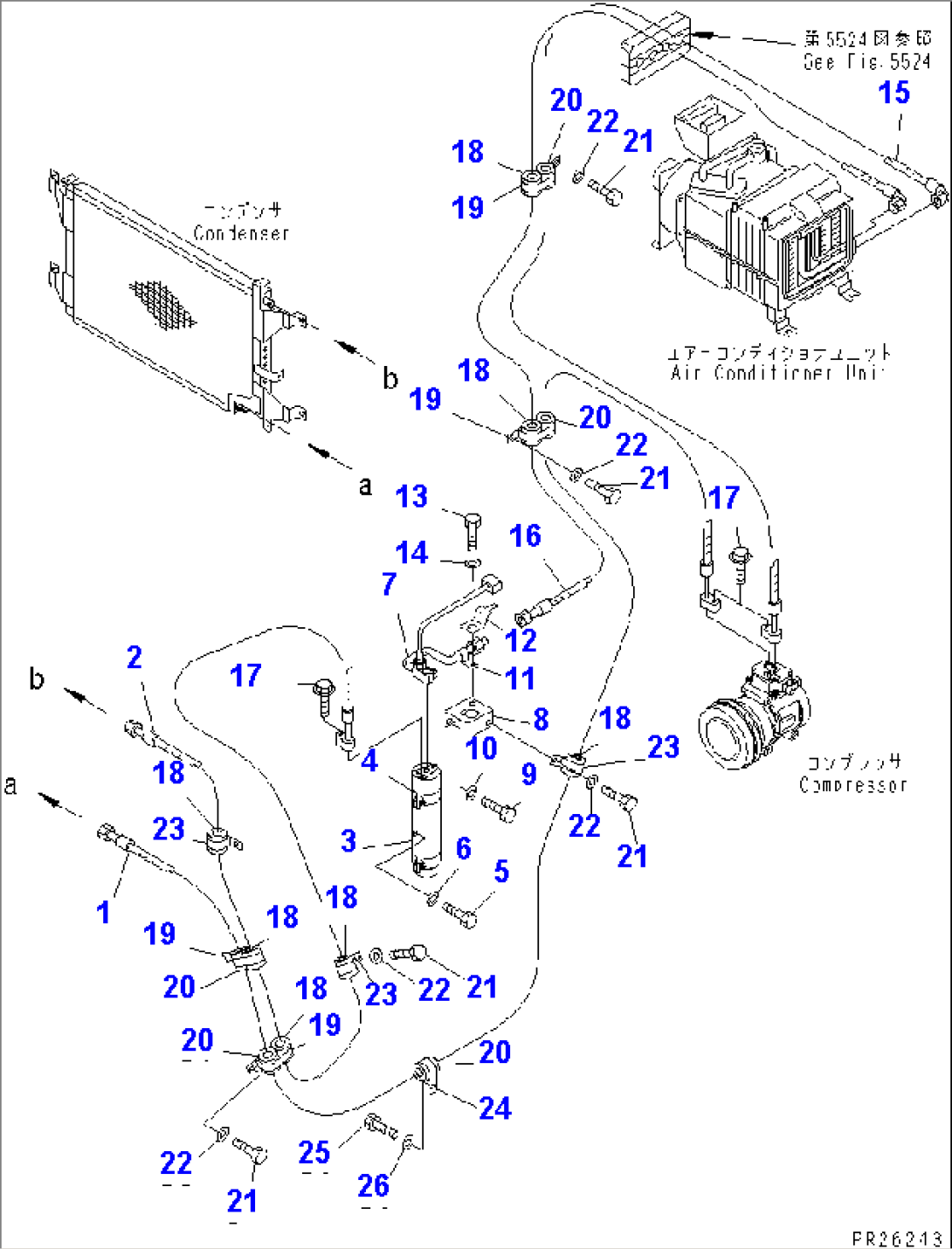

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-07-63450 | HOSE (KIT) | 4626- | |
| 2 | 569-07-63331 | HOSE (KIT) | 4407- | |
| 3 | 20Y-979-3120 | TANK (KIT) | 4192- | |
| 4 | 569-07-61811 | HOLDER (KIT) | 4407- | |
| 5 | 01010-80865 | BOLT | 4407- | |
| 6 | 01643-30823 | WASHER | 4001- | |
| 7 | 569-07-61461 | SWITCH ASS'Y (KIT) | 4001- | |
| 7 | ND443440-0030 | SWITCH | 4001- | |
| 7 | ND949142-0010 | O-RING,SWITCH | 4001- | |
| 7 | 20Y-979-3150 | O-RING,TUBE | 4001- | |
| 8 | 566-07-6A921 | BRACKET | 4626- | |
| 9 | 01010-81025 | BOLT | 4407- | |
| 10 | 01643-31032 | WASHER | 4407- | |
| 11 | 04434-00808 | CLIP | 4626- | |
| 12 | 08053-01512 | CLIP | 4001- | |
| 13 | 01010-81016 | BOLT | 4001- | |
| 14 | 01643-31032 | WASHER | 4001- | |
| 15 | 569-07-63322 | HOSE (KIT) | 4626- | |
| 16 | 569-07-63313 | HOSE (KIT) | 4626- | |
| 17 | 01435-00625 | BOLT | 4407- | |
| 18 | 566-06-41290 | INSULATOR | 4407- | |
| 19 | 582-35-11170 | CLIP | 4407- | |
| 20 | 561-43-41620 | INSULATOR | 4407- | |
| 21 | 01010-81020 | BOLT | 4407- | |
| 22 | 01643-31032 | WASHER | 4407- | |
| 23 | 08036-02514 | CLIP | 4407- | |
| 24 | 08036-03014 | CLIP | 4407- | |
| 25 | 01010-80816 | BOLT | 4626- | |
| 26 | 01643-30823 | WASHER | 4626- |
