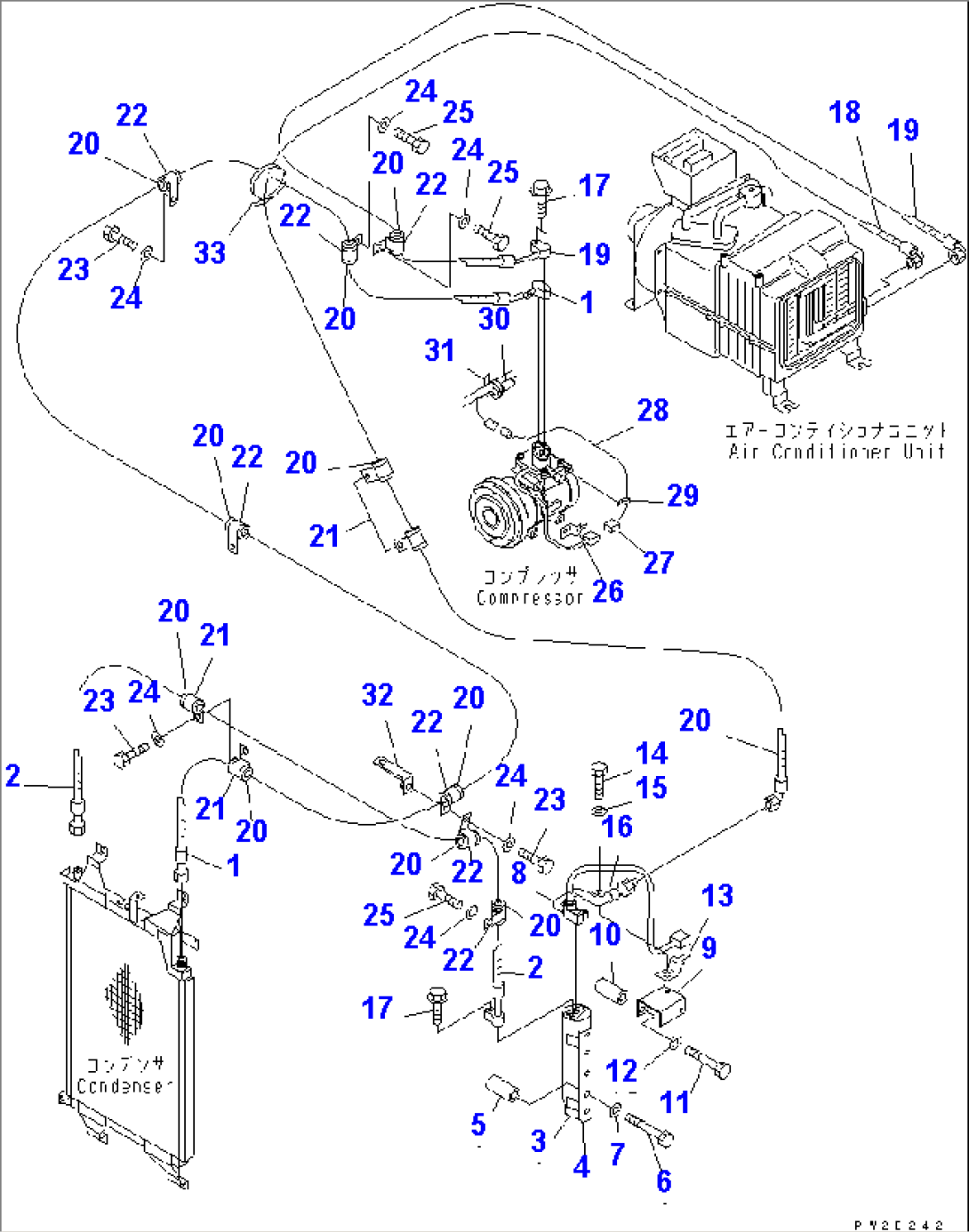

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-07-6A342 | HOSE | 5485- | |
| 1 | 20Y-979-3140 | O-RING | 5485- | |
| 2 | 566-07-6A351 | HOSE | 5485- | |
| 2 | 20Y-979-3150 | O-RING | 5485- | |
| 3 | 20Y-979-3120 | TANK | 5267- | |
| 4 | 569-07-61811 | HOLDER | 5267- | |
| 5 | 431-07-12540 | SPACER | 6001- | |
| 6 | 01010-80865 | BOLT | 6001- | |
| 7 | 01643-30823 | WASHER | 5001- | |
| 8 | 569-07-61461 | SWITCH ASS'Y | 5267- | |
| 8 | ND443440-0030 | SWITCH | 5267- | |
| 8 | ND949142-0010 | O-RING,SWITCH | 5267- | |
| 8 | 20Y-979-3150 | O-RING,TUBE | 5267- | |
| 9 | 566-07-6A210 | BRACKET | 5001- | |
| 10 | 431-07-12540 | SPACER | 6001- | |
| 11 | 01010-80865 | BOLT | 6001- | |
| 12 | 01643-30823 | WASHER | 6001- | |
| 13 | 08053-01512 | CLIP | 5001- | |
| 14 | 01010-51020 | BOLT | 5001- | |
| 15 | 01643-31032 | WASHER | 5001- | |
| 16 | 04434-50810 | CLIP | 6100- | |
| 16 | 04434-50808 | CLIP | 5786-6099 | |
| 17 | 01435-00625 | BOLT | 5485- | |
| 18 | 566-07-6A312 | HOSE | 5680- | |
| 18 | 20Y-979-3150 | O-RING | 5680- | |
| 19 | 566-07-6A334 | HOSE | 6001- | |
| 19 | 20Y-979-3130 | O-RING | 6001- | |
| 20 | 566-06-41290 | INSULATOR | 6001- | |
| 21 | 08036-02514 | CLIP | 5001- | |
| 22 | 08036-03014 | CLIP | 6001- | |
| 23 | 01010-81020 | BOLT | 6001- | |
| 24 | 01643-31032 | WASHER | 5485- | |
| 25 | 01010-81016 | BOLT | 6001- | |
| 26 | 08053-01512 | CLIP | 6100- | |
| 26 | 08053-01510 | CLIP | 5485-6099 | |
| 27 | 08020-10000 | DIODE | 6001- | |
| 28 | 566-07-6A181 | WIRING HARNESS | 6001- | |
| 29 | 08036-10814 | CLIP | 6100- | |
| 29 | 08036-10810 | CLIP | 6001-6099 | |
| 30 | 08020-10000 | DIODE | 6001- | |
| 31 | 08034-00519 | BAND | 6001- | |
| 32 | 195-06-41930 | BRACKET | 6001- | |
| 33 | 08034-00519 | BAND | 6001- |
