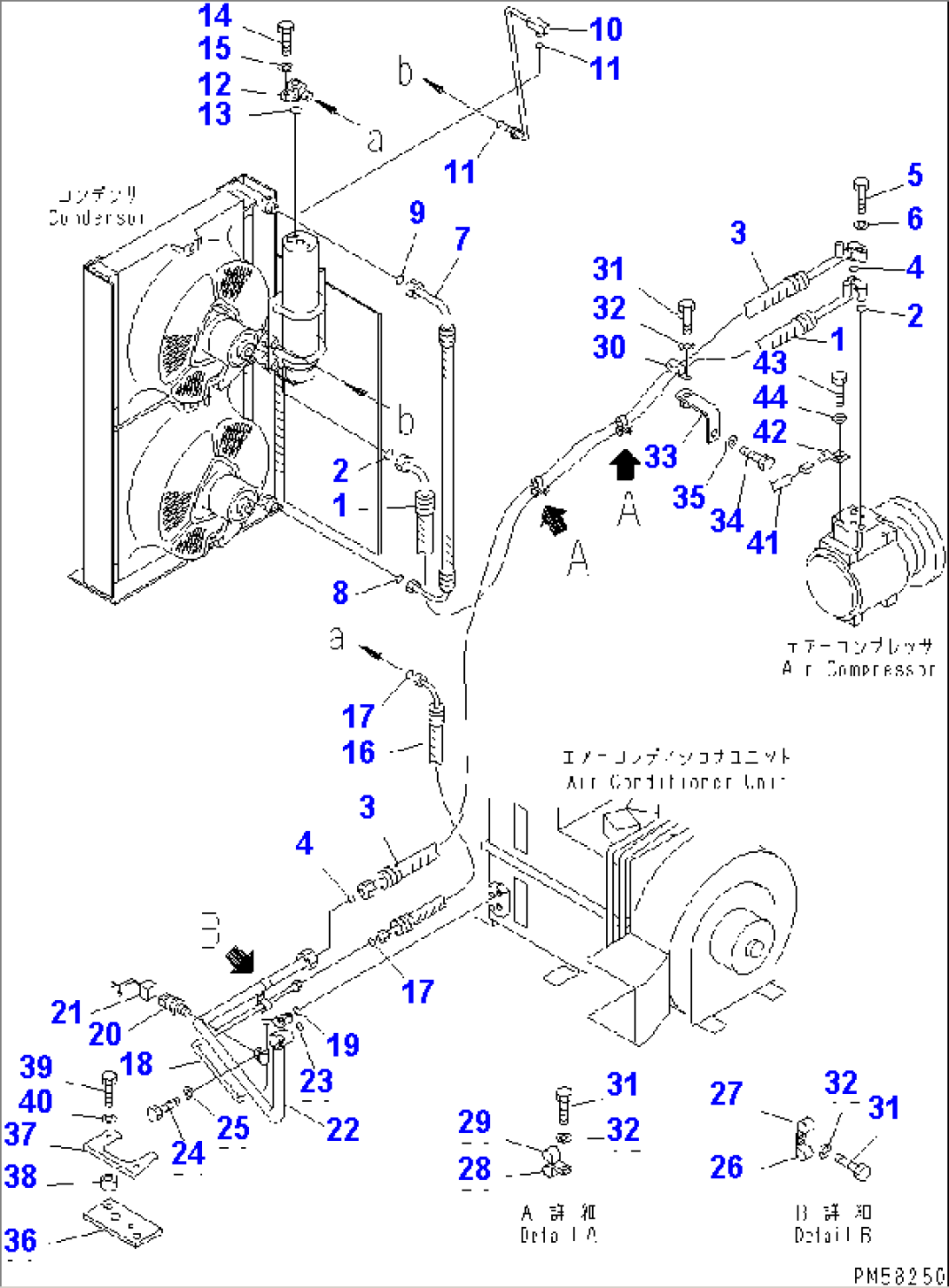

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 273-809-6290 | HOSE | 31001- | |
| 2 | 20Y-979-3140 | O-RING | 31001- | |
| 3 | 273-809-6280 | HOSE | 31001- | |
| 4 | 20Y-979-3130 | O-RING | 31001- | |
| 5 | 01010-80630 | BOLT | 31001- | |
| 6 | 01643-30623 | WASHER | 31001- | |
| 7 | 234-809-6521 | HOSE | 31001- | |
| 8 | 20Y-979-3150 | O-RING | 31001- | |
| 9 | 20Y-979-3140 | O-RING | 31001- | |
| 10 | 273-809-6250 | TUBE | 31001- | |
| 11 | 20Y-979-3150 | O-RING | 31001- | |
| 12 | 17A-911-1671 | JOINT | 31001- | |
| 13 | 20Y-979-3150 | O-RING | 31001- | |
| 14 | 01010-80620 | BOLT | 31001- | |
| 15 | 01643-30623 | WASHER | 31001- | |
| 16 | 273-809-6210 | HOSE | 31001- | |
| 17 | 20Y-979-3150 | O-RING | 31001- | |
| 18 | 273-809-6240 | TUBE | 31001- | |
| 19 | 20Y-979-3150 | O-RING | 31001- | |
| 20 | 421-07-21810 | SWITCH,PRESSURE | 31001- | |
| 21 | 421-07-21820 | WIRING HARNESS | 31001- | |
| 22 | 273-809-6230 | TUBE | 31001- | |
| 23 | 20Y-979-3130 | O-RING | 31001- | |
| 24 | 01010-80630 | BOLT | 31001- | |
| 25 | 01643-30623 | WASHER | 31001- | |
| 26 | 08036-00814 | CLIP | 31001- | |
| 27 | 424-06-12740 | CLIP | 31001- | |
| 28 | 04434-51910 | CLIP | 31001- | |
| 29 | 04434-52210 | CLIP | 31001- | |
| 30 | 421-07-11550 | CLIP | 31001- | |
| 31 | 01010-81020 | BOLT | 31001- | |
| 32 | 01643-31032 | WASHER | 31001- | |
| 33 | 273-809-6260 | STAY | 31001- | |
| 34 | 01010-81220 | BOLT | 31001- | |
| 35 | 01643-31232 | WASHER | 31001- | |
| 36 | 421-07-23950 | PLATE | 31001- | |
| 37 | 421-07-23980 | SHEET | 31001- | |
| 38 | 421-54-13850 | SPACER | 31001- | |
| 39 | 01010-80630 | BOLT | 31001- | |
| 40 | 01643-30623 | WASHER | 31001- | |
| 41 | 273-809-6310 | HARNESS | 31001- | |
| 42 | 08053-01510 | CLIP | 31001- | |
| 43 | 01010-81016 | BOLT | 31001- | |
| 44 | 01643-31032 | WASHER | 31001- |
