| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-07-21530 | CONDENSER ASS'Y | 21001- | |
| 2 | 01580-10806 | NUT | 21001- | |
| 3 | 01643-30823 | WASHER | 21001- | |
| 4 | 20Y-979-3120 | TANK | 21001- | |
| 5 | 07283-36155 | CLIP | 21001- | |
| 6 | 01597-01009 | NUT | 21001- | |
| 7 | 01643-31032 | WASHER | 21001- |
- Главная
- Каталог запчастей
- Каток
- Jv130wh 1 s/n 21001 up
- Frame and body
- Air conditioner (3/10) (condensor and mounting parts)
Поиск по каталогу

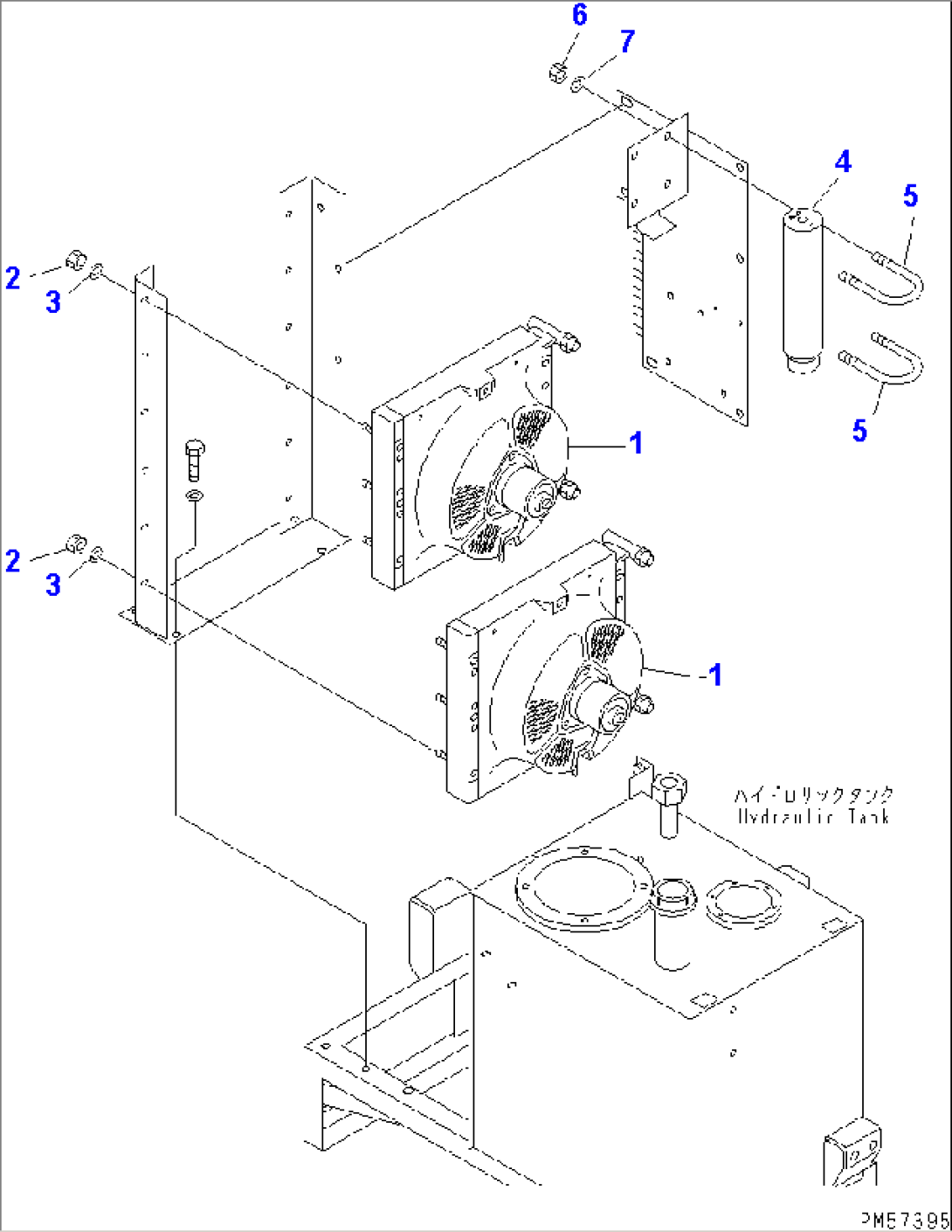

AIR CONDITIONER (3/10) (CONDENSOR AND MOUNTING PARTS)
