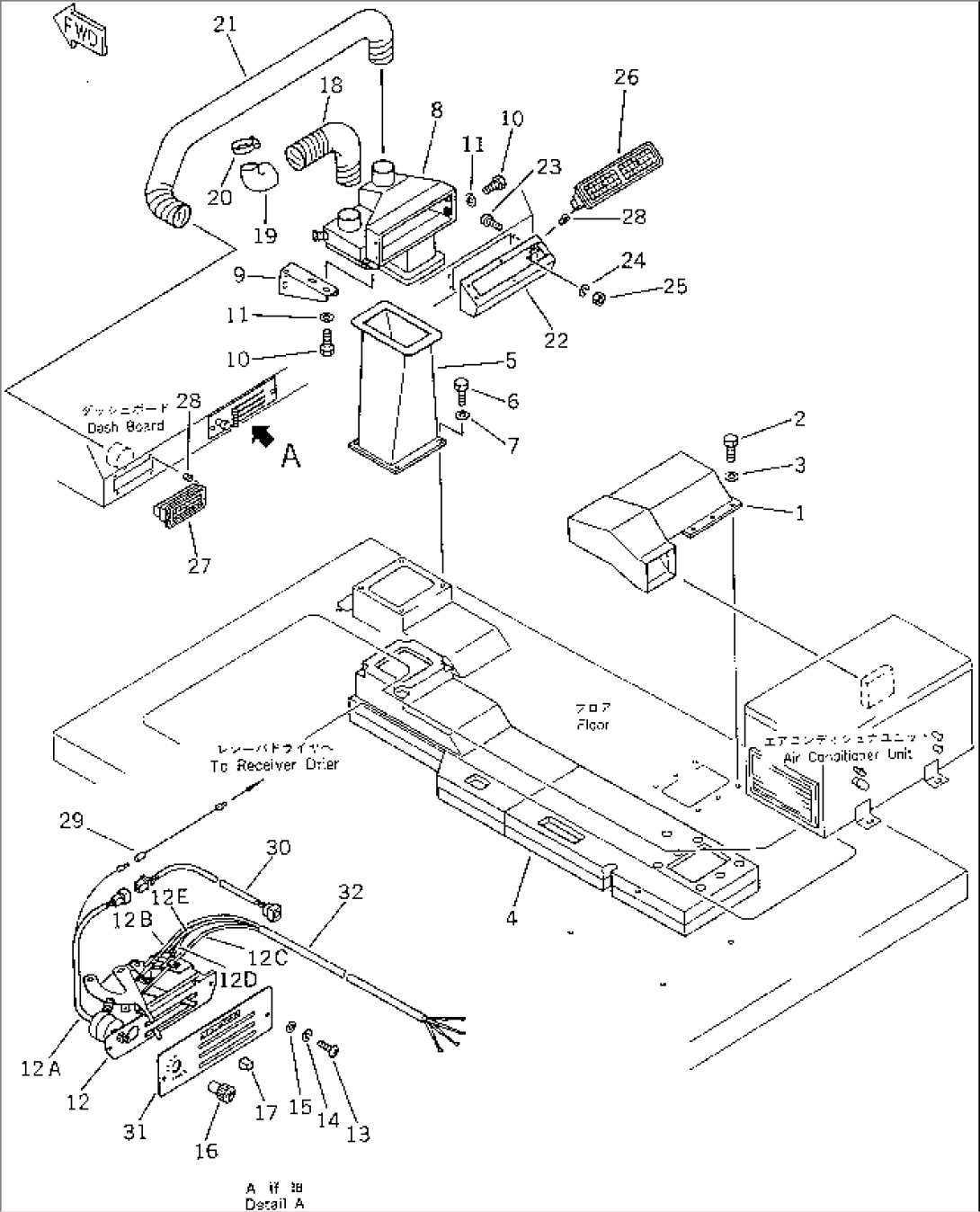

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-07-41133 | DUCT,AIR | 2001-@ | |
| 2 | 01010-50820 | BOLT | 2001-@ | |
| 3 | 01643-30823 | WASHER | 2001-@ | |
| 4 | 566-07-41561 | DUCT,AIR | 2001-@ | |
| 5 | 566-07-41151 | DUCT,AIR | 2001-@ | |
| 6 | 01010-50816 | BOLT | 2001-@ | |
| 7 | 01643-30823 | WASHER | 2001-@ | |
| 8 | 566-07-41160 | DUCT ASS'Y | 2001-@ | |
| 9 | 566-07-41170 | BRACKET | 2001-@ | |
| 10 | 01010-50816 | BOLT | 2001-@ | |
| 11 | 01643-30823 | WASHER | 2001-@ | |
| 12 | 566-07-41181 | LEVER ASS'Y | 2001-2050 | |
| 12A | 566-07-41820 | SWITCH,(RECIRC-FRESH) | 2001-@ | |
| 12B | 566-07-41830 | CABLE,(HOT-COLD) | 2001-@ | |
| 12C | 566-07-41840 | CABLE,(DEF-FOOT) | 2001-@ | |
| 12D | 566-07-41850 | CABLE,(FACE-FOOT) | 2001-@ | |
| 12E | 566-07-41860 | CABLE | 2001-@ | |
| 13 | 01220-40616 | SCREW | 2001-@ | |
| 14 | 01602-20619 | WASHER,SPRING | 2001-@ | |
| 15 | 01641-20608 | WASHER | 2001-@ | |
| 16 | 566-07-41220 | KNOB | 2001-@ | |
| 17 | 566-07-41210 | KNOB | 2001-@ | |
| 18 | 566-07-41250 | HOSE,AIR | 2001-@ | |
| 19 | 566-54-43480 | HOSE,AIR | 2001-@ | |
| 20 | 07280-04726 | CLAMP | 2001-@ | |
| 21 | 566-07-41260 | HOSE,AIR | 2001-@ | |
| 22 | 566-07-41810 | DUCT,AIR | 2001-2050 | |
| 23 | 01220-40408 | SCREW | 2001-2050 | |
| 24 | 01601-20410 | WASHER,SPRING | 2001-2050 | |
| 25 | 01580-10403 | NUT | 2001-2050 | |
| 26 | 566-07-41230 | GRILLE ASS'Y | 2001-@ | |
| 27 | 566-07-41240 | GRILLE ASS'Y | 2001-@ | |
| 28 | 566-07-41290 | NUT,PUSH | 2001-@ | |
| 29 | 566-07-41280 | WIRE | 2001-@ | |
| 30 | 566-07-41270 | WIRING HARNESS | 2001-@ | |
| 31 | 566-07-41191 | PLATE, NAME | 2001-@ | |
| 32 | 07822-00807 | TUBE | 2001-@ |
