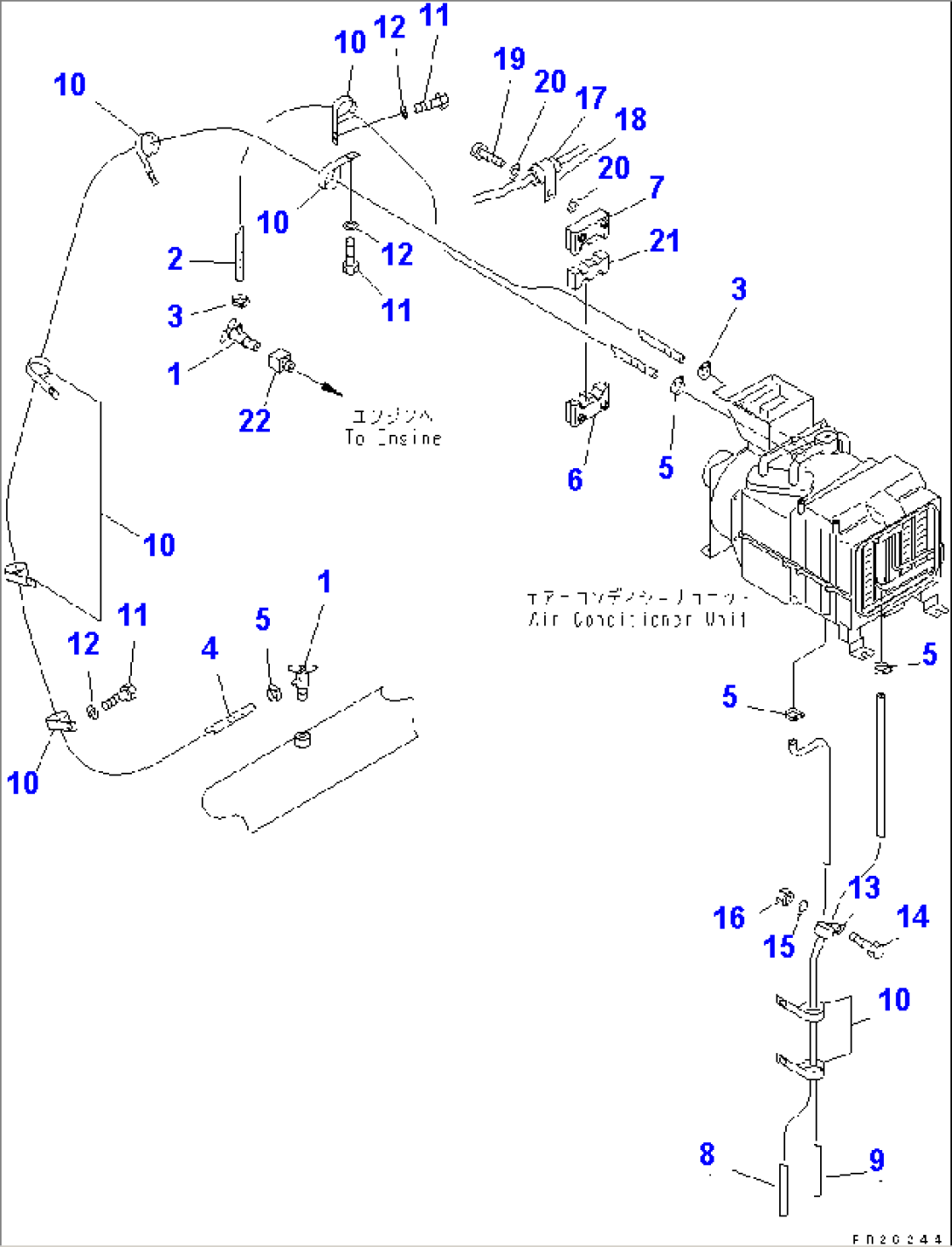

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09482-30000 | VALVE | 1013- | |
| 2 | 09483-40512 | HOSE | 1013- | |
| 3 | 07281-00259 | CLAMP | 1001- | |
| 4 | 09483-40529 | HOSE | 1013- | |
| 5 | 07281-00259 | CLAMP | 1001- | |
| 6 | 569-07-61551 | CLAMP | 1013- | |
| 7 | 569-07-61541 | CLAMP | 1013- | |
| 8 | 569-07-63430 | TUBE | 1013- | |
| 9 | 569-07-63440 | TUBE | 1013- | |
| 10 | 08036-02514 | CLIP | 1001- | |
| 11 | 01010-51016 | BOLT | 1001- | |
| 12 | 01643-31032 | WASHER | 1001- | |
| 13 | 08036-02514 | CLIP | 1001- | |
| 14 | 01010-51020 | BOLT | 1001- | |
| 15 | 01643-31032 | WASHER | 1001- | |
| 16 | 01580-11008 | NUT | 1001- | |
| 17 | 566-06-41290 | INSULATOR | 1001- | |
| 18 | 08036-02514 | CLIP | 1001- | |
| 19 | 01010-81045 | BOLT | 1013- | |
| 20 | 01643-31032 | WASHER | 1013- | |
| 21 | 569-07-62550 | CLAMP | 1013- | |
| 22 | 569-07-63340 | ADAPTER | 1013- |
