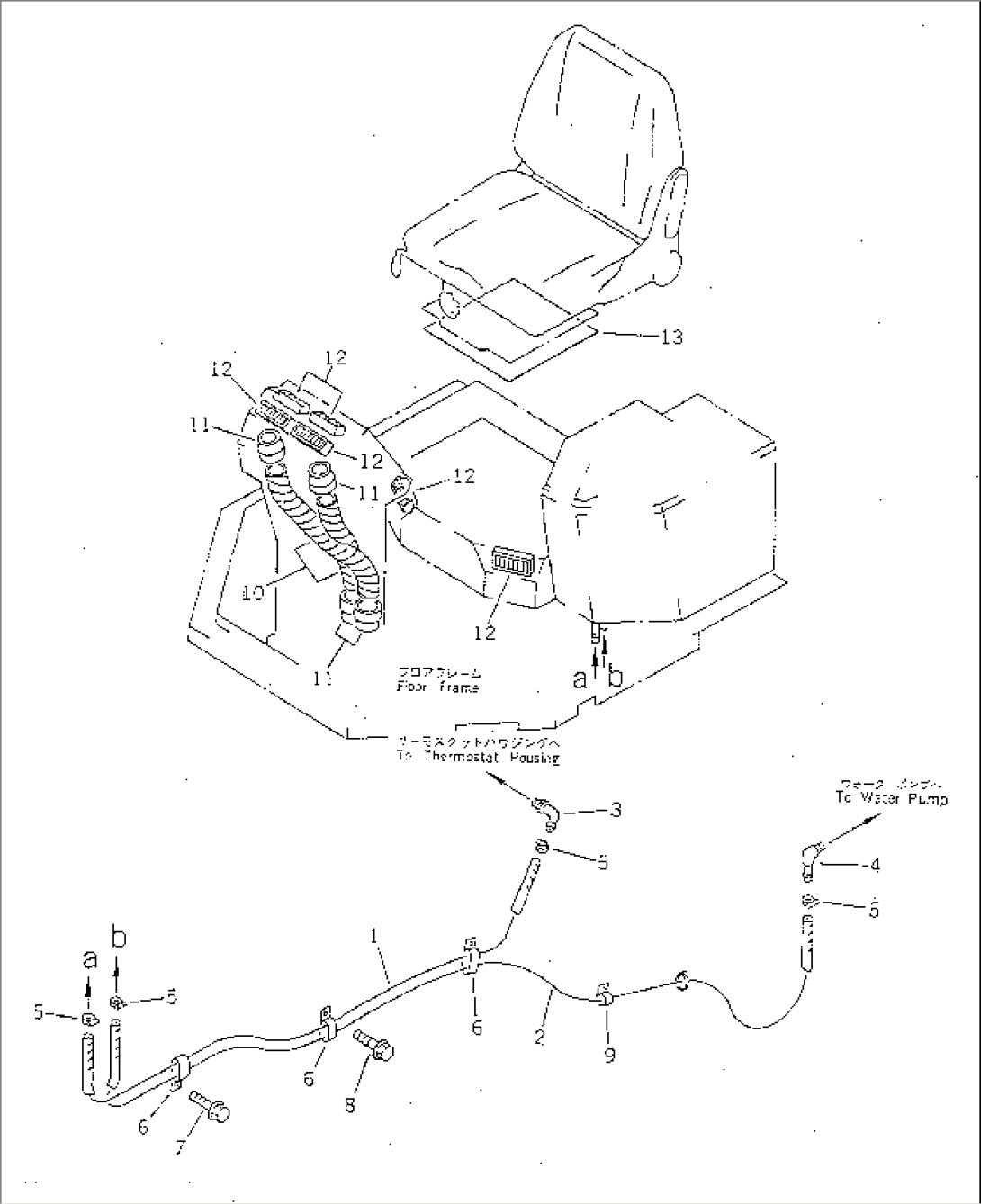

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09483-10519 | HOSE | 20001- | |
| 2 | 09483-10531 | HOSE | 20001- | |
| 3 | 421-07-11890 | ELBOW | 20001- | |
| 4 | 6137-81-3221 | ELBOW | 20001- | |
| 5 | 07280-02523 | CLAMP | 20923- | |
| 6 | 421-07-11550 | CLIP | 20001- | |
| 7 | 01435-01020 | BOLT | 20001- | |
| 8 | 01435-01014 | BOLT | 20001- | |
| 9 | 08036-02514 | CLIP | 20001- | |
| 10 | 421-07-12831 | HOSE | 20001- | |
| 11 | 421-07-12810 | CONNECTOR | 20001- | |
| 12 | 421-07-23870 | GRILLE | .- | |
| 13 | 423-07-11110 | INSULATOR | 20001- |
