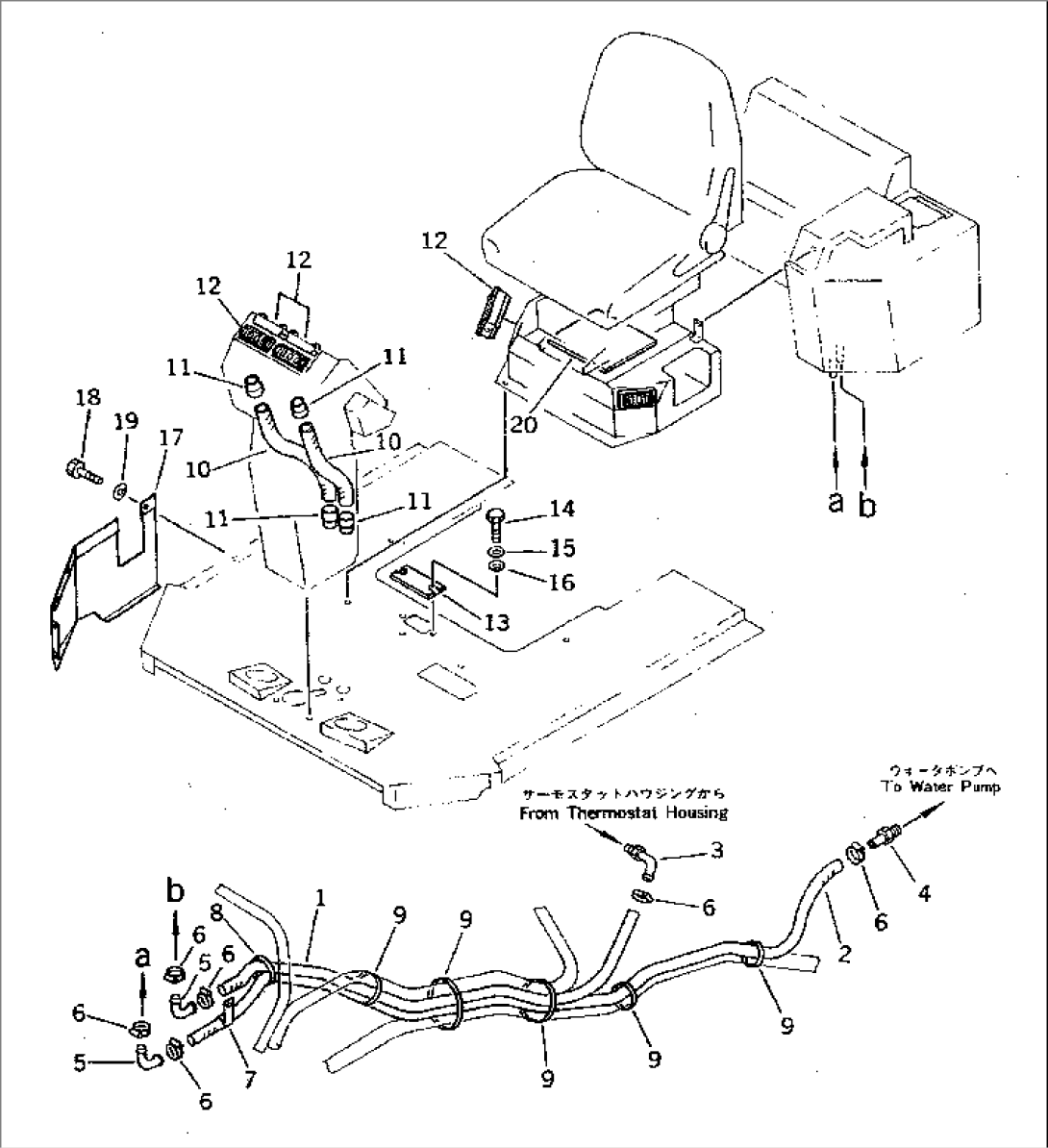

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09483-10520 | HOSE | 10535-19999 | |
| 2 | 09483-10538 | HOSE | .-19999 | |
| 09483-10539 | HOSE | 10001-. | ||
| 3 | 421-07-11890 | ELBOW | 10535-@ | |
| 4 | 424-07-11370 | TUBE | 10535-19999 | |
| 5 | 425-07-12140 | ELBOW | 10535-19999 | |
| 6 | 07281-00289 | CLAMP | 10535-19999 | |
| 7 | 425-07-12170 | CLIP | 10535-19999 | |
| 8 | 08034-00536 | BAND | 10535-19999 | |
| 9 | 08034-00834 | BAND | 10535-19999 | |
| 10 | 421-07-12831 | HOSE | 10535-@ | |
| 11 | 421-07-12810 | CONNECTOR | 10535-@ | |
| 12 | 421-07-12512 | GRILLE ASS'Y | 10535-@ | |
| 13 | 425-54-12190 | COVER | 10535-19999 | |
| 14 | 01010-50625 | BOLT | 10535-19999 | |
| 15 | 01643-30623 | WASHER | 10535-19999 | |
| 16 | 01643-31032 | WASHER | 10535-19999 | |
| 17 | 425-54-12442 | COVER | 10535-19999 | |
| 18 | 01010-51225 | BOLT | 10535-19999 | |
| 19 | 01643-31232 | WASHER | 10535-19999 | |
| 20 | 423-07-11110 | INSULATOR | 10535-@ |
