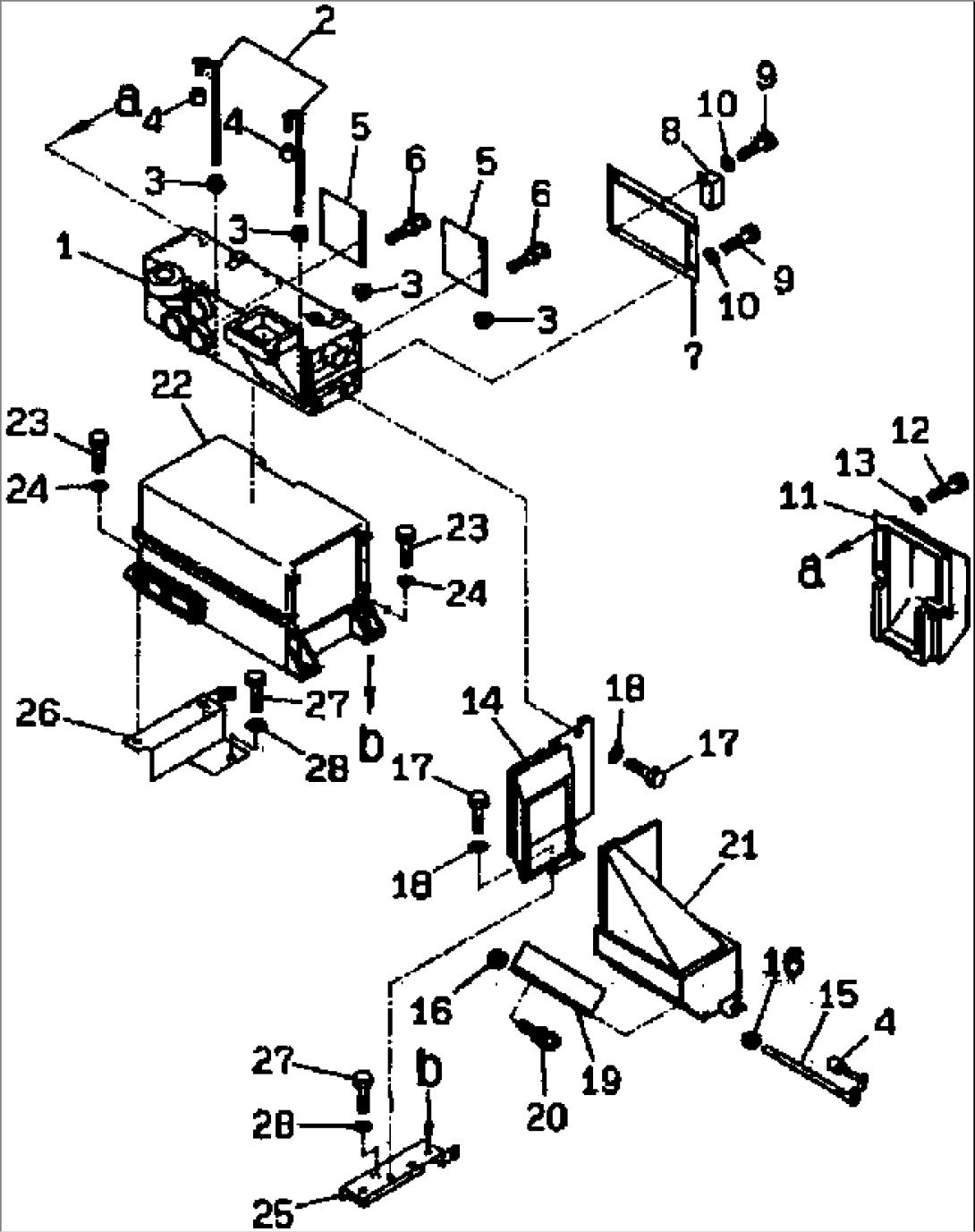

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-07-61131 | BOX | 1001-1012 | |
| 2 | 569-07-61270 | SHAFT | 1001-1012 | |
| 3 | 569-07-61710 | BUSHING | 1001-1012 | |
| 4 | 195-979-4160 | BUSHING | 1001-1012 | |
| 5 | 569-07-61240 | DAMPER | 1001-1012 | |
| 6 | 01023-20408 | SCREW | 1001-1012 | |
| 7 | 569-07-61151 | COVER | 1001-1012 | |
| 8 | 425-963-1930 | RELAY | 1001-1012 | |
| 9 | 01010-50816 | BOLT | 1001-1012 | |
| 10 | 01643-30823 | WASHER | 1001-1012 | |
| 11 | 569-07-61141 | DUCT | 1001-1012 | |
| 12 | 01010-50816 | BOLT | 1001-1012 | |
| 13 | 01643-30823 | WASHER | 1001-1012 | |
| 14 | 569-07-61161 | DUCT | 1001-1012 | |
| 15 | 569-07-61261 | SHAFT | 1001-1012 | |
| 16 | 569-07-61710 | BUSHING | 1001-1012 | |
| 17 | 01010-51020 | BOLT | 1001-1012 | |
| 18 | 01643-31032 | WASHER | 1001-1012 | |
| 19 | 569-07-61221 | DAMPER | 1001-1012 | |
| 20 | 01023-20408 | SCREW | 1001-1012 | |
| 21 | (569-54-64421) | DUCT | 1001-1012 | |
| 22 | 209-979-6371 | AIR CONDITIONER UNIT | 1001-1012 | |
| 23 | 01010-51020 | BOLT | 1001-1012 | |
| 24 | 01643-31032 | WASHER | 1001-1012 | |
| 25 | 569-07-61171 | BRACKET | 1001-1012 | |
| 26 | 569-07-61181 | BRACKET | 1001-1012 | |
| 27 | 01010-51220 | BOLT | 1001-1012 | |
| 28 | 01643-31232 | WASHER | 1001-1012 |
