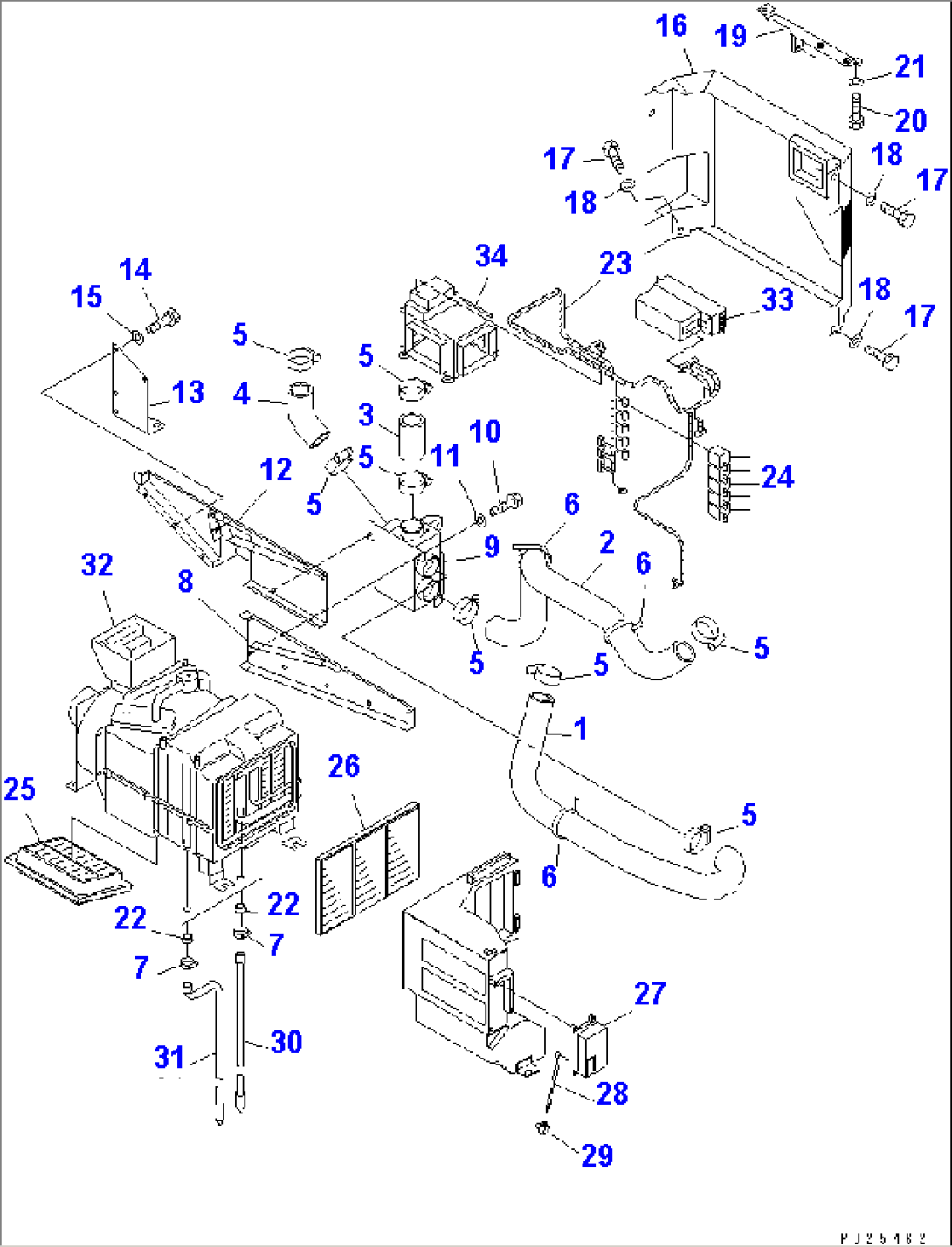

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-07-61692 | HOSE | 1013- | |
| 2 | 569-07-61751 | HOSE | 1013- | |
| 3 | 569-07-61741 | HOSE | 1013- | |
| 4 | 569-07-61682 | HOSE | 1013- | |
| 5 | 07281-00609 | CLAMP | 1013- | |
| 6 | 08034-20834 | BAND | 1013- | |
| 7 | 08034-20519 | BAND,HOSE | 1013- | |
| 8 | 569-54-63891 | DUCT,L.H. | 1013- | |
| 9 | 561-07-62161 | BOX | 1013- | |
| 10 | 01010-80840 | BOLT | 1013- | |
| 11 | 01643-30823 | WASHER | 1013- | |
| 12 | 569-54-65170 | DUCT | 1013- | |
| 13 | 561-07-62170 | DUCT | 1013- | |
| 14 | 01010-80816 | BOLT | 1013- | |
| 15 | 01643-30823 | WASHER | 1013- | |
| 16 | 569-07-61352 | COVER | 1013- | |
| 17 | 01010-81020 | BOLT | 1013- | |
| 18 | 01643-31032 | WASHER | 1013- | |
| 19 | 569-54-63690 | BRACKET | 1013- | |
| 20 | 01010-80816 | BOLT | 1013- | |
| 21 | 01643-30823 | WASHER | 1013- | |
| 22 | 421-09-21380 | GROMMET | 1013- | |
| 561-07-61018 | AIR CONDITIONER KIT | 1013- | ||
| 23 | 561-07-61140 | WIRING HARNESS | 1013- | |
| 24 | 425-07-21160 | RELAY | 1013- | |
| 25 | 569-07-61190 | ELEMENT | 1013- | |
| 26 | 561-07-61160 | ELEMENT,A/C | 1013- | |
| 27 | 561-07-61130 | MOTOR | 1013- | |
| 28 | 561-07-61220 | SHAFT | 1013- | |
| 29 | 561-07-61230 | CLAMP | 1013- | |
| 30 | 561-07-61170 | HOSE,DRAIN | 1013- | |
| 31 | 561-07-61180 | HOSE,DRAIN | 1013- | |
| 32 | (561-07-61103) | AIR CONDITIONER | 1013- | |
| 33 | 567-07-73621 | CONTROLLER | 1013- | |
| 34 | 423-S61-2132 | DUCT AIR ASS'Y | 1013- |
