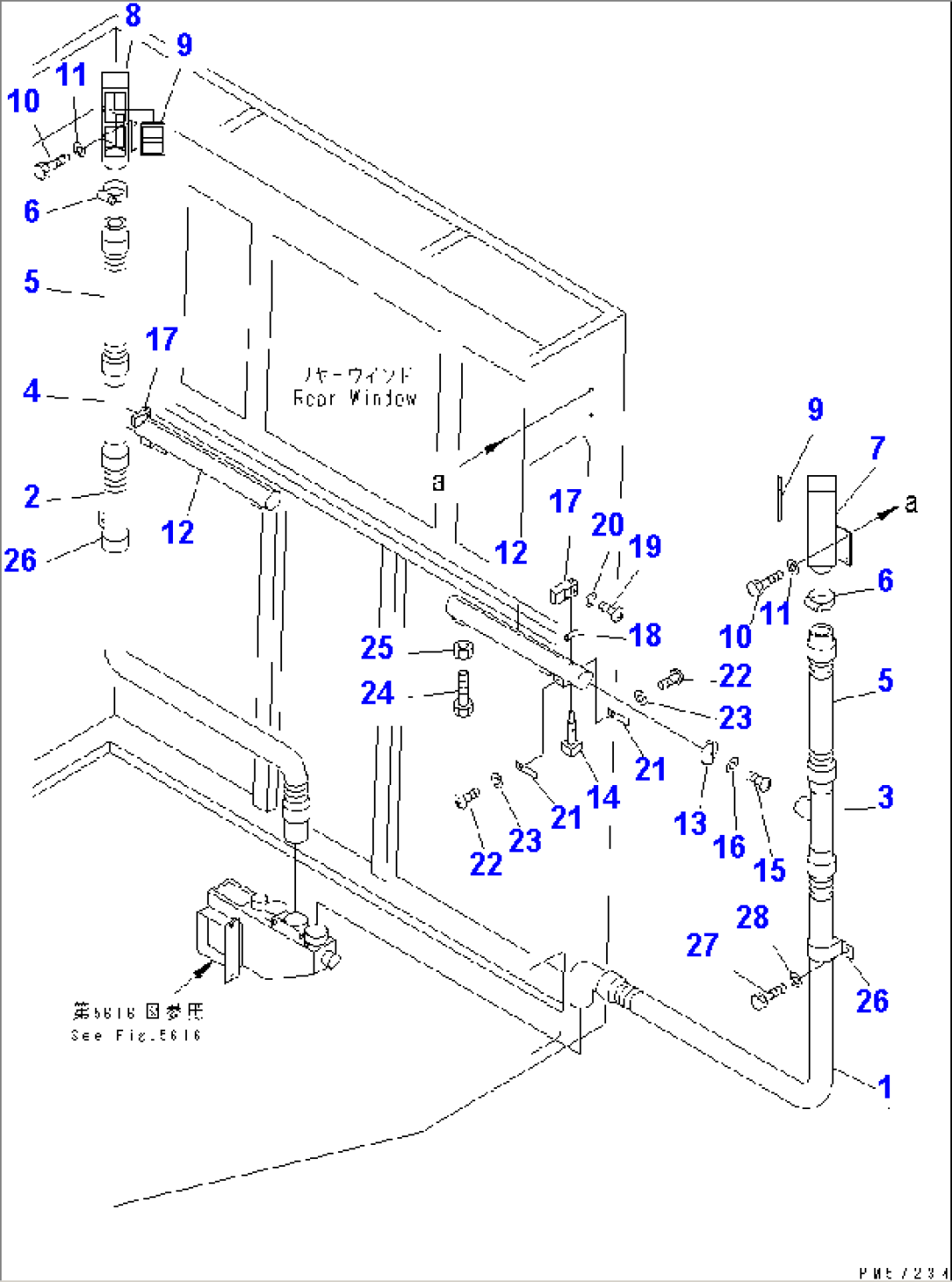

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23D-809-3460 | HOSE | 4630-4650 | |
| 2 | 09485-06513 | HOSE | 4630-4650 | |
| 3 | 23E-809-1410 | PIPE | 4630-4650 | |
| 4 | 23E-809-1350 | PIPE | 4630-4650 | |
| 5 | 23E-809-1330 | HOSE | 4630-4650 | |
| 6 | 07281-00709 | CLAMP | 4630-4650 | |
| 7 | 23D-809-3440 | BOX,L.H. | 4630-4650 | |
| 8 | 23D-809-3450 | BOX,R.H. | 4630-4650 | |
| 9 | 142-979-3221 | GRILLE ASS'Y | 4630-4650 | |
| 10 | 01010-50812 | BOLT | 4630-4650 | |
| 11 | 01643-30823 | WASHER | 4630-4650 | |
| 12 | 23B-807-1481 | PIPE | 4630-4650 | |
| 13 | 23B-807-1510 | PLATE | 4630-4650 | |
| 14 | 23B-807-1490 | SHAFT | 4630-4650 | |
| 15 | 01220-40308 | SCREW | 4630-4650 | |
| 16 | 01601-20307 | WASHER,SPRING | 4630-4650 | |
| 17 | 23B-950-2230 | KNOB | 4630-4650 | |
| 18 | 04025-00312 | PIN,SPRING | 4630-4650 | |
| 19 | 01220-40308 | SCREW | 4630-4650 | |
| 20 | 01601-20307 | WASHER,SPRING | 4630-4650 | |
| 21 | 23B-950-2240 | SPRING | 4630-4650 | |
| 22 | 01220-40508 | SCREW | 4630-4650 | |
| 23 | 01601-20513 | WASHER,SPRING | 4630-4650 | |
| 24 | 01010-50820 | BOLT | 4630-4650 | |
| 25 | 01580-10806 | NUT | 4630-4650 | |
| 26 | 232-809-4850 | CLIP | 4630-4650 | |
| 27 | 01010-51016 | BOLT | 4630-4650 | |
| 28 | 01643-31032 | WASHER | 4630-4650 |
