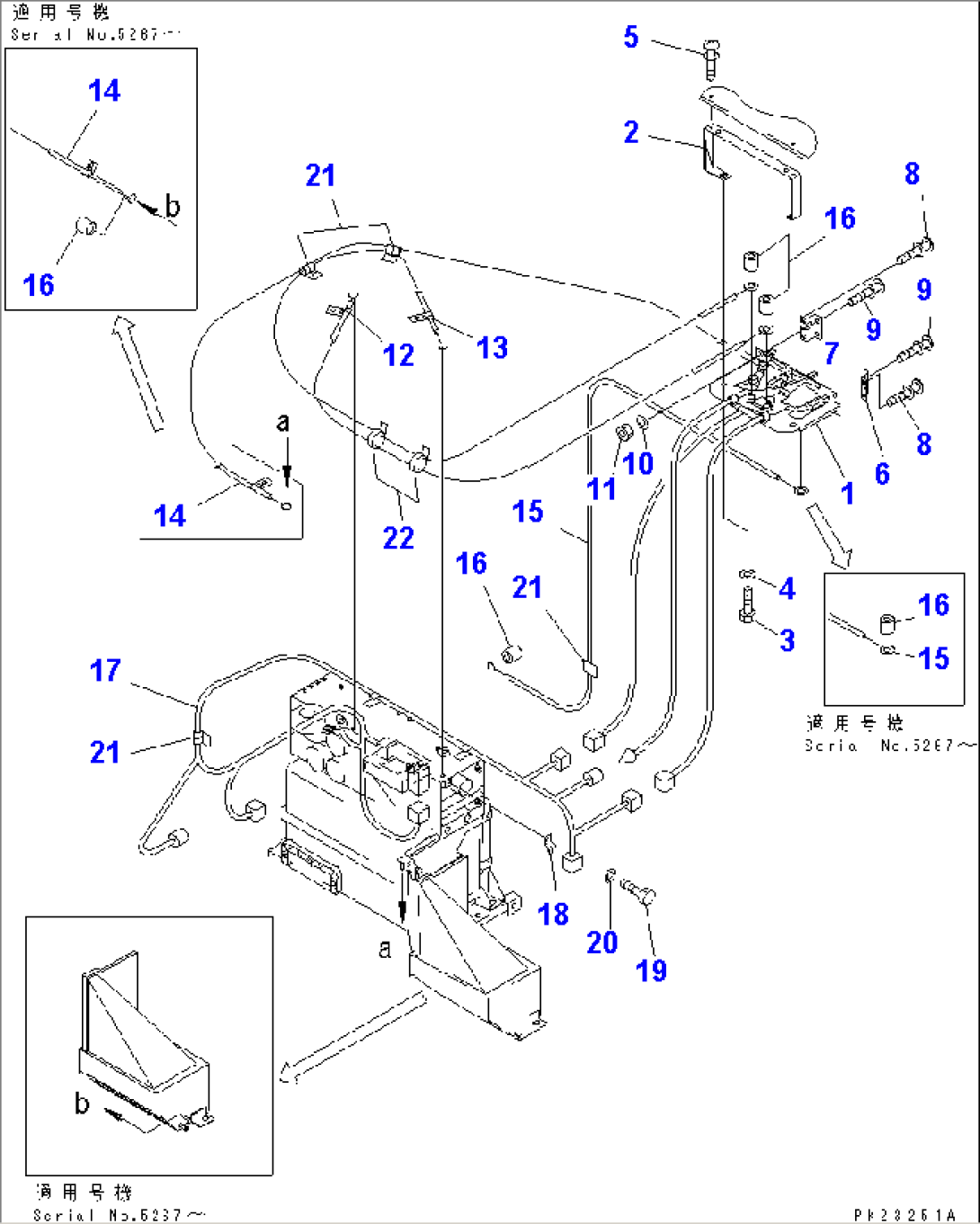

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (569-07-61732) | CONTROL LEVER ASS'Y | 5267-5679 | |
| 1 | (569-07-61731) | CONTROL LEVER ASS'Y | 5001-5266 | |
| 2 | 569-07-61430 | BRACKET | 5001-5679 | |
| 3 | 01010-50616 | BOLT | 5001-5679 | |
| 4 | 01643-30623 | WASHER | 5001-5679 | |
| 5 | 01023-20616 | SCREW | 5001-5679 | |
| 6 | 569-07-61440 | BRACKET | 5001-5679 | |
| 7 | 569-07-61450 | BRACKET | 5001-5679 | |
| 8 | 01023-20616 | SCREW | 5001-5679 | |
| 9 | 01023-20516 | SCREW | 5001-5679 | |
| 10 | 01641-20508 | WASHER | 5001-5679 | |
| 11 | 01580-10504 | NUT | 5001-5679 | |
| 12 | 569-07-61311 | CABLE,(VENT-HEAT-DEF) | 5001-5679 | |
| 12 | (\2\569-07-61310) | CABLE,(VENT-HEAT-DEF) | (5001-.) | |
| 13 | 569-07-61321 | CABLE,(HEAT-DEF) | 5001-5679 | |
| 13 | (\2\569-07-61320) | CABLE,(HEAT-DEF) | (5001-.) | |
| 14 | 569-07-61560 | CABLE ASS'Y,(RECIRC-FRESH) | 5267-5679 | |
| 14 | 569-07-61321 | CABLE,(RECIRC-FRESH) | 5001-5266 | |
| 15 | 569-07-61330 | CABLE,(HEAT-DEF) | 5001-5679 | |
| 16 | 195-979-4160 | BUSHING | 5267-5679 | |
| 16 | 195-979-4160 | BUSHING | 5001-5266 | |
| 17 | 569-07-61341 | WIRING HARNESS,(WARM-COOL) | 5001-5679 | |
| 18 | 08053-01512 | CLIP | 5001-5679 | |
| 19 | 01010-51016 | BOLT | 5001-5679 | |
| 20 | 01643-31032 | WASHER | 5001-5679 | |
| 21 | 566-06-16910 | STICKER | 5001-5679 | |
| 22 | 08034-10310 | BAND | 5001-5679 |
